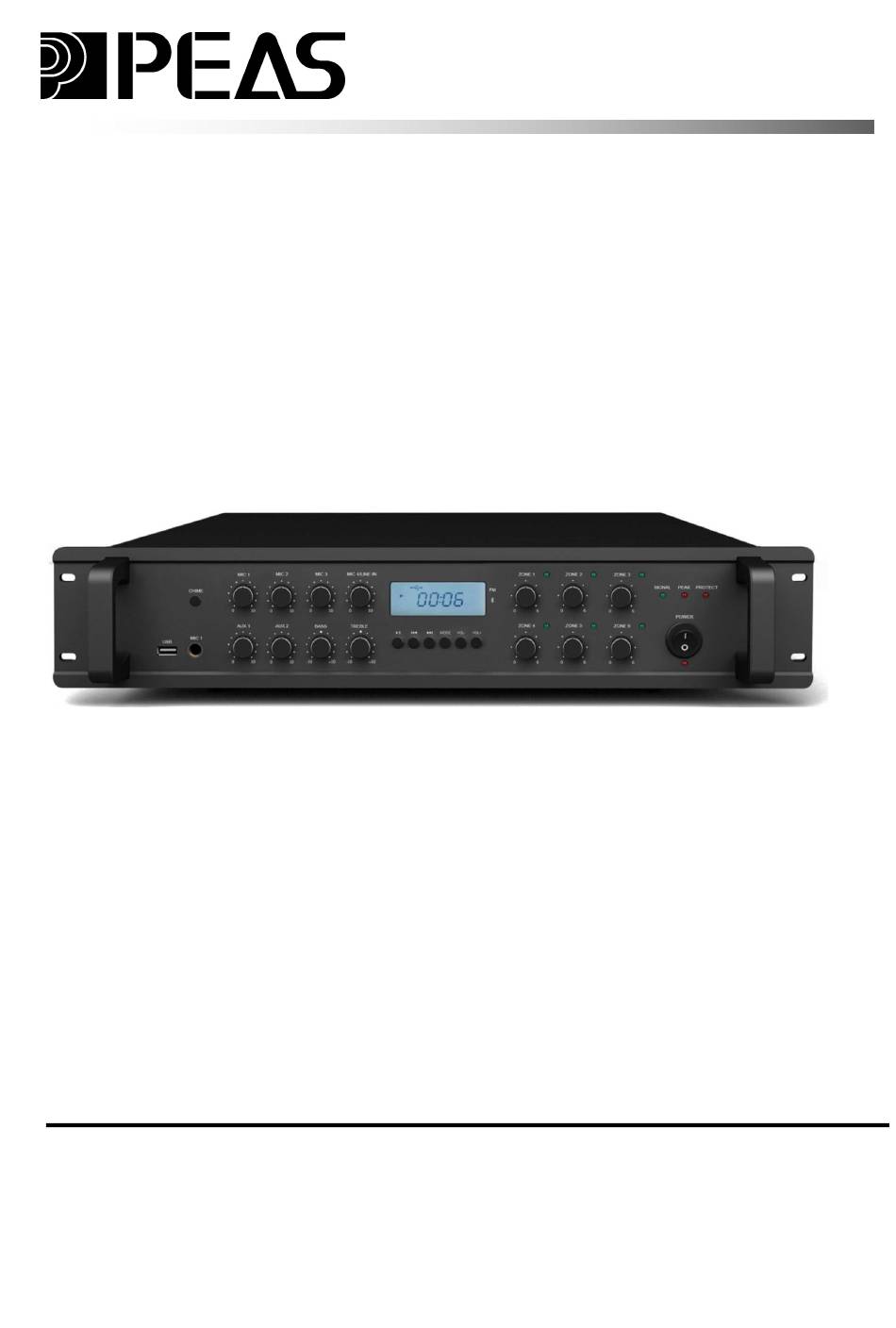

- Page 1 Public Address System MA-612P Mixer Amplifier User Manual Thank you for using our public address system. Please read this User Manual carefully to make better use of this equipment.
-
Page 3: Matters Needing Attention
Matters needing attention Please read the following before operating the product. Warning The following basic requirements must be strictly observed, to avoid potential personal injury and equipment or property damages to you or any person nearby. The basic requirements include without limitation to the following: Power source/power cable When abnormal conditions are realized •... -
Page 4: Description Of Product
1. Description of Product Features LCD display screen,easy to operation 4 audio sources mode selection：AUX/BLUETOOTH/USB/FM 2 XLR balance MIC with individual adjustment Bass and treble tone control for better sound quality control Priority：EMC>MIC1>others Ultra high performance, wide frequency response, low noise and distortion ... -
Page 5: Description Of Appearance
2. Description of Appearance Description of front panel 14. Zone 6 volume adjustmentbutton Chime button volume control 15. Zone 5 volume adjustmentbutton MIC 1 volume control 16. Zone 4 volume adjustmentbutton MIC 2 volume control Volume+/volume- MIC 3 volume control 18. -
Page 6: Description Of Rear Panel
Description of rear panel Resistance output 12. MIC 2 with phantom power indicator interface 13. Fan Exhaust Window FM Antena 14. BGM volume control MIC 4 interface 15. Volume contrl Line input/Mic4/ Phantom of emergency input power switching 16. 100V emergency signal input MIC 4 with phantom 17. -
Page 7: Connection Diagram
3.Connection Diagram... -
Page 8: Safety Precautions
For issues and precautions not mentioned in this User Manual, if required, please contact the distributor or visit our website at www.peas-pa.com In case of any failure in the warranty period, please contact service personnel (or distributor) of our ... -
Page 9: Specification
Input LINE IN:300mV±30mV (balance input ） EMC IN:100V input Output AUX OUT:1.0V±100mV (unbalanced output by RCA） bass:±10dB±2dB@100Hz Tone treble:±10dB±2dB@10KHz Bluetooth Bluetooth name:PEAS password:1234 Available Priority EMC＞MIC 1＞other Mute function signal with 0~-∞dB attenuation except EMC ,MIC1 Unit dimension 470x338x88mm (L x W x H) -
Page 10: Packing List
Packing List Category Audio cable Power cable User’s Manual Warranty Card Inspection certificate Plastic terminal Caution ● The device is not completely disconnected from power source when it is switched "OFF". For sake of safety, please disconnect the device from the socket if it is not in use. ●...
