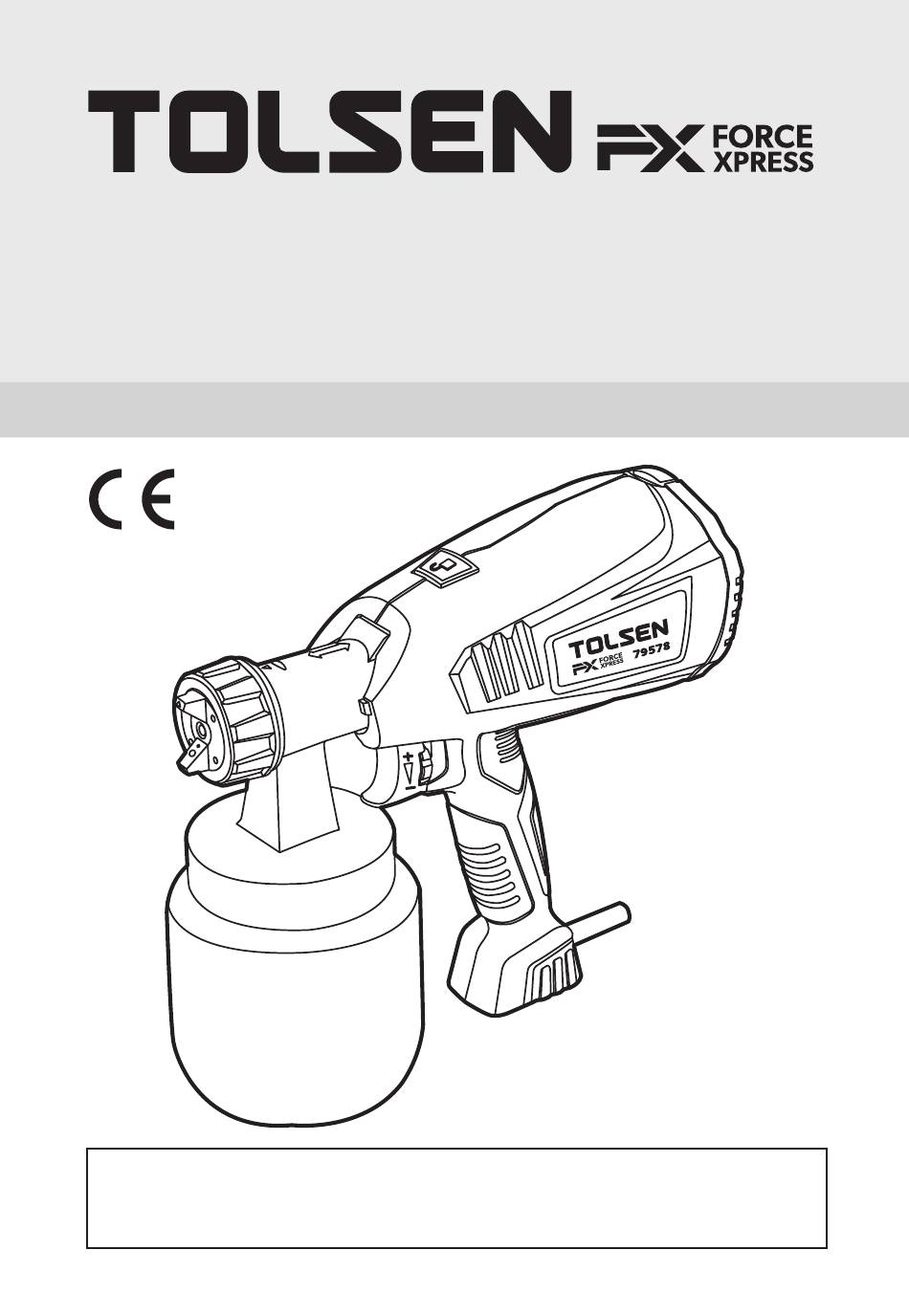

- Page 1 79578 HVLP HAND HELD SPRAY GUN INSTRUCTION MANUAL 400W SAVE THIS MANUAL ! You will need this manual for safety instructions, operating procedures and warranty. Put it and the original sales receipt in a safe dry place for future reference.
-
Page 2: Important Safety Information
SAFETY IMPORTANT SAFETY INFORMATION Instructions pertaining to a risk of fire, electric shock, or injury to persons the warnings and precautions discussed in this manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator. -
Page 3: Personal Safety
SAFETY Personal safety 1. Stay alert. Watch what you are doing and use common sense when operating the tool. Do not use the tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating the tool increases the risk of injury to persons. -
Page 4: Specific Safety Instructions
9. Maintain labels and nameplates on the tool. These carry important safety information. If unreadable or missing, contact Tolsen Tools for a replacement. 10. Avoid unintentional starting. Prepare to begin work before turning on the tool. 11. Do not leave the tool unattended when it is plugged into an electrical outlet. Turn off the tool, and unplug it from its electrical outlet before leaving. -
Page 5: Specifications
SPECIFICATIONS AND SETUP SPECIFICATIONS AND SETUP NOTE! Clean the Spray Gun IMMEDIATELY a er EVERY use. Delayed or inadequate cleaning will permanently clog the Spray Gun. Latex paint hardens quickly and permanently inside Spray Gun. Specifications Electrical Rating 220-240V~50/60Hz, 400W Cup Capacity 800ml Max. - Page 6 SETUP Assembly 1. Line up arrow on Spray Gun Body to arrow on Air Compressor. Unlock button 2. Push Spray Gun Body forward until it clicks to attach Air Compress and Spray Gun Body together Suction Tube position Normal Spraying - Suction Tube angled forward. Suction tube Upward Spraying - Suction Tube angled backward.
- Page 7 OPERATING INSTRUCTIONS Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Inspect tool before use, looking for damaged, loose, and missing parts. If any problems are found, do not use tool until repaired.
- Page 8 OPERATING INSTRUCTIONS Note: Proper material mixture is essential. Follow the manufacturer’s directions for thinning instructions. Most materials will spray easily if they are thinned properly. 5. If necessary, thin the material according to manufacturer’s directions and mix thoroughly. 6. Check viscosity. Thin and check until proper viscosity is achieved. 7.
-
Page 9: Spraying Technique
OPERATING INSTRUCTIONS Spraying Technique IMPORTANT Proper spraying technique is ESSENTIAL to achieve good results. 1. Keep the Spray Gun upright and at a right angle to the workpiece - See Figure B. Move your arm, not just your wrist. Point gun directly towards the surface and maintain an even, steady distance and speed. -
Page 10: Solvent Selection
OPERATING INSTRUCTIONS Cleaning RISK OF EXPLOSION - DO NOT SPRAY FLAMMABLE LIQUIDS. a. Follow solvent manufacturer’s clean up instructions and safety precautions. b. If collecting flushed solvents in metal container, transfer to nonmetal container, and flush metal container. c. Work far away from any ignition sources in a vapor free area. d. -
Page 11: User Maintenance Instructions
OPERATING INSTRUCTIONS Spent Solvent Disposal A er cleaning, dispose of spent solvent according to the solvent manufacturer’s directions and local hazardous waste standards. User-Maintenance Instructions Procedures not specifically explained in this manual must be performed only by a qualified technician. TO PREVENT SERIOUS INJURY: Detach the air supply and safely discharge any residual air pressure in the tool before performing any inspection, maintenance, or cleaning procedures. -
Page 12: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING Troubleshooting - Spray pattern Diagnosis Note: The drawings on the le below resemble symptoms of spray pattern problems. Refer to the accompanying possible causes and likely solutions to the right. problem possible causes Likely Solutions 1. Fluid Control Knob needs 1. -
Page 13: Troubleshooti
TROUBLESHOOTI General Troubleshooting Chart problem possible causes Likely Solutions Sputtering Spray 1. Low paint level. 1. Refill. 2. Cup tipped. 2. Hold upright. 3. Cup and/or Lid loose. 3. Tighten Cup and/or Lid. 4. Clogged Check Valve. 4. Clean Check Valve. Will Not Spray 1. -
Page 14: Ce Declaration Of Conformity
CE DECLARATION OF CONFORMITY SUZHOU TOLSEN TOOLS CO.,LTD. No.198, Huashan Road, Jinfeng Town,Zhangjiagang City, Jiangsu Province, China Declare that the product 79578 Electric Spray Gun(JS-HH15A) 220-240V,50Hz,400W,800ML Serial number: N/A Complies with the essential health and safety requirements of the following Directices:... - Page 15 SUZHOU TOLSEN TOOLS CO.,LTD. www.tolsentools.com TOLSEN is a trademark or registered trademark of TOLSEN TOOLS. All rights reserved. SCAN TO VISIT TolsenWorld MADE IN CHINA PRODUCT LINK...
