Sealey AK451X Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear protective
instruction gloves
manual
1. SAFETY
WARNING! DO NOT tamper with or open pump unit. To do so will invalidate your warranty.
‰
Maintain pump in good condition (use an authorised service agent).
9
DO NOT use if damaged, replace or repair damaged parts. Check the grease bucket to ensure it is not damaged. A damaged grease
8
bucket will cause the follower plate to jam.
Use recommended parts only. Non authorised parts may be dangerous and will invalidate the warranty.
9
Wear appropriate protective clothing. When handling lubricants refer to manufacturer's instructions and conform to local regulations.
9
Use the pump in an appropriate working area for its function. Keep area clean and tidy and free from unrelated materials and ensure
9
there is adequate lighting.
Keep hose away from heat, oil and sharp edges. Check air hose for wear before each use, and ensure that all connections are secure.
9
Maintain correct balance & footing. Ensure floor is not slippery, wear non slip shoes.
9
Keep children and unauthorised persons away from the working area.
9
Dispose of waste grease in accordance with local authority regulations.
9
When not in use, disconnect the unit. Clean the unit and store in a dry, safe, childproof location.
9
DO NOT allow unauthorised persons to operate the pump.
8
DO NOT point grease gun at yourself, other persons or animals.
8
DO NOT pull the grease pump unit by the hose.
8
DO NOT force the pump to achieve a task it was not designed to perform.
8
DO NOT operate the pump when you are tired, under the influence of alcohol, drugs or intoxicating medication.
8
2. INTRODUCTION
i
15kg bulk fill capacity ideal for frequent dispensing of large quantities of grease. 2.2m high pressure hose with extension and coupler.
Powerful 5000psi working pressure. Air valve for easy priming. Ideal for workshop, agriculture, machinery and automotive use.
3. SPECIFICATION
i
Model No
Delivery per Stroke
Delivery Pressure
Hose Length
Nett Weight
4. CONTENTS
Remove items from carton and identify pieces from fig.1 and contact
your Sealey stockist immediately if any pieces are missing or damaged.
1 Tank assembly
2 Trolley handle
3 Locking bolts for trolley handle
4 Short 30mm M8 pump handle bolt (front)
5 Long 38mm M8 pump handle bolt (rear)
6 Pump handle, secondry handle goes to the rear bolted with 38mm
M8
7 Grease hose (connector 22mm)
8 M8 nuts x2
5. ASSEMBLY
Identify parts from fig.1 and fig.2 and assemble. NOTE: The handle bolts are of different lengths so as to incorporate the second section handle.
© Jack Sealey Limited

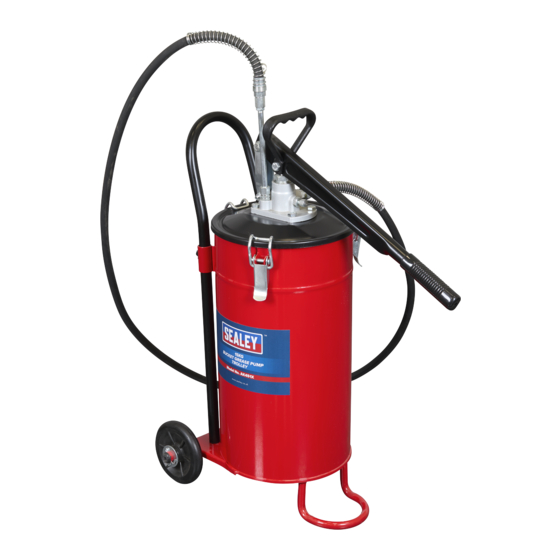

BUCKET GREASE PUMP TROLLEY 15KG
MODEL NO:
Wear eye Wear protective
protection clothing
AK451X
3cm³
5000psi
2.2m
9.42kg
Original Language Version
AK451X
7

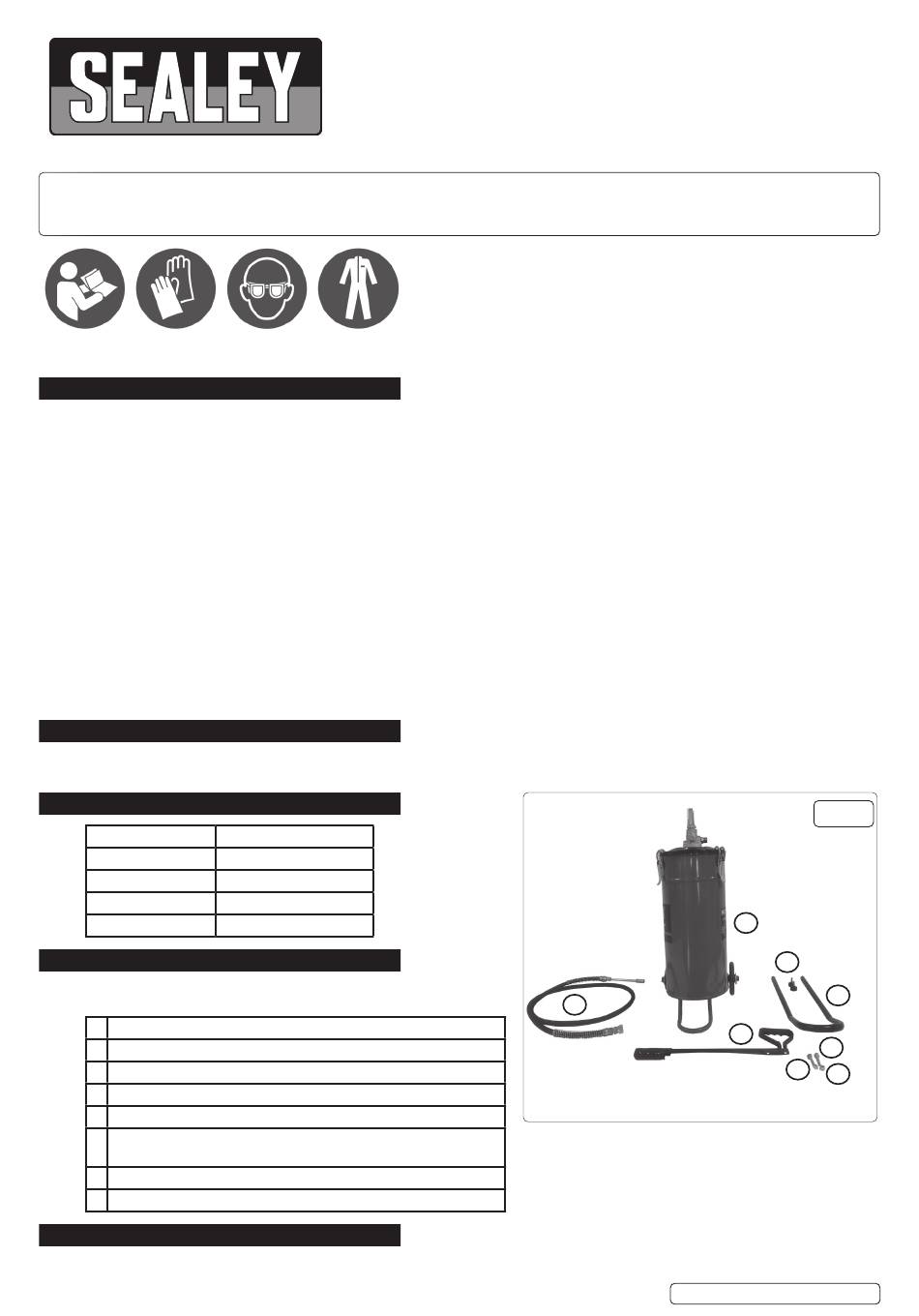

fig.1
1
3
2
6
5
4
8
AK451X Issue 1 30/10/24
