PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION
— To prevent personal injury or product damage only licensed electricians should install.
— To avoid electric shock or component damage, disconnect power before attempting installation or servicing.
— This product must be installed in accordance with the national electric code (NEC) and all applicable federal, state, and local electric codes and safety standards.
— Disconnect product and allow cooling prior to servicing.
— Any alteration or modification of this product is expressly forbidden as it may cause serious personal injury, death, property damage, and/or product malfunction.
— To prevent product malfunction an/or electrical shock this product must be properly grounded.
— This luminaire is designed to operate in ambient temperatures ranging from -40°F to 113 °F and to be horizontally mounted with the LEDs facing down.
— This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the
hazards involved.
— MIN 167°F (75°C) SUPPLY CONDUCTORS
— When configured with the emergency battery kit, the allowable ambient temperature is -50°F to 104 °F.

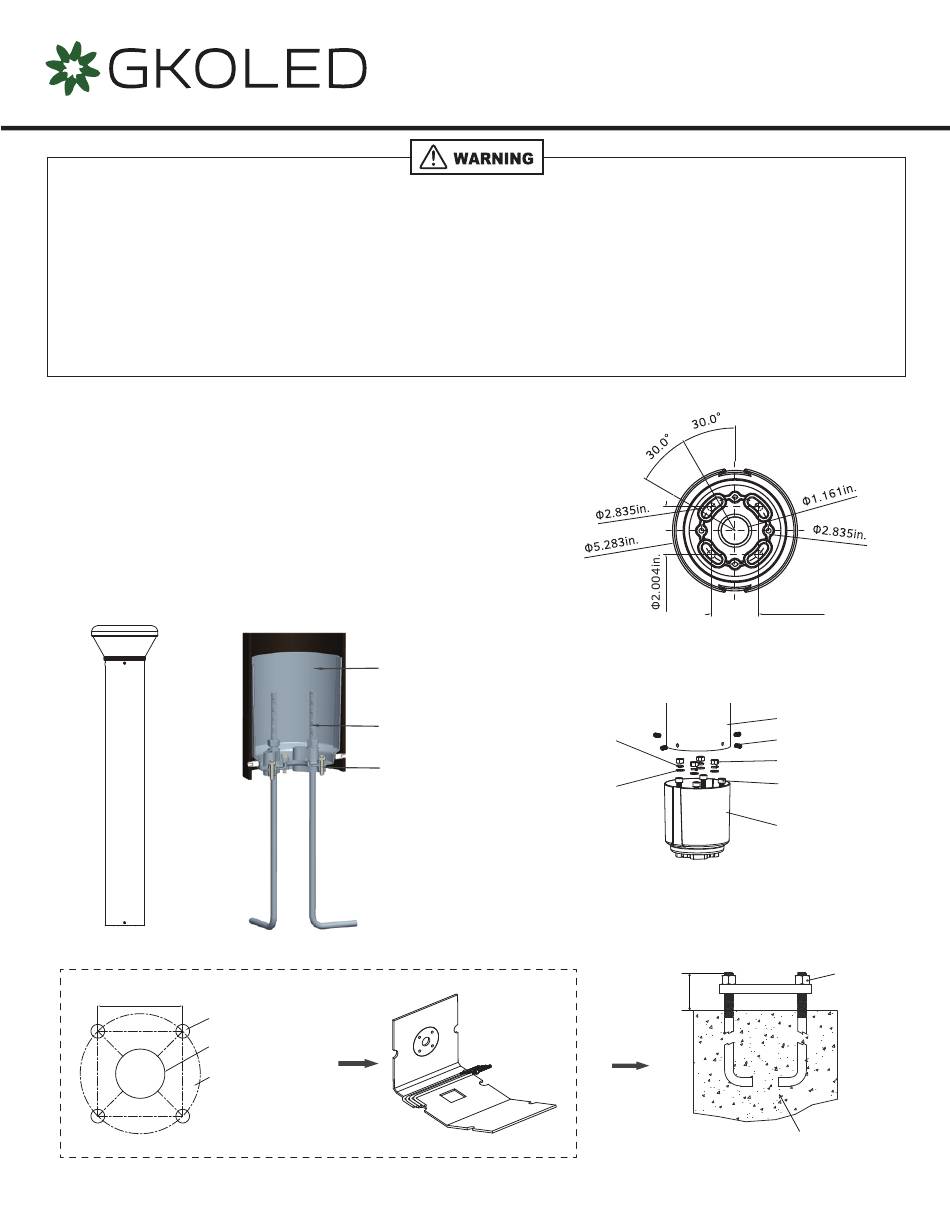

Installation Guide
1. Verify bolt circle diameter and anchor bolt projection and use anchor bolt template to
assure accuracy. Actual size anchor bolt template is on the last page of this guide.
2. Place the bollard base over the anchor bolts.
3.
Loosely tighten the provided washers and nuts. Tighten all nuts and screws.
4. Be sure the supply leads extend far enough to make fixture connections. Make wiring
connections as per the wiring diagram on the next page.
5. Slide the bollard into the bollard base, making sure position it properly in relation to
the indentations on the sides of the base.
6. Use the four M8x16 set screws to secure the bollard to the bollard base.
ROUND BOLLARD
2in.
Ø0.5in. (4pcs)
Ø1in.
(Wiring Access Hole)
OPEN
FOR
Ø3in. (Bolt Circle)
WIRING
LED BOLLARD LIGHT
®
Bollard Base
Anchor Bolt
1/4-18UNC
Leveling Screw
(Not Included)
Installation Guide
Anchor Bolt Template For LED Bollard
Lock Washer
Flat Washer
2.36in.
Concrete Foundation Base
Dimensions According To Local Codes
Φ2.004in.
Round Bollard
M8x16 Set Screws
M8-SS Nuts
Leveling Screws
(Not Included)
Bollard Base
M8 Nuts
GKO-V2-0525-US
