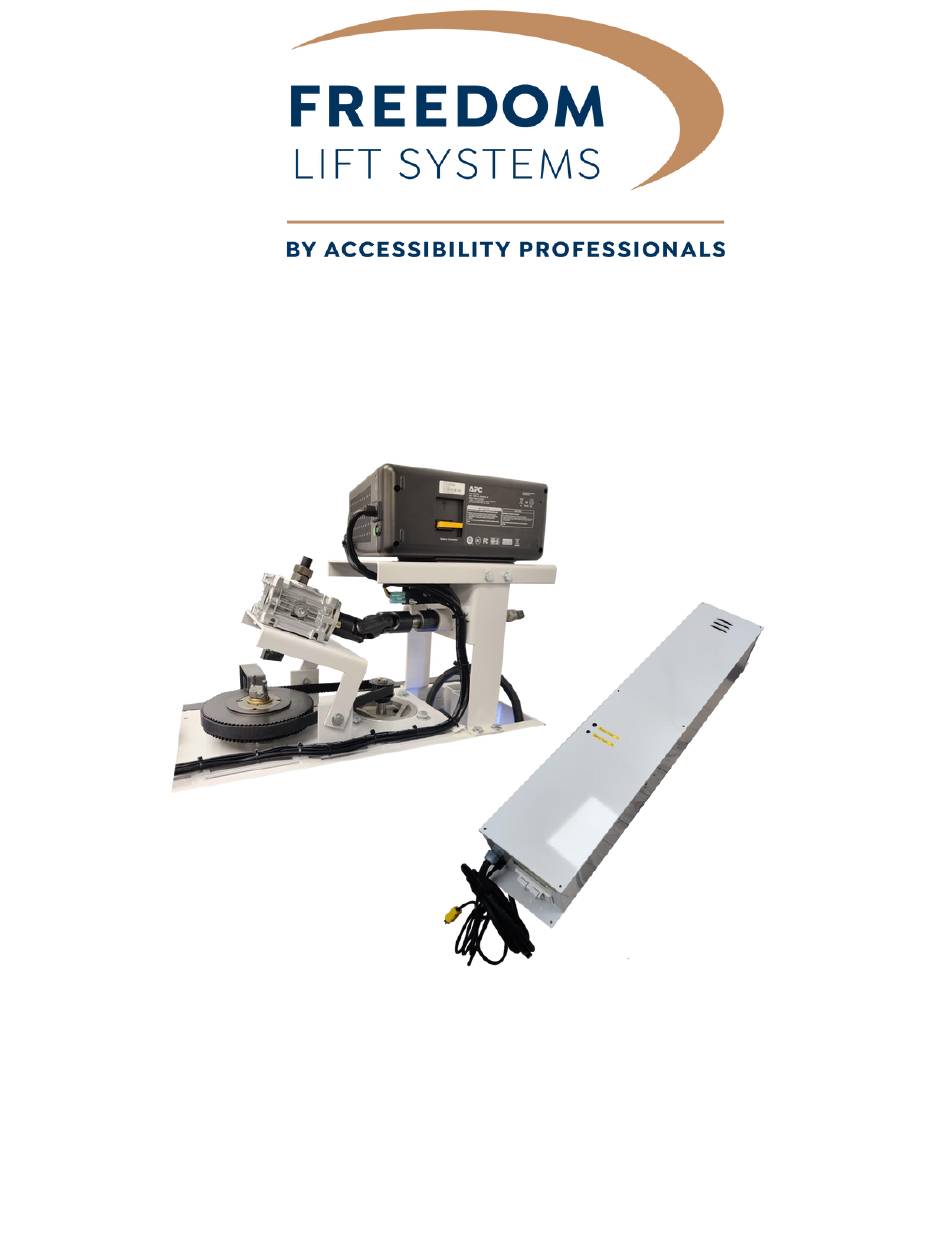

- Page 1 FREEDOM JOURNEY LIFTS EMERGENCY OPERATION DEVICES - MANUAL #3 Customer Support: 1.877.947.7769 Email: apsupport@accessibilitypro.com...
-
Page 2: Table Of Contents
Contents Section 1: Introduction............................1 Section 2: Safety Information ..........................1 2.1: Symbols and Definitions ........................... 2 2.2: Additional Symbols ............................2 2.3: Safety Notes ..............................2 Section 3: 90 Degree Manual Crank........................3 Section 4: Tower of Power ............................. 5 freedomliftsystems.com 1.877.947.7769... -
Page 3: Section 1: Introduction
Section 1 and 2: Introduction and Safety Information Section 1: Introduction This supplemental manual has been provided to walk you through the safe and efficient installation of the optional Tower of Power and 90 Degree Manual Crank. Please read this manual, as well as the main installation manual, thoroughly before installing and operating your lift. -
Page 4: Safety Notes
Section 2: Safety Information 2.3: Safety Notes Caution! Read all instructions thoroughly before installation or use of this lift. Failure to following the instructions in this manual and the associated manuals for testing and operation could result in serious injury or death. In addition, it will render Freedom Lift Systems’... -
Page 5: Section 3: 90 Degree Manual Crank
Section 3: 90 Degree Manual Crank Section 3: 90 Degree Manual Crank 90 degree manual cranking device that allow the lift to be cranked from the side without removing the top cover. The above figure shows the normal position of the 90 Degree Manual Crank, disengaged. While the figure only shows the manual crank access on the left, the side the crank is on is specified at the time of order. - Page 6 Section 3: 90 Degree Manual Crank 3) Push and hold the ratchet and extension into the manual crank’s engaged position, as shown in the below figure, and rotate the shaft clockwise to lower the lift, and counter- clockwise to raise the lift. 4) After the lift platform has reached the desired landing, rotate the shaft in the opposite direction approximately 5 times to relieve the load on the gearbox, and then retrieve the socket ratchet and extension to disengage the crank.
-
Page 7: Section 4: Tower Of Power
Section 4: Tower of Power Section 4: Tower of Power The Optional Tower of Power serves as a battery backup for the lift, supplying power to the unit when building power has been cut off or irregular. The Tower of Power does not come with batteries. - Page 8 Section 4: Tower of Power 4) Plug the TOP into the building supply power 5) Turn on the inverter switch located on the bottom side of inverter. 6) Wait 105 seconds, and battery power light should come on. Once you confirm that the tower is operating correctly, reinstall the front cover.
