Read the instructions in this manual before beginning installation. Save these instructions and
refer to them for inspection, maintenance, and troubleshooting information.
P20-249 Rev. D: ECO 25-15-013
© 2025 Bradley
Page 1 of 8
4/10/2025

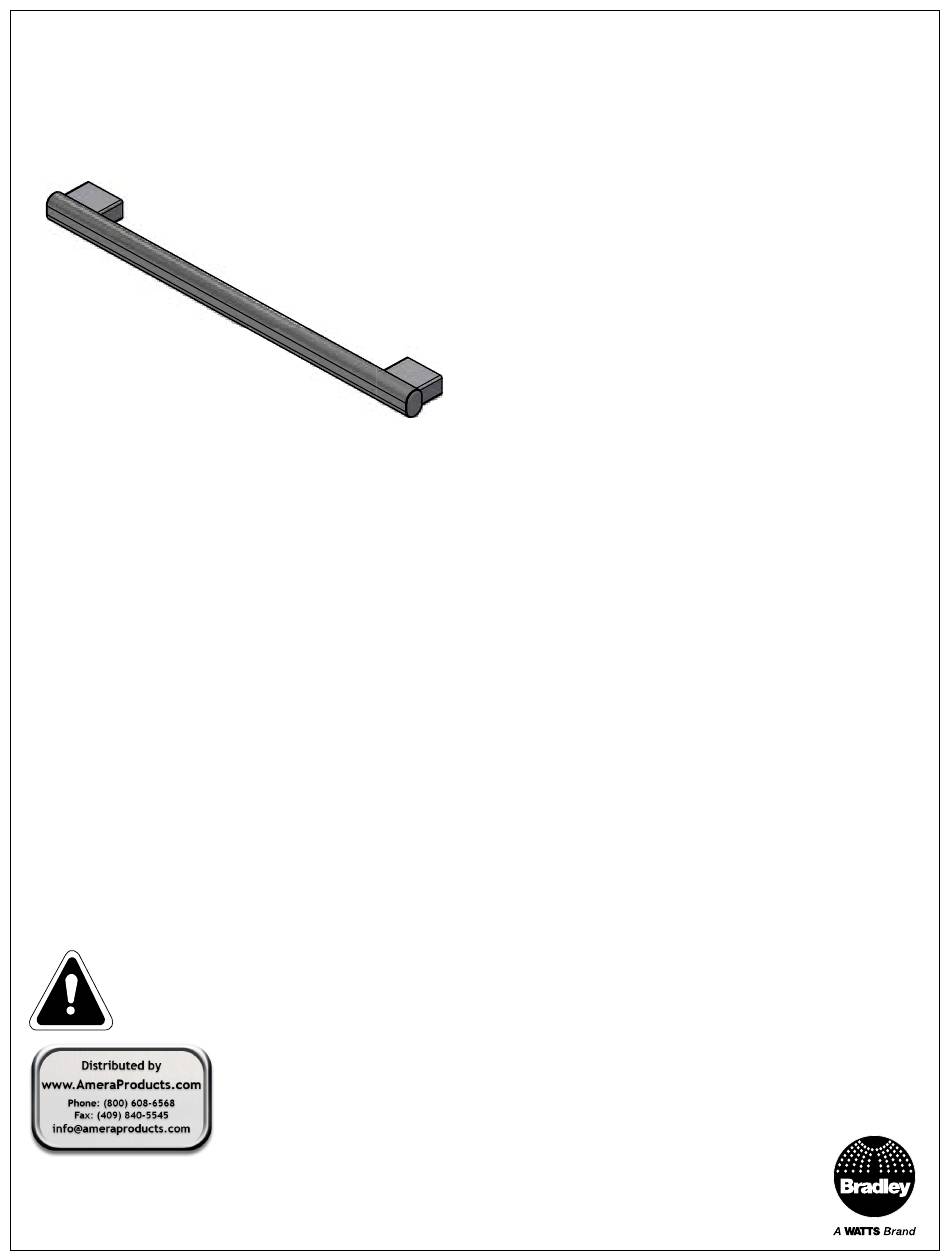

Installation
Elvari
Grab Bars
®
8B1 Series
Table of Contents
Safety Information ............................................................2
Supplies Required ............................................................2
Available Mounting Kits & Anchoring Devices................2
Components .....................................................................3
Dimensions - 8B1 Series without Hooks ........................4
Installing Grab Bar without Hooks ..................................5
Dimensions - 8B1 Series with Hooks .............................6
Installing Grab Bar with Hooks ........................................7
Cleaning and Maintenance ..............................................8
Advertisement
Table of Contents
Summary of Contents for Watts Bradley Elvari 8B1 Series
-
Page 1: Table Of Contents
Installation Elvari Grab Bars ® 8B1 Series Table of Contents Safety Information ............2 Supplies Required ............2 Available Mounting Kits & Anchoring Devices....2 Components ..............3 Dimensions – 8B1 Series without Hooks ......4 Installing Grab Bar without Hooks ........5 Dimensions – 8B1 Series with Hooks ......6 Installing Grab Bar with Hooks ........7 Cleaning and Maintenance ..........8 Read the instructions in this manual before beginning installation. -
Page 2: Safety Information
Elvari Grab Bars – 8B1 Series ® Installation Safety Information WARNING All mounting hardware is supplied by installer and must be appropriate for wall construction. Wall anchors/backing used must provide adequate support for the intended load requirements. Grab bars are no stronger than the anchors and walls to which they are attached, and therefore, must be firmly secured in order to support the intended load requirements. -
Page 3: Components
Elvari Grab Bars – 8B1 Series Installation ® Components 8B1 Series without Hooks Grab Bar Weldment Standoff 1/4"‑20 Set Screw 8B1 Series with Hooks Standoff Grab Bar Weldment Hook 1/4"‑20 Set Screw Bradley • P20-249 Rev. D: ECO 25-15-013 4/10/2025... -
Page 4: Dimensions - 8B1 Series Without Hooks
Elvari Grab Bars – 8B1 Series ® Installation Dimensions – 8B1 Series without Hooks (mm) Top View 1‑1/2" (38) 2‑17/32" (65) Back View 1‑15/32" (37) TYP. 25/32" 7/32" (6) Ø 1/4" (7) TYP. (20) TYP. TYP. 1‑3/8" (35) TYP. Side View 1‑9/16"... -
Page 5: Installing Grab Bar Without Hooks
Elvari Grab Bars – 8B1 Series Installation ® Installing Grab Bar without Hooks Verify all rough-in dimensions prior to installation. WARNING Wall must be reinforced in the area of the grab bar in order to support the load it is intended to support. Mount the standoffs to the surface. -
Page 6: Dimensions - 8B1 Series With Hooks
Elvari Grab Bars – 8B1 Series ® Installation Dimensions – 8B1 Series with Hooks (mm) Top View Back View 1‑3/8" (35) 1‑1/2" (37) TYP. TYP. 7/32" (6) 25/32" (20) TYP. TYP. Ø 1/4" (7) TYP. Side View 3‑13/16" (97) Standoff Finished Floor 1‑1/2"... -
Page 7: Installing Grab Bar With Hooks
Elvari Grab Bars – 8B1 Series Installation ® Installing Grab Bar with Hooks Verify all rough-in dimensions prior to installation. WARNING Wall must be reinforced in the area of the grab bar in order to support the load it is intended to support. Remove the standoffs with hooks from the Mount the standoffs and hook to the surface. -
Page 8: Cleaning And Maintenance
Elvari Grab Bars – 8B1 Series ® Installation Cleaning and Maintenance Scan the QR code below to view the Stainless Steel Washroom Accessories document. Bradley • P20-249 Rev. D: ECO 25-15-013 4/10/2025...
