Summary of Contents for Doughty T28865

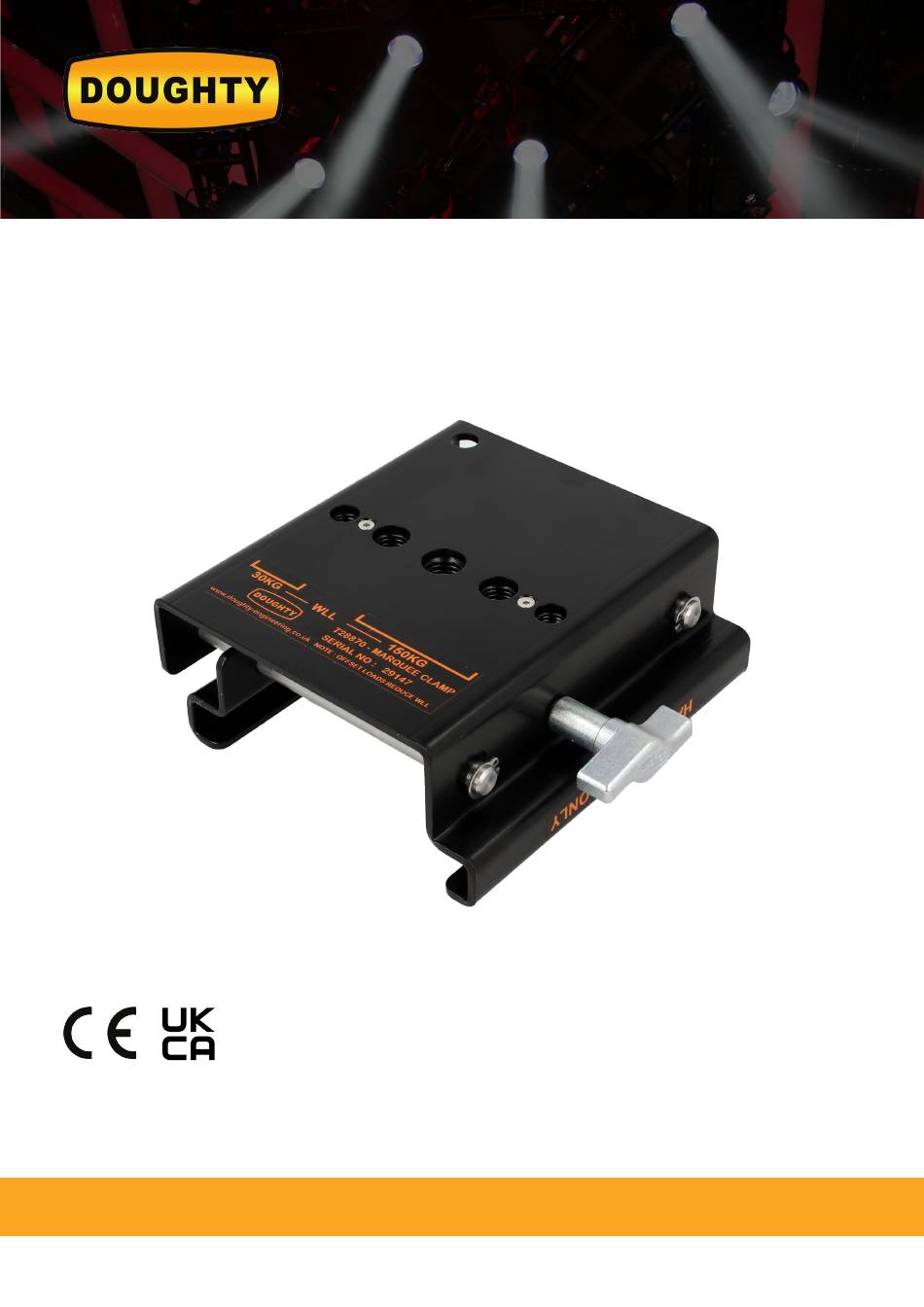

- Page 1 Marquee Clamps USER MANUAL Part Nos: T28865 T58870 Original Instructions T58875 Marquee Clamps www.doughty-engineering.co.uk Revision 10...
-
Page 2: Table Of Contents
Contents Introduction & Load Table USER MANUAL Fixing Holes Operation Inspection, Discard and Rejection Criteria Maintenance Faults, Repair and Replacement Disposal and Warranty Data Sheets Inspection List EC Declaration Contact Details www.doughty-engineering.co.uk... - Page 3 “kader beams”. Marquee clamps are available in the following specifications: Part No. Description Finish Beam Width Max WLL T28865 Lightweight Marquee Clamp Satin Black 80-125mm 20Kg T28870 Standard Marquee Clamp Satin Black...
-
Page 4: Fixing Holes
Fixing Holes T28865 M10 - 20KG T28870 M10 x 1.5 - 150Kg M12 x 1.75 - 150Kg M14 x 2 - 150Kg M12 x 1.75 - 30Kg M10 x 1.5 - 30Kg T28875 M10 x 1.5 - 250Kg M12 x 1.75 - 250Kg M14 x 2 - 250Kg M12 x 1.75 - 30Kg... -
Page 5: Operation
Operation • Doughty Marquee Clamps must only be installed/used by qualified/ competent personnel. • All clamps should be visually inspected before each use. In the event of any damage the clamp should be taken out of service and returned to an “Approved Doughty Service Agent”... -
Page 6: Inspection, Discard And Rejection Criteria
Marquee Clamps that are installed in a permanent configuration. RECORDS Records of initial inspections and periodic inspections should be kept by the owner for each Marquee Clamps and should be signed and dated by the person carrying out the inspections. www.doughty-engineering.co.uk... -
Page 7: Maintenance
Approved personnel must carry out more detailed inspection and testing of the product on a regular basis depending on the usage of the product. • Written records should be kept from the date the product was put into operation. www.doughty-engineering.co.uk... - Page 8 DO NOT modify the equipment as this could lead to a critical failure. • DO NOT use this equipment for a purpose that it is not intended. This could lead to a failure of the equipment and a risk of falling objects. www.doughty-engineering.co.uk...
-
Page 9: Faults, Repair And Replacement
The following faults could be an indication of overload or misuse. Remove those clamps from service. • Deformation of the clamp base and clamp slide. • Doughty knob cannot be turned by hand. • Circlips missing. • Clamp does not fit around the kader beam. -
Page 10: Disposal And Warranty
Guarantee repairs do not renew nor extend the guarantee-period. • In case of a claim under the guarantee or spare part requirements please contact your Doughty service agent. • The manufacturer is not liable for indirect consequential damage or financial loss. -
Page 11: Data Sheets
Max Tightening Handtight Torque Weight 0.50Kg (1.10 lbs) 20Kg Factor of Safety Dimensions in mm 172.0 80.0 - 125.0 11.5 Doughty Engineering Ltd - Crow Arch Lane, Ringwood, Hampshire, BH24 1NZ, UK +44 (0) 1425 478961, sales@doughty-engineering.co.uk - www.doughty-engineering.co.uk www.doughty-engineering.co.uk... - Page 12 M12 x 1.75 - 150Kg M14 x 2 - 150Kg M12 x 1.75 - 30Kg M10 x 1.5 - 30Kg Doughty Engineering Ltd - Crow Arch Lane, Ringwood, Hampshire, BH24 1NZ, UK +44 (0) 1425 478961, sales@doughty-engineering.co.uk - www.doughty-engineering.co.uk www.doughty-engineering.co.uk...
- Page 13 M12 x 1.75 - 250Kg M14 x 2 - 250Kg M12 x 1.75 - 30Kg M10 x 1.5 - 30Kg Doughty Engineering Ltd - Crow Arch Lane, Ringwood, Hampshire, BH24 1NZ, UK +44 (0) 1425 478961, sales@doughty-engineering.co.uk - www.doughty-engineering.co.uk www.doughty-engineering.co.uk...
-
Page 14: Inspection List
Inspection List ITEM FAULT REPAIR DATE SIGNATURE USER MANUAL www.doughty-engineering.co.uk... -
Page 15: Declaration Of Conformity
Declaration of Conformity USER MANUAL www.doughty-engineering.co.uk... -
Page 16: Contact Details
Note: Whilst every effort has been made to ensure that the information contained within this manual is correct, Doughty Engineering does not accept any liability for errors or omissions. Specifications and technical data are intended for guidance purposes only and may vary.
