Summary of Contents for POOLEX JET MAX

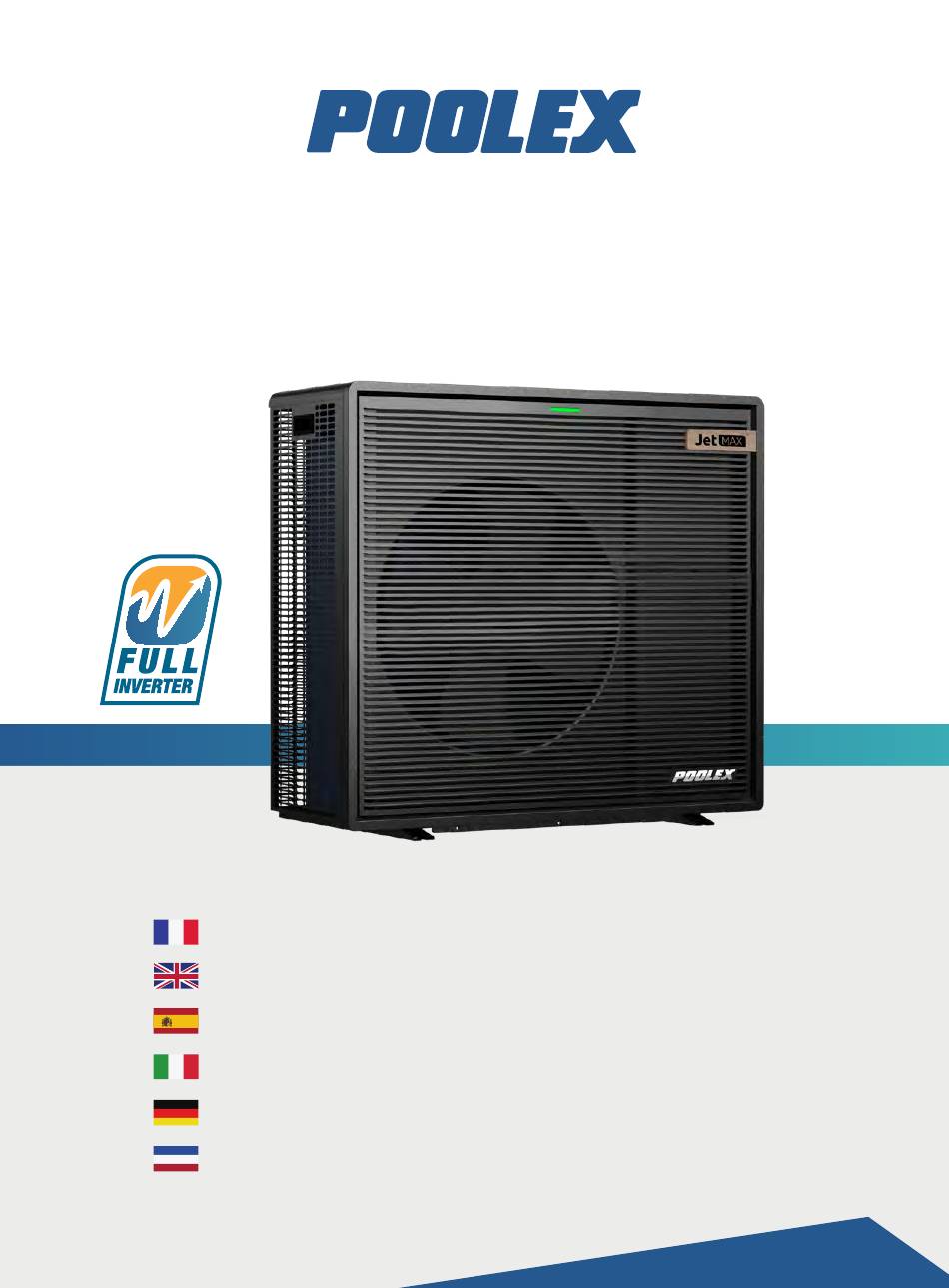

- Page 1 JET MAX Manuel d’installation et d’utilisation Installation and user manual Manual de usuario y instalación Manuale d’installazione e d’uso Installations und Gebrauchsanleitung Installatieen en gebruikershandleiding WWW.POOLEX.FR...
- Page 2 Our products are the result of years of research in the design and manufacture of heat pumps for pools. Our goal is to deliver high-quality products with exceptional performance. We took great care to put together this manual so you can get the most out of your Poolex heat pump.
- Page 3 WARNING This heat pump contains a flammable refrigerant R32. Any intervention on the refrigerant circuit is prohibited without a valid authorization. Before working on the refrigerant circuit, the following precautions are necessary for safe work. 1. Work procedure The work must be carried out according to a controlled procedure, in order to minimize the risk of presence of flammable gases or vapours during the execution of the works.
-
Page 4: Please Read Carefully
They must be given to the installer and retained by the user. If the manual is lost, please consult the website: www.poolex.fr The instructions and recommendations contained in this manual should be read carefully and understood since they provide valuable information concerning the heat pump’s safe handling and operation. Keep this manual in an accessible place for easy future reference. -
Page 5: Table Of Contents
CONTENTS 1. General 1. 1. General Terms of Delivery 1. 2. Safety instructions 1. 3. Water treatment 2. Description 2. 1. Package contents 2. 2. General features 2. 3. Technical specifications 2. 4. Device dimensions 2. 5. Exploded view 3. Installation 3. -
Page 6: General
1. GENERAL 1. 1. General Terms of Delivery All equipment, even if shipped ‘free of carriage and packing’, is dispatched at the consignee’s own risk The person responsible for receiving the equipment must carry out a visual inspection to identify any damage to the heat pump during transport (refrigerant system, body panels, electrical control box, frame). -
Page 7: Water Treatment
• The low and high side test pressure must not exceed 42 bar. 1. 3. Water treatment Poolex heat pumps for swimming pools can be used with all types of water treatment systems. Nevertheless, it is essential that the treatment system (chlorine, pH, bromine and/or salt chlorinator metering pumps) is installed after the heat pump in the hydraulic circuit. -
Page 8: Description
4 anti-vibration pads (fastenings not supplied) ✓ This installation and user manual 2. 2. General features A Poolex heat pump has the following features: ► High performance with up to 80% energy savings compared to a conventional heating system. ►... -
Page 9: Technical Specifications
2. 2. General features 40% humidity 3.85~7.39 4.19~7.39 3.74~5.13 3.88~5.19 (Coeff. of performance) A Poolex heat pump has the following features: SCOP ( 8,76 CLASS A 8,68 CLASS A 8,55 CLASS A 8,52 CLASS A EN 17 645) Maximum power (kW) - Page 10 2. DESCRIPTION 2. 3. Technical specifications Dimensions en mm Jet Max 22KW PG13.5 PG19 1288 1288 50 | EN...
- Page 11 2. DESCRIPTION Jet Max 28KW PG13.5 PG19 1288 1288 EN | 51...
-
Page 12: Device Dimensions
2. DESCRIPTION 2. 4. Device dimensions 2. 5. Exploded view Air outlet grill Pressure gage Air deflector Electronic expansion valve Fan blade Back panel of exchanger Motor bracket Back panel evaporator Compressor insulation jacket Top cover Compressor Evaporator Chassis Electric control box cover Terminal box cover Vertical support Terminal box... -
Page 13: Installation
3. INSTALLATION WARNING: Installation must be carried out by a qualified engineer. This section is provided for information purposes only and must be checked and adapted if necessary according to the actual installation conditions. 3. 1. Pre-requirements Equipment necessary for the installation of your heat pump: ✓... -
Page 14: Installation Layout
3. INSTALLATION 3. 3. Installation layout Automated treatment system Heat pump (electrolyser, dosing pump) 4-way valve Valve 1 Valve 5 Valve 2 Valve 3 Water outlet Water inlet Raising studs Valve 4 Condensate Circulation Filtration drainage pump FROM THE POOL Valves 1, 2 and 3: Bypass valves Valves 4 and 5: Control valves TO THE POOL... -
Page 15: Hydraulic Connection
3. INSTALLATION 3. 6. Hydraulic connection By-Pass assembly TO THE POOL The heat pump must be connected to the pool by means of a By-Pass assembly. A By-Pass is an assembly consisting of 3 valves that regulate the flow circulating in the heat pump. During maintenance operations, the By-Pass permits the heat FROM THE POOL pump to be isolated from the system without interrupting your... -
Page 16: Electrical Installation
In places open to the public, it is mandatory to install an emergency stop button close to the heat pump. Cable diameter for a Protection Thermal-magnetic Models Electricity supply Max. current distance of 10 m (D curve) protection Poolex Jet Max 22 28 A RO2V 3x10 mm² 40 A Singlephase 220-240V~50Hz Poolex Jet Max 28 31.5 A RO2V 3x10 mm²... -
Page 17: Commissioning
4. COMMISSIONING 4. 1. Commissioning Conditions of use For the heat pump to operate normally, the ambient air temperature must be between -15°C and 45°C. Recommendations prior to start-up Before activating the heat pump, please: ✓ Check that the unit is firmly secured and stable. ✓... -
Page 18: Using The Pressure Gauge
4. COMMISSIONING 4. 3. Using the pressure gauge The gauge is for monitoring the pressure of the refrigerant contained in the heat pump. The values it indicates can vary considerably, depending on the climate, temperature and atmospheric pressure. When the heat pump is in operation: The gauge’s needle indicates the refrigerant pressure. -
Page 19: Operation And Use
5. USE d use 5. 1. Wired remote control ce introduction Function Operating mode selection / Parameters Mode intensity selection / Settings Up / Increase Down / Decrease On / Off On/off timer WiFi indicator Error indicator Defrost indicator Operation and use Heating mode 1. -
Page 20: Operating Mode Selector
1. Operation and use 1.1 Display interface introduction 5. USE 1.1 Display interface introduction Heating mode 5. 2. Operating mode selector Heating mode Make sure the screen is unlo Before starting, ensure that the filtration pump is working and that Active Operating Heating mode... -
Page 21: Setting The Clock
1.2.4 Temperature adjustment 1.1 Display interface introduction Operation and use 1. Operation and use 5. USE introduction introduction 1.1 Display interface introduction 1 Display interface introduction 1. Operation and use uction 1.1 Display interface introduction 5. 3. Setting the clock 1. -
Page 22: Programming Start/Stop
5. USE n and use 5. 4. Programming Start/Stop Operation and use nd use 1. Operation and use 1. Operation and use This function allows you to programme the start and stop time. You can record 2 programs in total, that is, you can nterface introduction schedule up to 2 different departures and 2 stops. -
Page 23: Download & Installation Of The "Smart Life" Application
The «Smart Life» app and services are provided by Hangzhou Tuya Technology. Poolstar, owner and distributor of the Poolex brand, cannot be held responsible for the operation of the «Smart Life» app. Poolstar has no visibility on your «Smart Life» account. -
Page 24: Setting Up The App
5. USE 5. 6. Setting up the app WARNING: Before you begin, make sure you have downloaded the «Smart Life» app, connected to your local WiFi network, and that your heat pump is electrically powered and running. You’ll need to create a «Smart Life» account to control your heat pump remotely. If you already have a Smart Life account, please log in and go directly to step 3. - Page 25 5. USE Step 3: (Recommended) Add an object by clicking «...» and then «Add Object.» Enter its name («Pool» for example), then click «Done.» Step 4: Now add a device to your «Pool» Click «Add» or «+» and then «Large appliances...» followed by «Water heater.» At this point, leave your smartphone on the «Add»...
-
Page 26: Pairing The Heat Pump
" for 2 seconds until " " disappears. unctions Functions Defrosting state Once pairing has been successfully completed, you can rename your Poolex heat pump and then press «Done». Heating mode Mode Defrosting state Cooling mode Congratulations, your heat pump can now be controlled from your smartphone. -
Page 27: Controlling
5. USE 5. 8. Controlling User interface Current pool temperature Temperature setpoint Current operating mode Switch the heat pump on/off Change the temperature Change the operating mode Set the operating range Configure the operating ranges for the heat pump Create a schedule: Choose the time, day(s) of the week(s), and the action (turn on or off) and save. -
Page 28: Status Values
5. USE 5. 9. Status values The status values can be checked via remote control by following these steps. Step 1: Keep pressing for 3 seconds to enter parameters check mode. Step 2: Press to check the parameter values. Step 3: Press to return to the main screen. -
Page 29: User Setting
n and use introduction e introduction 5. USE nterface introduction n and use introduction e introduction nterface introduction 5. 10. User setting Modify user settings Step 1: Press for 3 seconds to access the user settings modification. Step 2: Press to choose the advanced setting you want to change. -
Page 30: System Parameter Query
5. USE ration and use nd use play interface introduction introduction 5. 11. System parameter query ace introduction n and use e introduction introduction WARNING: This operation is used to assist servicing and future repairs. n and use terface introduction The default settings should only be modified by an experienced professional person. - Page 31 5. USE System Parameter Table Factory setting Description Adjustment range 22 & 22T 28 & 28T Accumulated heating operation time setting value 30~120 30min 30min Max time of defrosting 1~25 12min 12min Exit defrosting temperature 1~25 12°C 8°C Enter defrosting temperature -20~20 -6°C -5°C...
-
Page 32: The Remote Screen (Option)
6. THE REMOTE SCREEN (OPTION) 6. 1. Installation The screen is connected directly to your heat pump using the cable supplied. Connect the 4-core connection of the cable supplied to the cable protruding from the screen. Connect the other end of the cable to the back of the heat pump as shown in the image opposite. -
Page 33: Temperature Setting
6. THE REMOTE SCREEN 6. 4. Temperature setting Before use, ensure that the filtration pump is working and that water is circulating through the heat pump. The water temperature appears in orange, except when you set your target temperature, which then appears in orange. Use the [+] and [-] buttons to adjust the set temperature. -
Page 34: Settings Menu
6. THE REMOTE SCREEN 6. 6. Settings menu From the Home screen, press the "Settings" button to access this menu. Button Function Modify user settings Change temperature unit (not functional) Modify factory settings Defrost Set time and date Forced defrost (not functional) Set display brightness Note: the "Unit", “wifi”... - Page 35 6. THE REMOTE SCREEN Modify factory settings (not recommended) In the "Settings" menu, use the "Factory" button to access the factory settings interface. You will be prompted for a password. Contact your after-sales service: changing the factory settings without authorisation from the after-sales service will invalidate the warranty.
- Page 36 6. THE REMOTE SCREEN Set time and date In the "Settings" menu, use the "Date / Clock" button to change the date and/or time displayed on the screen. Date and time are also useful for error history reliability (see page 77). The value entered in each box must be possible to be taken into account.
-
Page 37: Consult Heat Pump Data
6. THE REMOTE SCREEN 6. 7. Consult heat pump data Button Function From the home screen, press the "Query" button to access this menu. Temperature readings System values Error history Hardware and software versions Temperature readings In the "Query" menu, use the "Temperature" button to view the following temperature readings : water inlet, water outlet, coil, exhaust, suction, cool coil, ambient, ECO inlet, ECO outlet, IPM. -
Page 38: Maintenance And Servicing
7. MAINTENANCE AND SERVICING 7. 1. Maintenance and servicing WARNING: Before undertaking maintenance work on the unit, ensure that you have disconnected the electrical power supply. Cleaning The heat pump’s casing must be cleaned with a damp cloth. The use of detergents or other household products could damage the surface of the casing and affect its properties. -
Page 39: Repairs
8. REPAIRS Operation and use eration and use WARNING: Under normal conditions, a suitable heat pump can heat the water in a swimming pool by Display interface introduction 1°C to 2°C per day. It is therefore quite normal to not feel any temperature difference in the system ration and use play interface introduction when the heat pump is working. - Page 40 8. REPAIRS Code Anomalies Inspection and troubleshooting 1. Check or replace throttling components. 2. Clean the evaporator fins. Low pressure protection ( three 3. Replace the low pressure switch. consecutive times will lock the 4. Check the leakage position, repair it, re-vacuum and charge the machine) refrigerant according to the refrigerant type and weight shown on the nameplate.
-
Page 41: End Of Product Life
9. 1. General warranty conditions The Poolstar Company guarantees the original owner against defective materials and faults in the manufacture of the Poolex Dreamline Fi heat pump for a period of five (5) years. – The compressor is guaranteed for a period of seven (7) years. - Page 42 9. ANNEXES / APPENDICES / APÉNDICES / APPENDICI / ANHANG / BIJLAGEN Jet Max 22kW & 28kW...
- Page 43 9. ANNEXES / APPENDICES / APÉNDICES / APPENDICI / ANHANG / BIJLAGEN Jet Max 22kW Tri & 28kW Tri...
- Page 44 Assistance technique - Technical support - Asistencia técnica - Assistenza tecnica - Technische unterstützung - Technische bijstand www.assistance.poolstar.fr Poolex is a brand of the group : 01-2025 WWW.POOLEX.FR...
