Summary of Contents for KoolMore KM-DW1852-PR

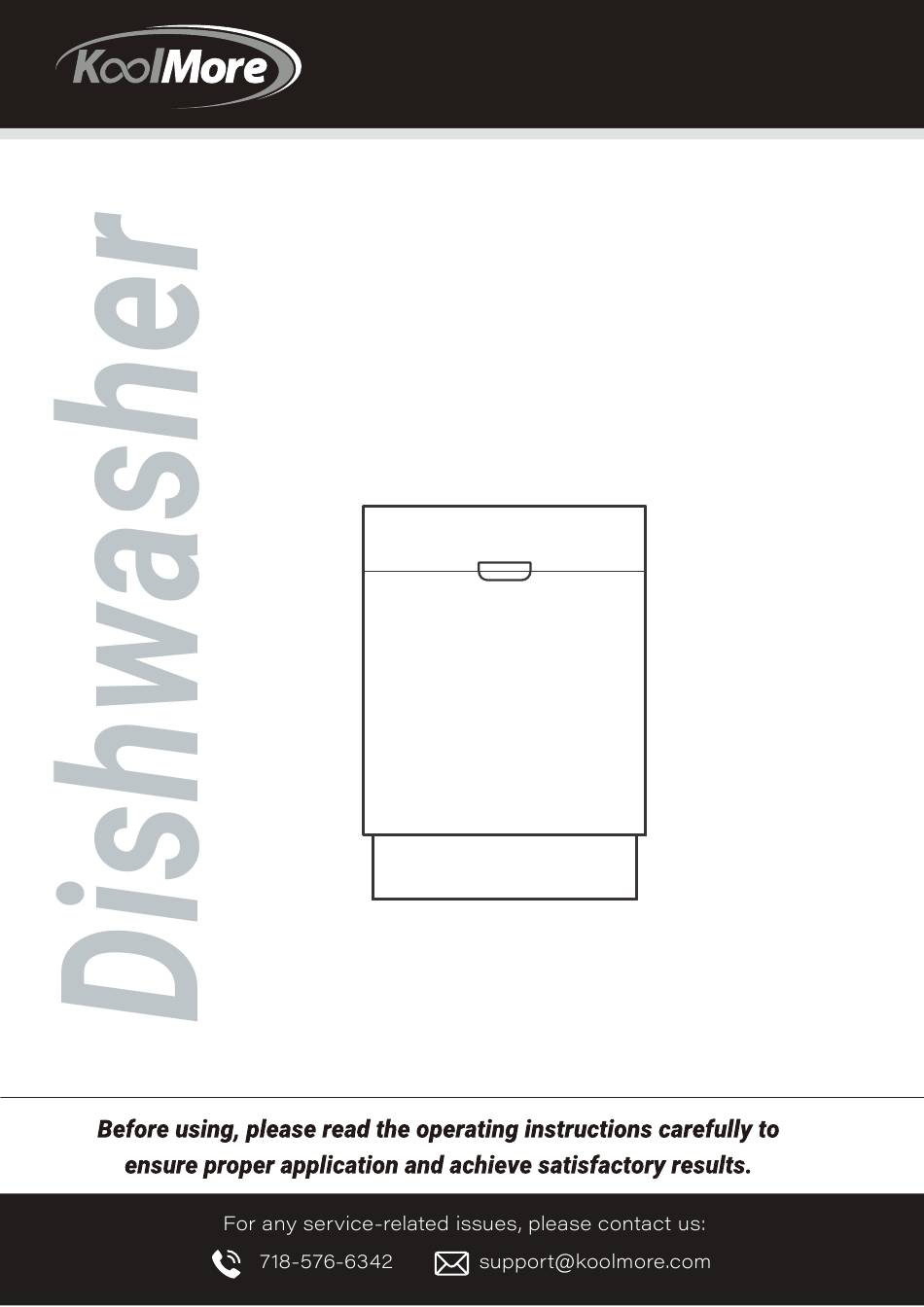

- Page 1 USER MANUAL KoolMore Dishwasher Model: KM-DW1852-PR...
-
Page 2: Table Of Contents
CONTENTS Please carefully read this manual before using the dishwasher, it will help you use and maintain the dishwasher properly . SAFTEY ................1 FEATURES................2 OPERATION................3 OPERATING THE DISHWASHER..........5 USER MAINTANANCE............9 TROUBLESHOOTING............11 WARRENTY.................14... -
Page 3: Saftey
SAFTEY WARNING For your safety, please follow the information in this manual to minimize the risk of fire, explo- sion, electric shock, and to help prevent property damage or personal injury. Proper installation Please install your dishwasher properly, follow the installation guide. •... -
Page 4: Features
FEATURES Ca p a city 8 place settings Dimens io n 17.6 x 21.7 x 32.4 inches (W x D x H) Po wer Sup p ly 120volts, 60Hz Ra ted p o wer us a g e Wash motor: 100W, Heater: 700W Wa ter Feed Pr es s ur e 5.8 ~ 14.5 psi (0.04 ~ 0.1 MPa) Lock... -
Page 5: Operation
OPERATION Getting Started 1. Load the dishwasher (See Dish Preparation and Loading sections). 2. Add detergent (See Filling the detergent dispenser). 3. Add rinse aid (See Filling the rinse aid dispenser). 4. Select desired CYCLE (See Cycle Chart). 5. Select desired OPTIONS (See Control Panel). The indicator light above the pad will glow when selected. - Page 6 3. Delay To delay the start of a selected cycle, press the Delay start pad until the desired delay time shows in the LED display. You can delay the start for 1 to 24 hours. To cancel the delay, press the Start/Cancel pad for 3-5 seconds.
-
Page 7: Operating The Dishwasher
OPERATING THE DISHWASHER Status Window Error indication H:01-H:24 In certain situations which are critical to the If the Delay Start option is selected, the machines function and safe operation, the number of delay start hours shows in the control shall shut down and indicate an error status window. - Page 8 Dish Preparation Scrape away large pieces of food, bones, pits, toothpicks, etc. The continuously ltered wash system will remove the remaining food particles. Burned-onfoods should be loosened before loading. Empty liquids from glasses and cups. Foods such as mustard, mayonnaise, vinegar, lemon juice and tomato based products may cause discoloration of stainless steel and plastics if allowed to sit for a long period of time.
- Page 9 Loading the Upper Basket The upper basket has been designed for small plates, mugs, glasses, and plastic items marked “dishwasher safe”. Load your plates into the dishwasher in two half rows, so that the front of each plate faces the back of the plate in front of it, and the open sides of the plates at the center of the dishwasher face each other.
- Page 10 Filling the rinse aid dispenser Your dishwasher is designed to use a liquid rinse aid. The use of rinse greatly improves drying performance after the final rinse. Do not use a solid or bar-type rinse aid. Under normal conditions, the rinse aid will last approximately one month. It is best to keep it full, but do not overfill. Filling the detergent dispenser 1.
-
Page 11: User Maintanance
USER MAINTENANCE Keeping your dishwasher clean improves its performance, reduces unnecessary repairs, and lengthens its life. CLEANING THE EXTERIOR It's best to clean spills on the outside of your dishwasher as they occur. Use a soft, damp cloth on the control panel to gently wipe away spills and dust. Do not use benzine, wax, thinner, chlorine bleach, or alcohol. -
Page 12: Cleaning The Nozzles
4. Remove any dirt or other remains from the filters, and then rinse them under running water. 5. Reassemble the filters in the reverse order of the disassembly, replace the filter insert, and rotate clockwise to the close arrow. CAUTION: If the filter insert is not closed properly, its performance will be decreased. CLEANING THE NOZZLES If your dishwasher does not seem to be cleaning adequately or the nozzles seem clogged, you can clean each of the nozzles. -
Page 13: Troubleshooting
TROUBLESHOOTING Possible cause Solution Problem Shut the door completely make sure it is latched Dishwasher won't start Power supply or power line is not connected Check and connect the power supply Dishwasher won't start Refer to Delay Start section in this manual to reset Delay Start option has been selected Deactivate the child lock, refer to child lock Child Lock activated... - Page 14 Problem Possible cause Solution Detergent may be too old Use fresh detergent Detergent left in dispenser cup Load the dishes, making sure the spray arms Spray arm is blocked are not blocked Detergent dispenser will not Improper operation of the detergent cover Add the detergent and rinse aid as indicated by shut the manual...
-
Page 15: Error Codes
Error Codes When some malfunctions come on, the appliance will display error codes to warn you: 1. check the water supply 2. check the inlet valve during the water inlet step, if the flow meter 3. check the inlet can't detect the defined water after 4 4. -
Page 16: Limited Warranty
At its sole discretion, Koolmore Supply Inc. may decide to replace the product. In such an event, your replace- ment appliance will carry the warranty for the remaining term of the original unit's warranty period.
