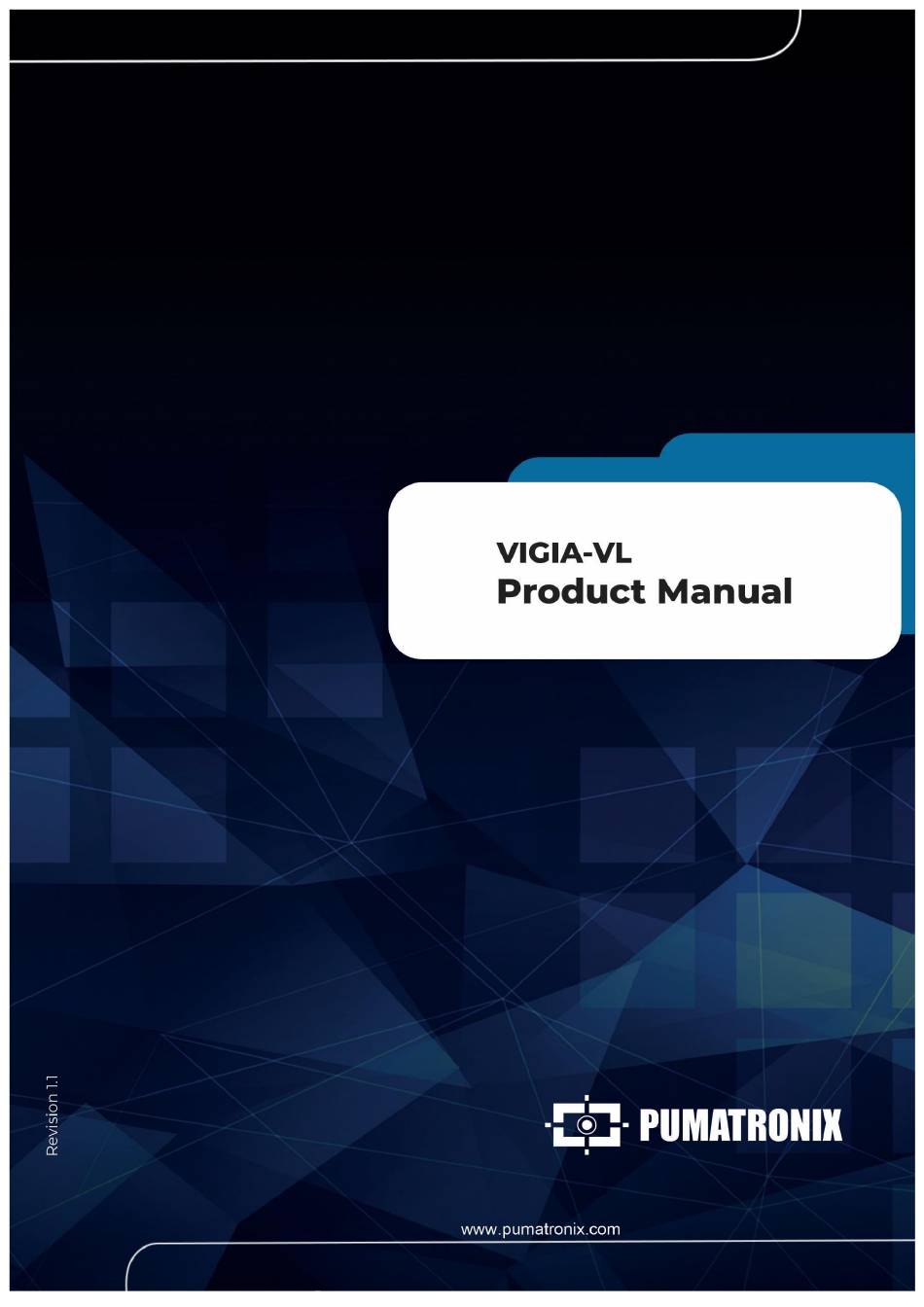

PUMATRONIX VIGIA-VL Product Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the VIGIA-VL and is the answer not in the manual?

Questions and answers

Summary of Contents for PUMATRONIX VIGIA-VL

Page 2: Change History
Information contained in this document is subject to change without notice. Pumatronix reserves the right to modify or improve this material without obligation to notify you of changes or improvements. Pumatronix grants permission to download and print this document, provided that the electronic or physical copy of this document contains the entire text.
Page 3 Examples of these technologies are Intelligent TrafficSystems (Intelligent Traffic Systems - ITS), in which Pumatronixproducts, such as VIGIA-VL, are used. This system helps to reduce traffic congestion, which contributes to minimizing vehicle emissions. Likewise, it increases safety by detecting the presence of Laço Virtual...
Page 4 VIGIA-VL Handling Risks Artificial Lighting: For the accuracy of the data generated by the VIGIA-VL system, the existing public lighting should favor the detection of vehicles when capturing images at night and in adverse weather conditions, such as fog, rain, and the like.
Page 5 Product Manual VIGIA-VL Models Estimated range (in Models available Resolution Lens Type meters) VIGIA-VL (S10L7IWOP) 1920x1080 - Rolling Shutter Motorized lens 9 a 32m (2.7-12mm) Full HD Integrated Image sensors Lens Optional Lighting S10: CMOS IMX307 1920x1080 L7: Motorized lens...
Page 6: Table Of Contents
Product Manual VIGIA-VL Summary Getting to know the product....................7 Monitoring Set ................................7 Information Generated ......................8 Mechanical Specifications ......................8 VL-Sensor-D Image Capture and Processing Device ....................... 8 Features......................................9 VIGIA-VLIO Controller Module ............................9 Características ....................................10 Electrical Specifications ......................
Page 7 VIGIA-VL VIGIA-VLIO Controller Module Installation ........................20 Attaching the VIGIA-VLIO Controller Module ........................... 20 Data Connections ..................................22 First Access VIGIA-VL Web Interface ..................22 First Access VL-SENSOR-D ............................22 Care and Maintenance ......................22 Firmware Update ..............................23 Preventive Maintenance ............................. 23 Preventive Electrical Maintenance ..............................
Page 8: Getting To Know The Product
• 1 controller module (PoE Switch + VLIO Card + VIGIA-VLULP). When using the VIGIA-VL, a path of up to 4 lanes is monitored by a single VL-SENSOR-D image capture and processing device. Thus, four-way monitoring requires four VL-SENSOR-D image capture and processing devices, totaling sixteen monitored tracks.
Page 9: Information Generated
ENSOR Information Generated VIGIA-VL can be used in traffic management because it processes and analyzes the images captured by the VL-SENSOR-D capture and processing devices. This analysis identifies the vehicles, based on the detection by the Virtual Loops bounded in the images and the result is presented in the form of: •...
Page 10: Features
The connection between VLIO and VIGIA-VLULP(Firefly) is made through USB connection. The VIGIA-VLIO Controller Module is responsible for interconnecting the VIGIA-VL with the Traffic Light Controller of the intersection or traffic light. It is capable of receiving the signals from up to eight Monitoring Sets, and sending the signals from up to sixteen monitored tracks to the Traffic Light Controller.
Page 11: Características
Product Manual VIGIA-VL Figure 4 - VIGIA-VLIO Controller Module: 1) DIN Rail Support; 2) 75mm DIN Rail; 3) ULP Bottom Support; 4) VLIO plate; 5) ULP VL top bracket; 6) ULP Características • Communication: RJ-45 serial for data and USB for maintenance •...
Page 12: Switch Poe
Product Manual VIGIA-VL Power Supply to the VIGIA-VLIO Controller Module: To power the module with a voltage of 12 to 48Vdc, the power supply must be connected directly to the VLIO Board, which connects to and powers the ULP, as indicated. The points indicated in the figure should be used, with connectors P4 and Terminal Block.
Page 13: Vlio Board
• 24Vdc power supply The VLIO Board is responsible for interconnecting the VIGIA-VL with the Traffic Light Controller, sending the track occupancy information to the controller system through dry contacts. In the same way, the VIGIA- VL operation can be controlled through the interfaces available on the VLIO Board, which have different behaviors and functions: •...
Page 14: Status Leds
Product Manual VIGIA-VL Polarity change: Changing the polarity of the OUTPUTs ports implies in reversing the product's operation logic. Check the IO LEDs to validate the configuration. Status LEDs ERROR The red LED named , is intended to indicate errors in the operation of the board; the green LED...
Page 15: Electrical Connections To The Traffic Light Controller
Product Manual VIGIA-VL Figure 8 - Connection diagram of VIGIA-VL with a Monitoring Set Data connection: The RJ-45 serial interface is used for communicating data from the Monitoring Set to the VIGIA-VLIO Controller Module. Electrical Connections to the Traffic Light Controller The VIGIA-VLIO Controller Module is powered by the Traffic Light Controller by connecting to the VIN terminal of the VLIO Board.
Page 16 Product Manual VIGIA-VL Semaphore Controller Board Type: The output signals from the OUTPUTS terminals of the VLIO Board do not allow connection to inductive loop boards. Identify the Semaphore Controller model existing on site and the operation of the respective dry contact board to connect and power the isolated inputs (INPUTS) and outputs (OUTPUTS) of the VLIO Board.
Page 17: Software Specifications
Product Manual VIGIA-VL 7) Check the status of the pulses through the LEDs of the VLIO Board and the Traffic Light Controller, which should indicate the presence of vehicles in the virtual loops and should be synchronized. If an error occurs in synchronization, check how to configure in Configuration of the VIGIA-VLIO Controller Module.
Page 18: Vigia-Vlio Controller Module And Monitoring Set
Product Manual VIGIA-VL VIGIA-VLIO Controller Module and Monitoring Set To access the VIGIA-VL software interface, a Device with Google Chrome browser version 56 or higher installed is required. Licensing The VL-SENSOR-D license is a single file and associated with the hardware on which the system has been installed.
Page 19: Installation
VIGIA-VL 8. Installation Once the prerequisites and conditions for the complete installation of the selected VIGIA-VL model have been met, the components can be installed according to the specifications presented. It is recommended to first physically install the components and then configure them via the interface with the help of a laptop.
Page 20: Vl-Sensor-D Image Capture And Processing Device Attachment
Product Manual VIGIA-VL of the image capture and processing device VL-Sensor-D and the angle of the equipment in relation to the track, which is 30° to 45° when installed on the projected arm of the pole. In this condition, the maximum vehicle detection distance is 18 meters from the imaging device.
Page 21: Monitoring Set Connections
4) Connect the Ethernet cable to the RJ-45 interface of the VIGIA-VL cable. Monitoring Set Connections The installation of a VIGIA-VL Monitoring Set requires the VL-SENSOR-D Device connections to the VIGIA- VLIO Controller Module, for sending the data. Distance from the VIGIA-VL Device to the Switchboard: The length of the Ethernet cable between the Device and the Command Board should be less than 100m.
Page 22 Product Manual VIGIA-VL Standard Vertical Mounting Figure 13 – 1) DIN Rail Support; 2) DIN Rail 75mm; 3) Bottom Support; 4) Top Support; 5) ULP 1) Remove the supplied 75mm DIN Rail from the frame, if there is a rail for fixing;...
Page 23: Data Connections
5) After 15 seconds the device will have restarted with the new network settings and can be added manually in the VIGIA-VL interface. This operation must be repeated on all the cameras that will make up the VIGIA-VL system 10. Care and Maintenance Some care is needed to protect the equipment, because it reduces the probability of failure and allows for the best product performance.
Page 24: Firmware Update
Firmware Update Perform the following steps to perform the update: 1) Access the Pumatronix website and download the VIGIA-VL update file, which has three software packages (they can be updated individually or all at once, with the process done in the background, after sending the update files).
Page 25: Preventive Maintenance Of The Protection Tab Of The Vl-Sensor-D Image Capture And Processing Device
This position of the virtual loops can be confirmed using the images produced as a reference by following them through the VIGIA-VL interface. If the loops are out of position, the VL-SENSOR-D device must be repositioned on the support, thus correcting the position of the virtual loops.
Page 26: Privacy Policy
Pumatronix is not responsible for the purposes, use and handling of images captured, whereas control over product information and forms of operation are solely the responsibility of the product user or buyer.
