Summary of Contents for NAUTIZ X81

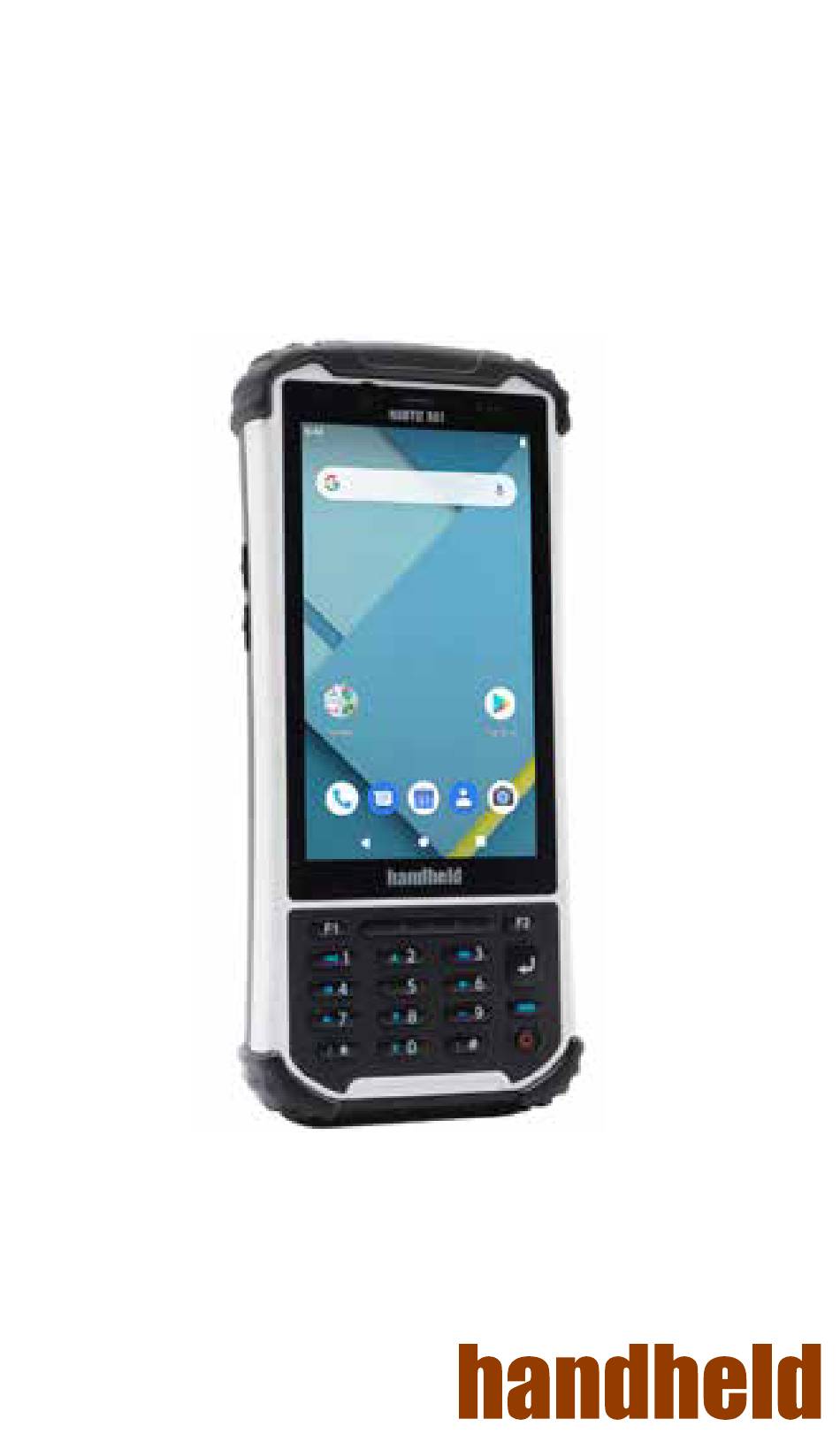

- Page 1 NAUTIZ X81 QUICK START GUIDE...
-
Page 2: What's In The Box
WHAT´S IN THE BOX The pictures shown below may differ from the actual products. To purchase additional or optional products, contact our customer center. NAUTIZ X81 Nautiz X81 Main Body Standard Battery Hand Strap USB Cable Adaptor... - Page 3 YOUR NAUTIZ X Front Camera NAUTIZ X81 Receiver Volume Keys Touch Screen Display Power Button Flash Light Camera Hand Strap Holder Speaker Battery Lock Battery Hand Strap Holder...
-
Page 4: Insert/Remove Battery
INSERT/REMOVE BATTERY Battery door unlock To insert the battery 1. Remove the battery cover by sliding the door’s lock left and lift up the cover. 2. Insert the battery. 3. Close the battery cover. To remove the battery 1. Power off the PDA. 2. - Page 5 INSERTING/EXRTRACTING SIM/MICRO SD CARD This is how you insert and remove the SIM/micro SD. SIM card SD card...
-
Page 6: Powering On/Off
Press the [Power] button at the bottom of the keypad to turn the Nautiz X81 unit on/off. NAUTIZ X81 Power Button BATTERY CHARGING Use supplied power adapter and USB cable to charge the Nautiz X81. Charge the Nautiz X81 before using the device for the first time. NAUTIZ X81... -
Page 7: Bottom Panel Layout
BOTTOM PANEL LAYOUT Type C USB A host DB9 RS-232 Please go to www.handheldgroup.com/knowledgebase to download more information. - Page 8 1. FCC 1. FCC ▪ 1.1 Part 15.21 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. ▪1.2 Part 15. 105 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
- Page 9 1) this device may not cause harmful interference and 2) this device must accept any interference received, including interference that may cause undesired operation. ▪ 1.4 RF EXPOSURE FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
- Page 10 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement ▪ 2.2 RF EXPOSURE Caution: Exposure to Radio Frequency Radiation. 1.To comply with the Canadian RF exposure compliance requirements, this device and its antenna must not be co- located or operating in conjunction with any other antenna or transmitter.
- Page 11 For the frequency 5600-5650 MHz, no operation is permitted Pour la fréquence 5600-5650 MHz, aucune opération est autorisée. 3. NOTE 3. NOTE 1. If the product has any abnormal state, please contact the manufacturer to deal with it, and the product must be serviced by a skilled person.
- Page 12 1. SAR is measured with the device at 5 mm to the body, while transmitting at the highest certi ed output power level in all frequency bands of the device. The maximum SAR value is 1.031 W/kg (head/body) averaged over 10 gram of tissue. This equipment should be installed and operated with a minimum distance of 0.5 cm between the radiator and your body.
- Page 13 Transmi�er Maximum Output Radio Type / Descrip�on Frequency (MHz) Power FDD n1 1920~1980 23 dBm FDD n3 1710~1785 23 dBm FDD n7 2500~2570 23 dBm FDD n8 880~915 23 dBm FDD n20 832~862 23 dBm FDD n28 703~736 23 dBm NR opera�ng Band TDD n38 2570~2620...
- Page 14 Version 1.0...
