Summary of Contents for Franzen ARMLOC II

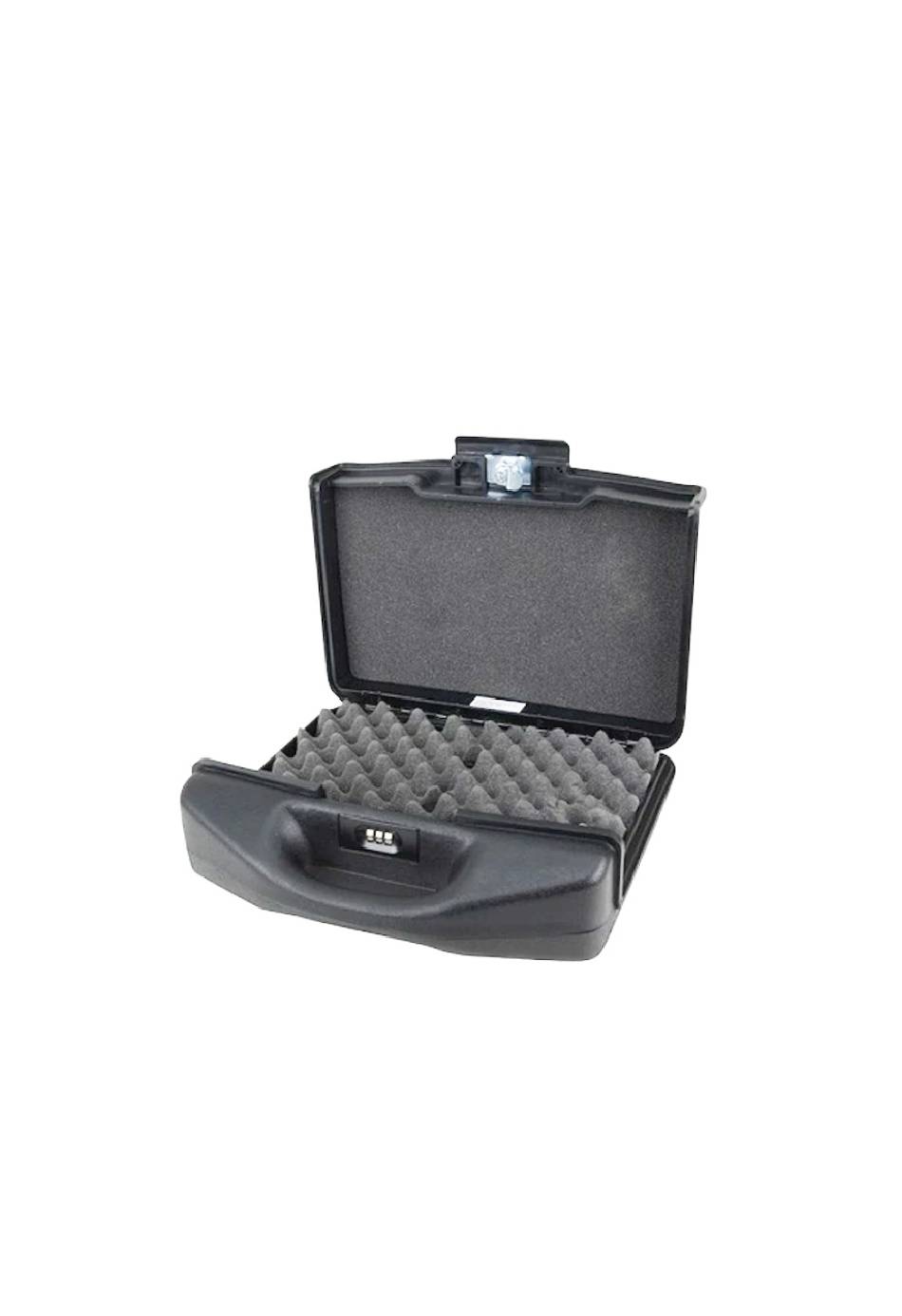

- Page 1 Franzen North America, Inc. ARMLOC II Handgun Safety System Owner's Manual www.franzenlocks.com sales franzencda.com 226-336-6200...
-
Page 3: Table Of Contents
INTRODUCTION..................2 USING THE INTEGRATED LAMP..............2 REPLACING THE BATTERY..............2 REPLACING THE BULB................2 REPLACING THE REAR HOUSING............3 OPENING THE ARMLOC II CASE..............3 OPENING THE HIGH SECURITY KEY LOCK..........4 SETTING THE COMBINATION..............4 THE MOUNTING SYSTEM................6 INSTALLING THE BED FRAME MOUNT...........7 INSTALLING THE STRUCTURAL MOUNT..........7 CAR, TRUCK AND RV INSTALLATION.............7... -
Page 4: Introduction
Franzen North America Inc the U.S State Department, the U.S Treasury, the U.S Postal Inspection Service, the U.S Department of Energy, foreign governments and various other federal, state/provincial law enforcement agencies across North America. USING THE INTEGRATED LAMP hand grip has a red lamp built into it that operates using a 9V battery. The lamp is designed to... -
Page 6: Opening The High Security Key Lock
OPEN LOCKED... -
Page 8: The Mounting System
Selector Lever (B) between the "NORMAL" and "SET" positions. MOUNTING SYSTEMS The ARMLOC II case is supplied with two mounting brackets. One bracket mounts to standard bed frames (angle iron cross-section) and the other mounts to any flat structural surface. The case is designed to self-align with these brackets so it secures within seconds. -
Page 9: Installing The Bed Frame Mount
10. The weight of the box spring will hold the mount in place. When the case is fastened to the mounting bracket, it completely clamps the ARMLOC II case to the bed frame. The bed frame bracket can be used on many commercial bed frames. -
Page 10: Wall And Wood Bed Frame Installation
FRANZEN Figure 11 For Auto, Truck and RV Installation WALL AND WOOD BED FRAME INSTALLATION Installation on wall and/or bed frame requires these tools: • Electric drill (with a 1/16" drill bit) • Pencil • Screw driver • Four wood or self-tapping sheet metal screws (1/8" x 1-3/4") Locate the position of a wall stud, or suitable place on wood bed frame.
