WESTBURY Bella Cavo C91 Installation Instructions

Bella Cavo Series
(Style C91)
Gate Installation Instructions
•
These instructions must be followed exactly as written, and the materials used must be exactly as shown in the instructions. Any deviation from the instructions or
variation in the materials used/installed may result in an unsuccessful installation.

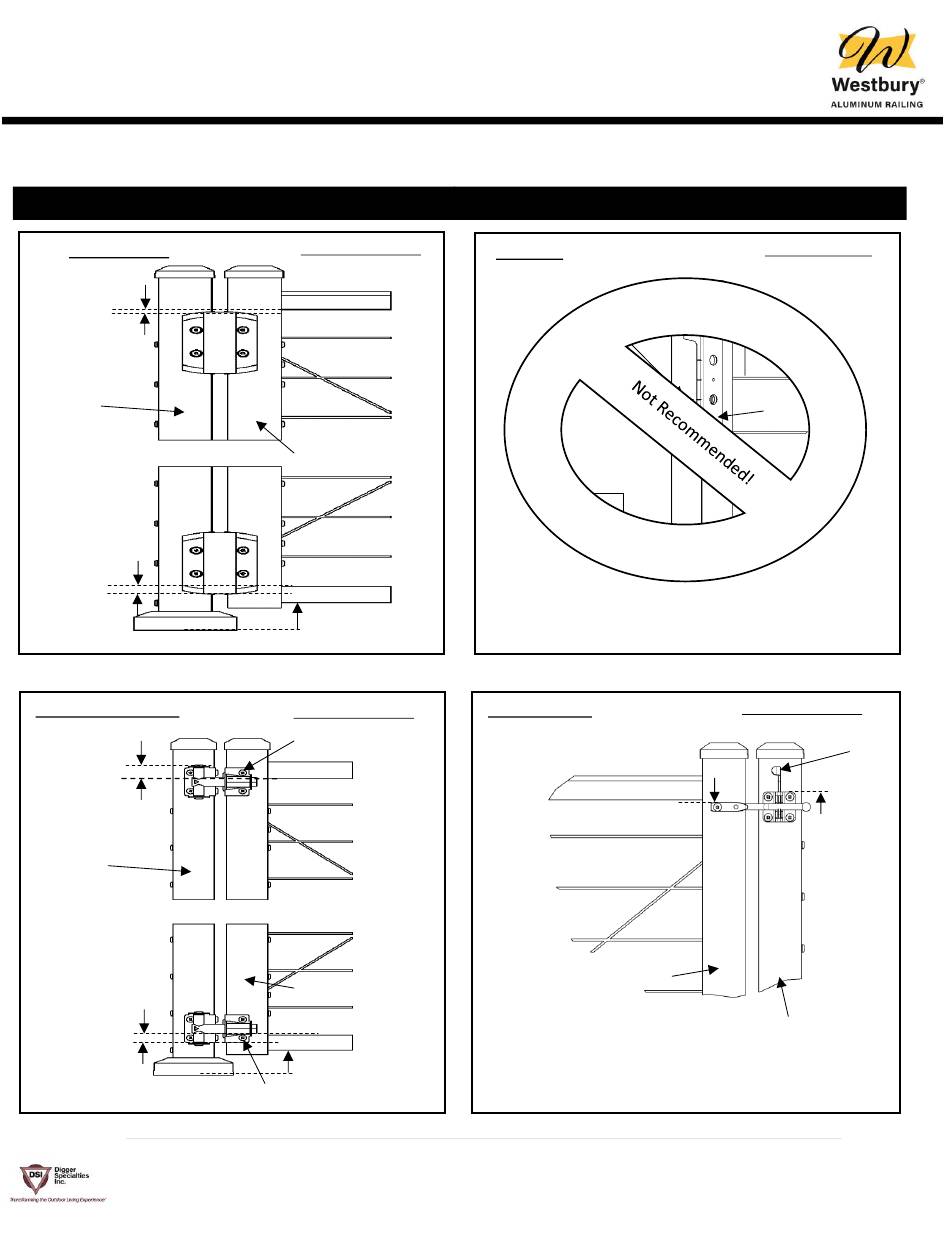

Hinge Placement
Tru Close Hinge
1/8" Down
from Top Rail
Gate Support
Post
Positioning hinges
properly will ensure
not damaging inner
components.
5/8" Down
from Bottom
Rail
SS Medium Duty Hinge
7/8" UP
from Top Rail
Gate Support
Post
Positioning hinges
properly will ensure
not damaging inner
components.
5/8" Down
from Bottom
Rail
#14 x 1¼" Pan head screws
Gate Side
2" Up to
Bottom Rail
#14 x 1¼" Pan head screws
Pilot Hole
Drill a pilot hole for
screws that go into
rails.
Gate Side
2" Up to
Bottom Rail
Pilot Hole
For more information visit diggerspecialties.com
Latch Placement
Lokk Latch
(2)
Mark side of post. Then
Slide bracket down so that
the center notch aligns with
your marked line.
(3)
Mark hole on Template
for drilling Per Lokk Latch
Instructions.
Gate Side
Positioning latch properly will ensure not
damaging inner components.
SS Gravity Latch
3/16" Down from Top Rail
Gate Side
Positioning latch properly will ensure not
damaging inner components.
#8 x 1" Pan head screws
(1)
2-13/16" Up
from Top cable
Mounting Bracket
Gate Support
Post
#10 x 5/8" Pan head screws
Flip Lever UP
7/16" Up
from Top Rail
Gate Support
Post
08/29/2024
1 | P a g e
