Summary of Contents for Data Modul eDM-pITX-BT
- Page 1 S P EC I F I C AT I O N | S A F E T Y I N S T R U C T I O N S eDM-pITX-BT www.data-modul.com...
-
Page 2: Revision History
The purpose of all the figures and illustrations in this Specification is merely to provide a better explanation and can differ to the actual appearance of the devices. They are to be understood as schematic representations. E Copyright 2016 by DATA MODUL AG Trademarks: Microsoft and Windows are registered trademarks of Microsoft Corporation. -
Page 3: Table Of Contents
Specification/Safety Instructions Contents Operating Instructions ........... . Using this Specification . - Page 4 Specification/Safety Instructions Contents DC Power Input (X42) ............DC Power internal (X41) .
-
Page 5: Operating Instructions
Technical Support DATA MODUL's technicians and engineers are committed to providing the best possible technical support for our customers so that our products can be easily used and implemented. We request that you first visit our website at www.data-modul.com for the latest documentation, utilities and drivers, which have been made available to assist you. -
Page 6: Safety Instructions
Specification/Safety Instructions Safety Instructions Please read and observe the following safety precautions thoroughly in order to prevent or reduce injuries to persons or damage to objects. Please keep this Specification for future reference. DANGER! - The mainboard may only be installed or used under the conditions that lie within the specified tolerance. In case of failure to comply with the specified conditions which may cause fire, dangerous electric shock, or damage of the mainboard. -
Page 7: List Of Abbreviations
Specification/Safety Instructions List of Abbreviations CAN : Controller Area Network DP : DisplayPort DVI : Digital Visual Interface GND : Ground HD : High Definition HDA : High Definition Audio HDMI : High Definition Multimedia Interface I²C : Inter-Integrated Circuit Bus LAN : Local Area Network LCD :... -
Page 8: Overview

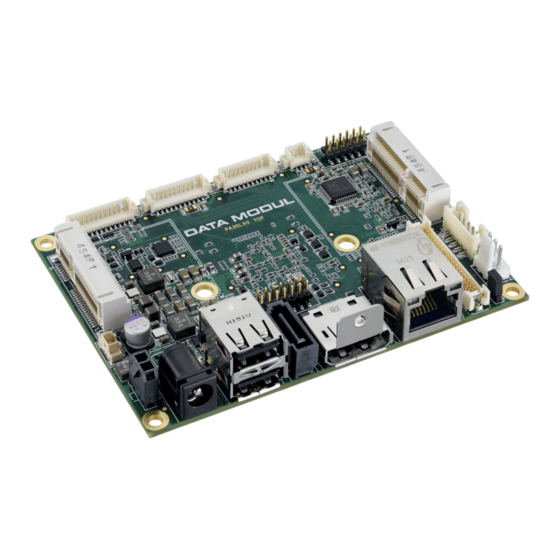

Specification/Safety Instructions Overview This specification defines the functionality and requirements for pico-ITX mainboard based on Intel® Bay Trail processors. System Overview The table below describes features and properties of mainboard. The mainboard will have the specified dimensions of 100mm x 72mm. mPCIe/mSATA Audio RS232/422/485 located on bottom... - Page 9 SPI to CAN converter Microchip MCP25625, currently no driver support Molex PicoBlade, 3pins Thermal / Voltage Monitoring SoC and board controller BIOS Flash Standard BIOS Flash Memory Cooling A DATA MODUL cooling solution. DATA MODUL Embedded Accomplished by TI Stellaris Microcontroller (TM4E1231H6ZRBI) Feature Set I²C Watchdog PowerLoss LCD Control www.data- modul.com...
-
Page 10: Supported Operating Systems
Windows Embedded Compact 7 (WEC7) Windows Embedded Compact 2013 (WEC2013) Linux For other operating systems, DATA MODUL will provide support to the best of its ability in order to help to utilize these operating systems on the mainboard. Customized UEFI DATA MODUL will provide a standard UEFI firmware based on AMI Aptio V UEFI source code with additional DATA MODUL specific features. -
Page 11: Ordering Information
12012502 Heatspreader for Pico-ITX eDM-pITX-BT. Stand-offs with 2.7mm bore hole. eDM-pITX-BT-CSP 12012503 Passive heat sink for Pico-ITX eDM-pITX-BT. Stand-offs with 2.7mm bore hole. (*To use this item it's necessary to order also eDM-pITX-BT-HSP.) TS16GMSM610 12012814 Half-Size mSATA Flash Drive 16MB MLC (0 - 70°C) -
Page 12: Lcd Backlight (X2)
Specification/Safety Instructions Connector type: Hirose DF13, 40 pins Function Function +3.3V +3.3V N.C. N.C. ODD_TX1+ ODD_TX0+ ODD_TX1- ODD_TX0- ODD_TX3+ ODD_TX2+ ODD_TX3- ODD_TX2- EVEN_TX1+ EVEN_TX0+ EVEN_TX1- EVEN_TX0- EVEN_TX3+ EVEN_TX2+ EVEN_TX3- EVEN_TX2- EVEN_CLK+ ODD_CLK+ EVEN_CLK- ODD_CLK- +12V +12V LCD Backlight (X2) The mainboard provides an internal header for the display backlight connection as described below. Control signals are 3.3V logic by default, a 2mm jumper can be removed from 2mm pin header to change signals to 5V logic. -
Page 13: Ethernet Interface (X40)
Specification/Safety Instructions USB internal (CN2): 2mm pin header, 14 pins, 2 rows, SMT Function Function SS_RX+ SS_RX- USB_D- USB_D+ SS_TX+ SS_TX- USB_D- (for USB 3.0) USB_D+ (for USB 3.0) Ethernet Interface (X40) The motherboard provides one IEEE 802.3 10/100/1000Mb/s Base-TX Ethernet compliant interface. The Ethernet port on the mainboard will use the integrated MAC from the Intel®... -
Page 14: Power Supply
Specification/Safety Instructions Power Supply The mainboard offers two options for connection of an external power supply unit (PSU) which must fulfill the following requirements: Supply Voltage: +12V ± 10% Tolerance: Ripple: < 50 mV Power Supply Configurations The board supports two different power supply configurations: DC jack on the I/O panel and internal DC connector. Max input current is 5A (power consumption of and connected devices, which expect power from, must not exceed 60W). -
Page 15: Can (X19)
Specification/Safety Instructions Connector type (X16, RS232): Molex PicoBlade, 5 pins, SMT Function RTS# CTS# Connector type (X18, RS232/RS422/RS485): Molex PicoBlade, 5 pins, SMT Function RS232 Function RS422/RS485 RTS# CTS# CAN (X19) The provides a CAN connection via SPI to CAN converter (MCP25625), no driver support now. CAN is not terminated by default (external termination is expected). -
Page 16: Feature Connectors
Specification/Safety Instructions Feature Connectors The mainboard provides a features on 3 connectors. The connectors provide ability to connect external buttons (Power, Reset, Sleep, LID), LEDs (Power, SATA), I2C, SMB and 8x GPIO. Button & LEDs (X13) Connector type: Molex PicoBlade, 12 pins, SMT Pin-out: Function LID_BTN#... -
Page 17: Real Time Clock (Rtc) / Battery
® The UEFI for the mainboard will be based on the AMI Aptio UEFI 2.x firmware and will support the DATA MODUL Embedded Features. The UEFI is stored in a serial SPI Flash on the mainboard. No connection for external BIOS flash memory. -
Page 18: Csp Dimension
CAUTION! The DATA MODUL heatspreader is only suitable for use within commercial temperature ranges (0°C to 60°C) . It is not designed to be used within industrial temperature ranges (-40°C to 85°C). When using a heatspreader with mainboard commercial grade variants, the maximum operating temperature refers to any measurable spot on the heatspreader's surface. -
Page 19: Embedded Feature Set
Specification/Safety Instructions CAUTION! When using the heatspreader in a high shock and/or vibration environment, DATA MODUL recommends the use of a thread-locking fluid on the cooling solution screws to ensure the above mentioned torque specification is maintained. Embedded Feature Set The mainboard is equipped with a so called board controller which provides some “Embedded”... -
Page 20: Mechanical System
Specification/Safety Instructions Mechanical System Mechanical Outline The mainboard dimensions are illustrated by the following drawing. Component Placement Processor on the BOTTOM side. Connectors on the TOP side, a Molex PicoBlade connectors could be right angled and placed on BOTTOM side (to board edge). DC jack located in the corner (end of the I/O panel). Top Side www.data- modul.com... -
Page 21: Bottom Side
Specification/Safety Instructions Bottom Side www.data- modul.com... -
Page 22: Environmental Specifications
Specification/Safety Instructions Environmental Specifications The mainboard will be able to be operated and stored under the following environmental conditions. Temperature Operating: 0°C to +60°C (commercial) Operating: -40°C to +85°C (industrial)* Storage: -20°C to +80°C (commercial) Storage: -40°C to +85°C (industrial)* * with limitations, see chapter „Limitations of Industrial Version“... -
Page 23: Standards & Certifications
Specification/Safety Instructions Standards & Certifications EMC Standards Emission According to EN 55022 ed. 3:2011 Basic Standards: EN 61000-6-3 Radiated Emission: Frequency range 30MHz – 1GHz, 1GHz – 6GHz Conducted Emission: Frequency range 150kHz – 30Mhz Emission over DC input and Ethernet Immunity According to EN 55024 ed. - Page 24 DATA MODUL AG Landsberger Str. 322 DE-80687 Munich - Germany Phone: +49-89-56017-0 Fax: +49-89-56017-119 www.data-modul.com Logistics, Production & Services: DATA MODUL Weikersheim GmbH Lindenstrasse 8 DE-97990 Weikersheim - Germany Phone: +49-7934-101-0 Fax: +49-7934-101-101 Subsidiaries & Sales Offices: Germany – Hamburg Germany –...
