CORA E3VR-P Assembly/Mounting Instructions

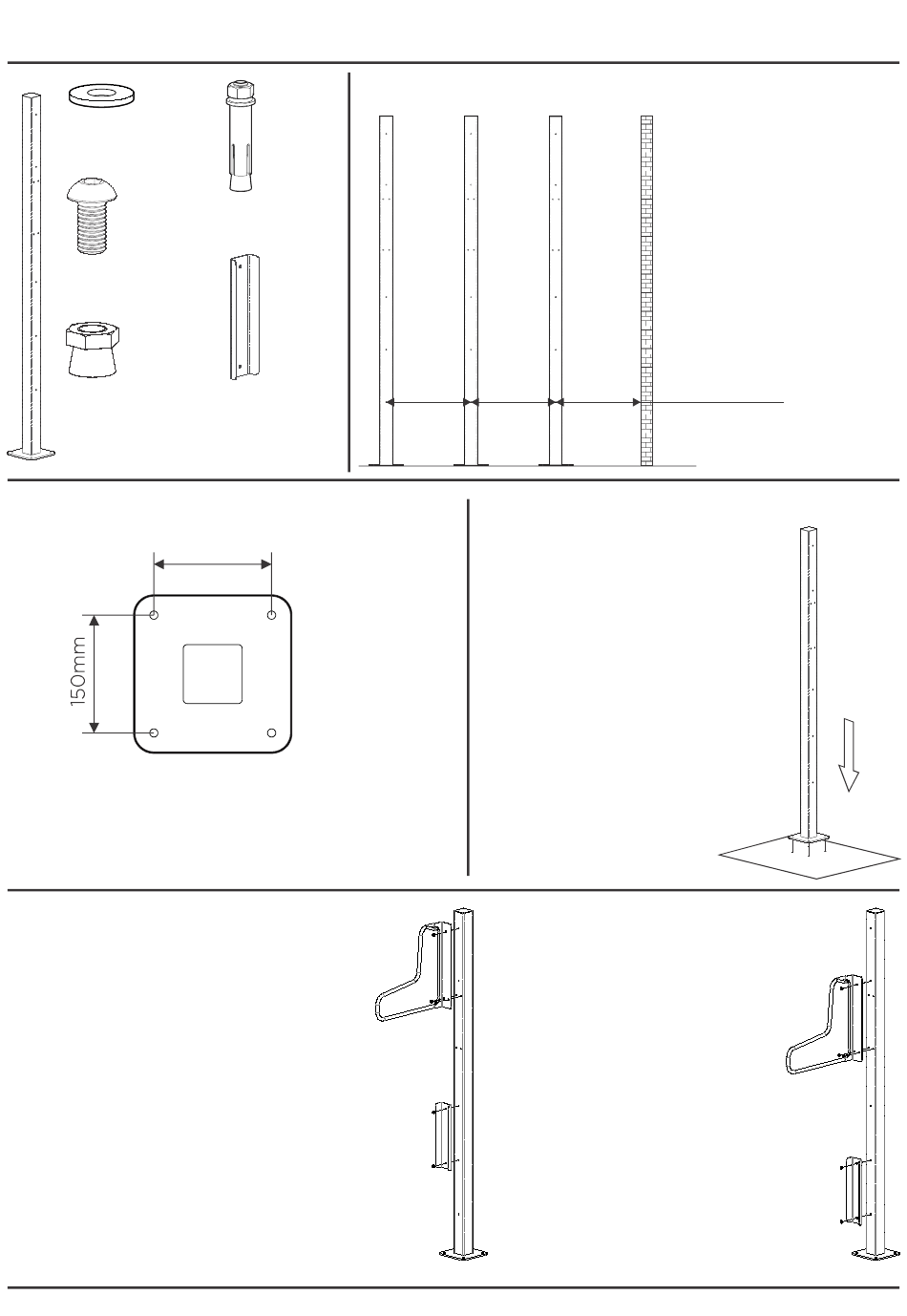

Assembly & Post Mounting Instructions
Cora Bike Rack - E3VR-P
Washer to go
under screws
X10
M8 Security Screws
for Rack & Cradle
mounting X10
M8 Shear nuts
X4
Floor mounted
post (EV3R-P) X1
2. Drill holes in floor for location of anchor bolts
Use dimensions above for anchor bolt drill hole
locations
Drill or core hole 10mm diameter and 80mm min.
depth
4. E3VR/ E3VR-F Post mounting
There are upper and lower mounting
positions on each post.
Use only the post mounting fixings
included with the E3VR-P post
Do not use the wall mount fixings
included with each E3VR or E3VR-F rack,
but keep the security screw tool bit.
NOTE: The E3VR-P includes fixings and
rear wheel cradles for use on both sides of
post. You may only require fixings and
rear wheel tray for single sided use.
Cora Bike Rack - Australia's Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878
M8 Anchor Bolts
X4
Rear Wheel Cradle
X2
150mm
1. If mounting multiple posts, measure mounting distance between
posts and other obstructions
3. Fix post to floor
Locate post in position
Insert four (x4) anchor bolts into
holes ensuring washer is firmly
against post base plate
Tighten anchor bolts with
standard supplied nut
Gently removed standard nut
from anchor and replace with
supplied four (X4) shear nuts
Tighten shear nuts until head
snaps off
Rack in top position
Rack in lower position
To comply
(2015) minimum 500mm
spacing between posts
centres and to edge of
walls or other obstructions
OR minimum 400mm
spacing between posts
centres and to edge of
walls or other obstructions
(this will not comply to
AS2890.3)
min.500mm
spacing between
posts or from walls
If rack is in top location, rear
wheel cradle should use upper
two holes in base of post
Use supplied security screws
with one (1) screw and one (1)
washer per hole
If rack is in bottom location,
rear wheel cradle should use
lower two holes in base of
post
Use supplied security screws
with one (1) screw and one (1)
washer per hole
with AS2890.3
Rev 3.00 Sept 2016 ©
