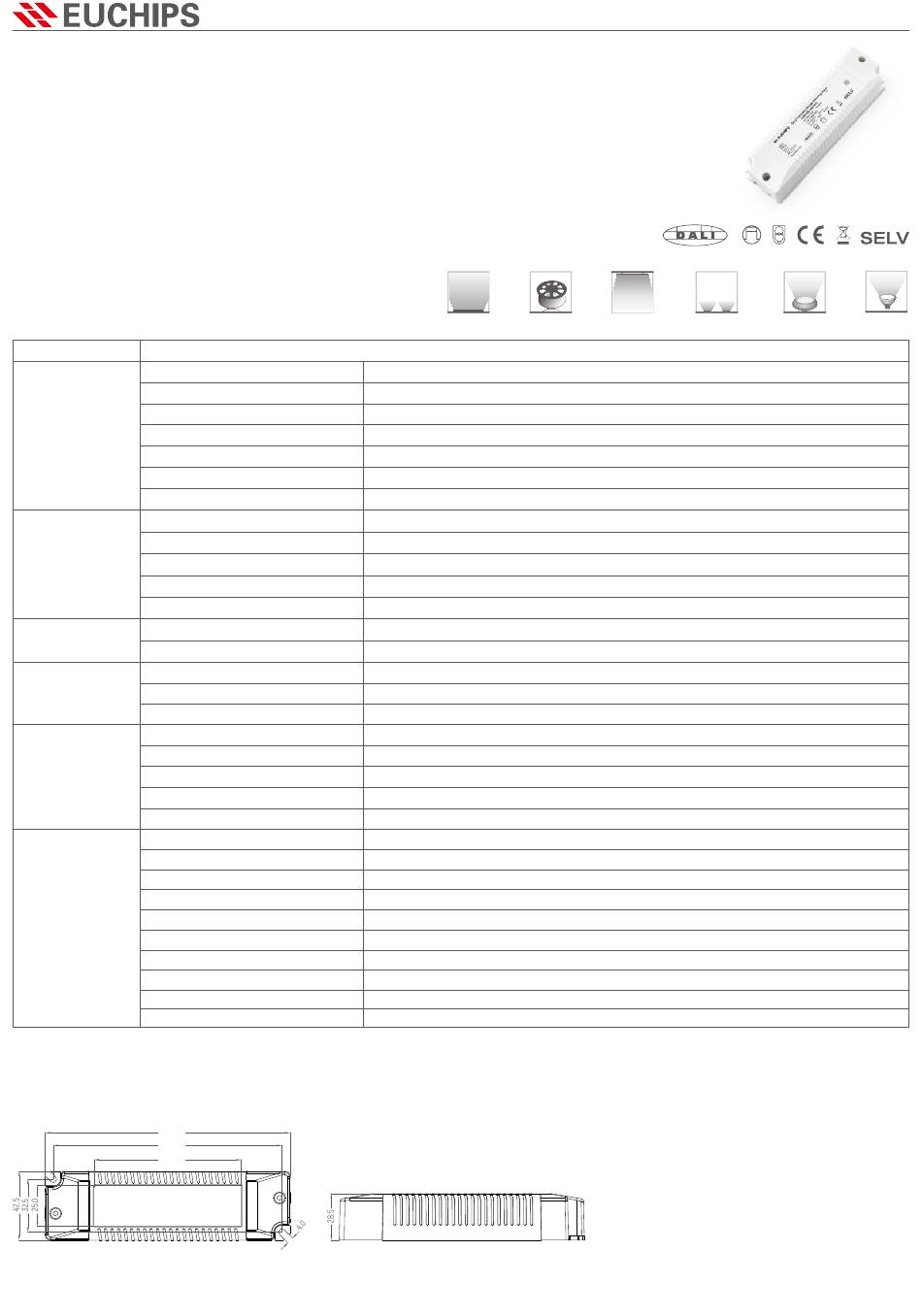

EUCHIPS EUP24D-1H24V-0 Quick Start Manual

EUP24D-1H24V-0
(Product No.:102200011101)
Summary
EUP24D-1H24V-0 is a constant voltage mode output LED driver and complies with DALI standard protocol IEC 62386.
This driver can be connected to DALI main controller or Touch DIM to achieve a smooth dimming effect.
Product Features
· Single channel constant voltage output,1A Max
· Meet DALI protocol IEC 62386
· Support Touch DIM function
· Dimming effect smooth, no flicker
· Over temperature protection, short circuit protection, overload protection
· IP20, suitable for indoor LED lighting application
Technical Paramaters
Model
EUP24D-1H24V-0
Efficiency
Voltage
Frequency Range(Hz)
Input
Power Factor
THD(full load)
AC Current(max)
Inrush Current(max)
Current(A)/Voltage (VDC) Power(W)
R & N (Max)
Channel
Output
Current Tolerance
Turn on delay Time
Dimming Type
Function
Dimming Range
Over temperature
Protection
Over load
Short Circuit
Withstand Voltage
Safety& DALI Standard
EMC Safety Standards
EMC Emission
EMC Immunity
Working Temp.
Storage Temp., Humidity
tc
Material
IP Rating
Others
Lifetime
Warranty Condition
Switch Cycle
Packing(weight)
Dimension
Dimension(mm)
150.0
140.5
90.5
User's manual: 2019-9
Application
Wall Washer LED Strip Light
>85%@230VAC,Full load
220VAC-240VAC
50/60Hz
≥0.95@115VAC,Full load
<10%@230VAC, Full load
0.15Amax@230VAC
Cold start,15A(twidth=40us measured at 50% Ipeak) @230VAC
1A/24VDC/24W
400mVp-p
1
±3%
<1.5s, at230Vac
DALI Dimming / Touch-dim
1%-100% Dimming to off
Shut down and auto-restart after normal temperature
Hiccup, recovers after fault condition is removed
after fault removed Close output ,the output current recovers automatically
I/P-O/P: 3000VAC/1min/5mA
IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 1.0
EN61347, GB19510
EN50515, EN61000-3-2
EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
-20℃~50℃
-40℃~85℃, 20-90%RH
90℃
PC
IP20
30,000h@tc:80℃
3 years
>15,000 times
Net weight: 150g±5%/PCS; 50PCS/Carton;11.75kg±5%/Carton; Carton Size: 374*314*166mm(L*W*H)
150*43*29mm（L*W*H）
1/2
DALI Constant Voltage Dimming Driver
LED Tube Underground Light AR111 Venture Light
MR16
