Balmani BMSS Installation Manual

Modular shower system
Hide thumbs Also See for BMSS:

Advertisement

Quick Links

Tools needed
Disclaimer
If you install the product in a way that differs from this manual, this will void all
guarantees. Before installation check that the product meets all your requirements
and is not damaged. By proceeding with installation, you accept the condition of the
product.
Disclaimer
Indien u het product plaatst op een manier die afwijkt van deze handleiding, vervalt
alle garantie. Controleer voor plaatsing of het product aan al uw eisen voldoet en niet
beschadigd is. Indien u overgaat tot plaatsing, aanvaardt u de staat waarin het product
zich bevindt.
INSTALLATION GUIDE
INSTALLATIEGIDS
GUIDE D'INSTALLATION
MONTAGEANLEITUNG
Clause de non-responsabilité
Si vous installez le produit d'une manière différente de celle présentée dans ce manuel,
toutes les garanties seront invalidées. Contrôlez avant le placement si le produit répond
à toutes vos exigences et n'est pas endommagé. En procédant au placement, vous
acceptez l'état dans lequel se trouve le produit.
Haftungsausschluss
Wenn Sie das Produkt nicht genau nach den Angaben in dieser Montageanleitung ein-
bauen, verfällt die Garantie. Überprüfen Sie vor dem Einbau des Produkts, ob sämtliche
Voraussetzungen erfüllt sind und das Produkt nicht beschädigt ist. Sobald Sie mit der
Montage beginnen, sehen Sie, in welchem Zustand sich das Produkt befindet.
BMSS
Balmani Modular Shower System
acid-free
silicone
Ø28
43980
18732_INSTALL_INT_ver2024.1.6

Advertisement

loading
Need help?

Need help?

Do you have a question about the BMSS and is the answer not in the manual?

Questions and answers

Summary of Contents for Balmani BMSS

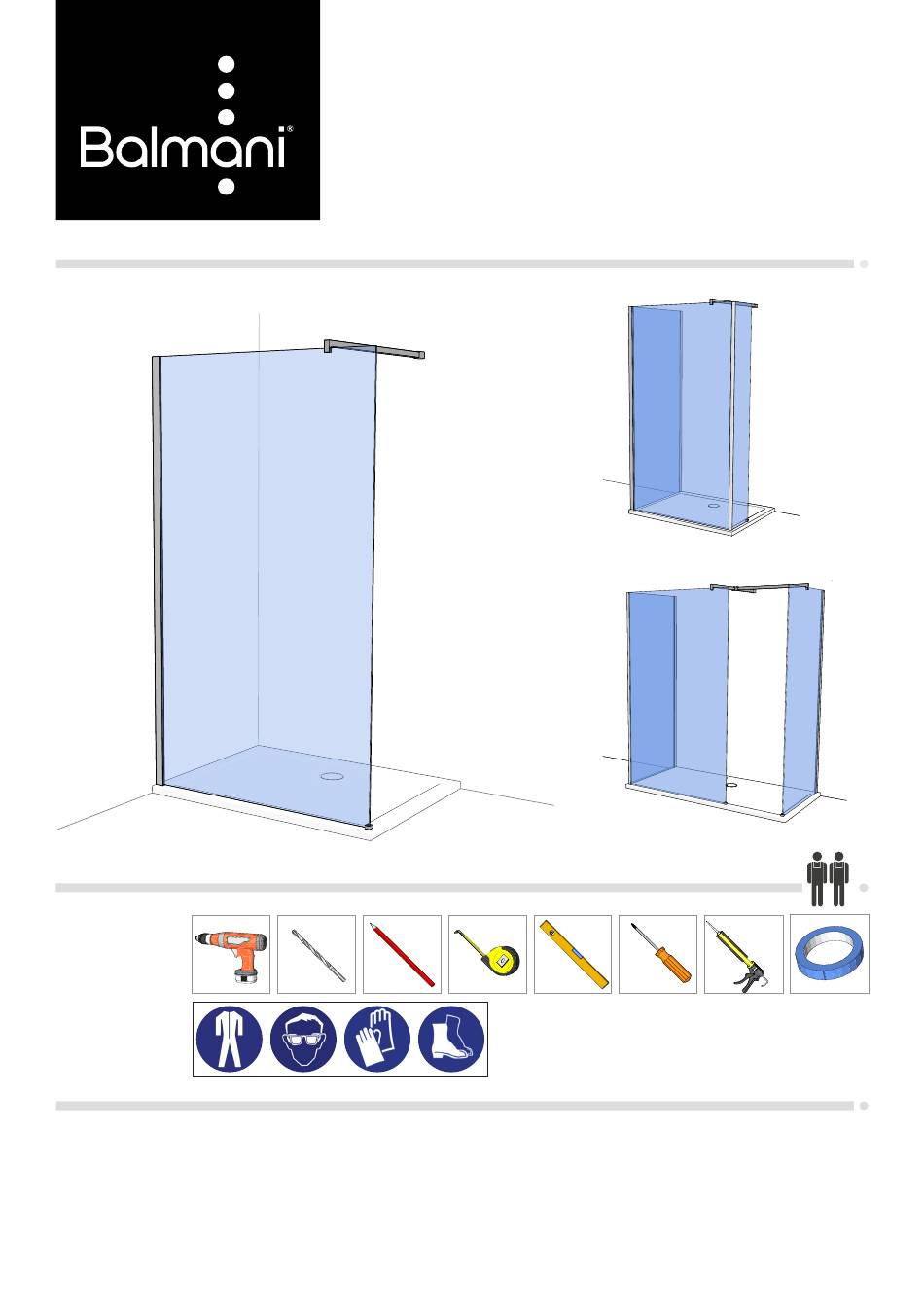

  • Page 1 INSTALLATION GUIDE INSTALLATIEGIDS GUIDE D’INSTALLATION MONTAGEANLEITUNG BMSS Balmani Modular Shower System Tools needed acid-free silicone Ø28 43980 18732_INSTALL_INT_ver2024.1.6 Disclaimer Clause de non-responsabilité  If you install the product in a way that differs from this manual, this will void all Si vous installez le produit d’une manière différente de celle présentée dans ce manuel, guarantees.
