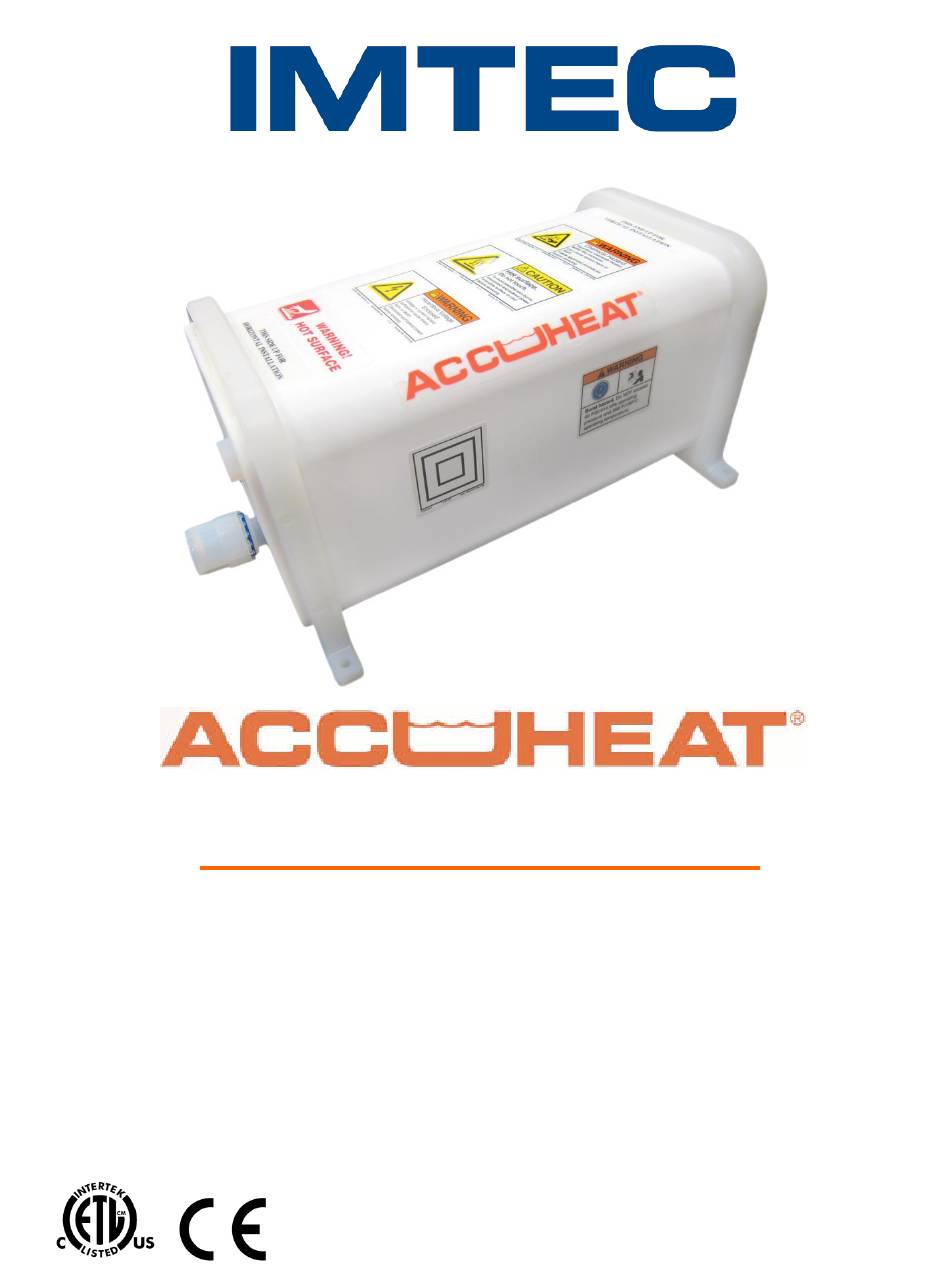

PFA I

-L

INE

EATERS

NSTRUCTION

ANUAL

10-018-0041

ART

UMBER

Table of Contents

Need help?

Do you have a question about the ACCUHEAT PFA Series and is the answer not in the manual?

Questions and answers

Summary of Contents for IMTEC ACCUHEAT PFA Series

Page 1 PFA I EATERS NSTRUCTION ANUAL 10-018-0041 UMBER...
Page 2 All rights reserved. Any reprinting or unauthorized use without the written perm ission of IMTEC is expressly prohibited. This document contains proprietary information of IMTEC and is tendered subject to the conditions that the information: • be retained in confidence, •...
Page 3 N2 purge flow not applicable to PFA inline heater in PTFE housing, 2.3 & 5.1 Hence removed N2 Purge details, Section 4.2.1, 4.3.1& 4.3.2 6/26/2020 IMTEC Acculine LLC is now IMTEC Acculine INC. IMTEC Acculine Accuheat PFA Inline Heater Instruction Manual Part No. 10-018-0045...
Page 4 Revision History Accuheat PFA THIS PAGE INTENTIONALLY LEFT BLANK. Part No. 10-018-0045 IMTEC Acculine Accuheat PFA Inline Heater Instruction Manual...
Page 5: Preface
To do so may seriously damage your product or equipm ent. Intended Use of this Equipment IMTEC’s Accuheat PFA Inline Heaters are not to be used for any purpose other than for which they were designed. What product is to...
Page 6: Environmental Information
Never attempt operations or repairs involving hazardous chemicals alone. Always have another person within sight and voice range. • Protect eyes, face, hands, and body with appropriate personal protective equipment. Part No. 10-018-0041 IMTEC Acculine Accuheat PFA Inline Heater Instruction Manual...
Page 7: Before Powering Up The Heater
Cleanroom Requirements Specific cleanroom requirements can vary widely according to the class rating, i.e., Class 10, Class 100, etc. IMTEC’s products qualify as Class 1. While performing maintenance or operating the system, follow your company's policies and procedures for this equipment.
Page 8: Preventive Maintenance
Boldface text indicates the actual words used in a screen command or on an equipment label. Part No. 10-018-0041 IMTEC Acculine Accuheat PFA Inline Heater Instruction Manual...
Page 9: How To Use This Manual
Preface, includes the intended use and audience, basic safety considerations, customer support, conventions used in this manual, how this manual is organized, standard IMTEC Accuheat warranty, and a table of contents. Section 1, Introduction, is a description of the various models for the Accuheat heater including: a theory of operations, specifications, and facility requirements.
Page 10: Terms And Conditions
2. This Warranty, with the exception noted above, is limited as follows: In the event of a defect, IMTEC agrees, at its option, to repair or replace the defective unit or refund the purchase price and IMTEC’s liability is limited thereto.
Page 11: Warranty Exclusions
Accuheat PFA Inline Heater Preface Warranty Exclusions 1. While other Exclusions may apply, IMTEC specifically does not guarantee, and accepts no responsibility for the following: • Failure caused by incorrect plumbing: for example, installing with flow opposite to the direction indicated in this manual and on the Accuheat housing, or with piping elevations that may result in vapor-lock to the outlet flow.
Page 12 IMTEC’s liability is limited to the repair or replacement of such defective product OR refund of purchase price, at IMTEC’s sole option, as stated above. All claims must be made in a timely manner and within the warranty period to be considered valid.
Page 13: Table Of Contents
2.3.3 Power Modulator ............2–6 2.3.4 Thermal Snap Switch Information ........ 2–6 3. Product Inspection 3.1 Unpacking Considerations............. 3–1 3.2 Inspecting the Packaging ............3–1 3.3 Checking the Contents ............3–2 IMTEC Acculine Accuheat PFA Inline Heater Instruction Manual Part No. 10-018-0041...
Page 14 4.4.3 Connecting the Power Modulator ........ 4–10 4.4.4 Connecting the Heater Power and Sensors ....4–11 4.4.5 Use of the Accuheat without Imtec's Power Modulator . 4-12 4.4.6 Connecting the Heater Plumbing ........ 4–12 4.4.6.1 Installing IMTEC Fit-one Nuts ......4–13 Addendum –...
Page 15: Introduction
Accuheat PFA Inline Heater Introduction 1–1 INTRODUCTION This section describes the IMTEC Accuheat PFA series of In-Line Heaters. This section includes the following information: • Overview of the basic models • Components Overview • Specifications • Facilities Requirements Overview – Basic Model The Accuheat PFA is an efficient in-line heater combining low cost- of-ownership with an extended service life.
Page 16: Power Modulators
The heater module can be interconnected with other Accuheat modules to provide an optimum configuration for temperature rise, fluid flow and three-phase electrical load balancing. A special version of the IMTEC Model 951 Controller is also available for process control. 1.1.2 Power Modulators The basic purpose of power modulators is to extend the life of the heater element.
Page 17: Theory Of Operation - Heat-Up Times
The heat-up time curves in the following figure, reflect the amount of time for 30 liters of DI water to raise to operating temperatures using an IMTEC PFA In-Line Heater. The results do not include heat loss from plumbing or other system components. A 6.0kw model was used to reflect these times.
Page 18: Specifications
20A, 15A 12.5A, 12.0A AH4500P 240 VAC, 1PH, 50/60 HZ 220V,230V,240V 17.2A, 18.0A, 18.8A 400V 400 VAC, 3PH, 50/60 HZ 6.5A 208 VAC, 1PH, 50/60 HZ 208V AH6000P 28.8A Part No. 10-018-0041 IMTEC Acculine Accuheat PFA Inline Heater Instruction Manual...
Page 19 Do not exceed 40 PSI / 275 kPa operating pressure and 356 F / 180 C operating temperature. Do not exceed 550° F / 260° C Power Modulation temperature under any circumstances. This concludes Section 1, Introduction. IMTEC Acculine Accuheat PFA Inline Heater Instruction Manual Part No. 10-018-0041...
Page 20: Safety Requirements
It is recommended that users familiarize themselves with Semi S3 guidelines covering the operation of heated chemical systems. IMTEC’s Accuheat heaters are not to be used for any purpose other than for which they were designed. What product is to be produced...
Page 21: Electrical Safeguard Recommendations
PST, Monday through Friday Electrical Safeguard Recommendations Refer to this section and the attached schematics for electrical safety information. If you are using a non-IMTEC controller, refer to the controller manufacturer’s documentation for electrical safety information and recommendations. The Equipment that this heater will be installed in mu st have a Semi S2-approved EMO circuit, where “the EMO actuator (button), when...
Page 22: In-Use Safety Precautions
Do not exceed 40 PSI / 275 kPa operating pressure and 356 F / 180 C operating temperature. Do not exceed 550° F / 260°C Power Modulation temperature. IMTEC Acculine Accuheat PFA Inline Heater Instruction Manual Part No. 10-018-0041...
Page 23 Then maintain recirculation for at least three minutes to ensure withdrawal of stored heat from the heater. • The minimum flow rate is determined by Imtec given the particular parameters submitted by customer at time of order. Do not operate below this flow rate.
Page 24: Chemical Safety Requirements
Up to 2000 meters (6561.66 feet). MAINS supply voltage fluctuations up to ±10% of the Supply Voltage nominal voltage. Transient over voltages typically present on the MAINS supply. Pollution Applicable rated pollution degree 1 IMTEC Acculine Accuheat PFA Inline Heater Instruction Manual Part No. 10-018-0041...
Page 25: Power Modulator
The snap switch UL rating for 100,000 cycles is 10A at 120VAC or 10 amps at 240VAC. The CSA rating of 100,000 cycles allows 5A (120VA) for 120 and 240VAC. Part No. 10-018-0041 IMTEC Acculine Accuheat PFA Inline Heater Instruction Manual...
Page 26: Product Inspection
Before opening the shipping container, please look for evidence of transportation damage. It is your responsibility to notify the shipper promptly of any claims of freight damage. Please contact IMTEC also, so that we may be of assistance with an expeditious repair or replacement of the damaged parts.
Page 27: Checking The Contents
Keep the IMTEC packaging and box in which the system and any options were shipped. If the system should ever need to be returned to IMTEC, it must be returned in an appropriate container to minimize risk of shipping damage. If the original container is not available, purchase a packing kit from IMTEC for a nominal fee.
Page 28: Installation Procedures
A controller is necessary for process temperature control and over - temperature protection. If you use a non-IMTEC controller, that controller must drive a separate relay circuit for heater power. The...
Page 29: Plumbing Recommendations
The tubing between the heater and pump should have a “looped” run rather than a lateral run. Looped runs decrease pump vibrations from stressing the plumbing connections (Figure 4-1). Part No. 10-018-0041 IMTEC Acculine Accuheat PFA Inline Heater Instruction Manual...
Page 30: Installation Procedures
The power modulator is an optional component but its function is critical to assuring reliable operation. Customers choosing not to use Imtec’s power modulator must perform the same function as part of their control system. Failure to do so will void the warranty.
Page 31: Installing The Accuheat In-Line Heater
Select a suitable location with a sturdy platform for m ounting the heater (IMTEC recommends the heater be installed within the wet- bench rear access chase). Heaters may be mounted vertically or horizontally.
Page 32: Horizontal Installation
12-o’clock position (Figure 4-3). Mount the heater to the platform in a level position (+1 at both “x” and “y” axes). ORIZONTAL NSTALLATION Figure 4–3. Side view of the Heater Horizontal Orientation Installation. CAUTION IMTEC Acculine Accuheat PFA Inline Heater Instruction Manual Part No. 10-018-0041...
Page 33: Vertical Installation
Do not install the heater without a minimum of a 0.5-inch air gap clearance on all sides ⎯ heat buildup and / or heater failure will result. 2. Ensure that the heater has at least a 0.5-inch (12mm) air gap clearance on all sides. Part No. 10-018-0041 IMTEC Acculine Accuheat PFA Inline Heater Instruction Manual...
Page 34: Connecting The Power Modulator
Output is 8 amps at 240VAC or 30 VDC maximum resistive load or 250VA and Output Power Specifications pilot duty, 120/240 VAC maximum inductive load. IMTEC part number 10-000-2812 for DIN Rail Mount – Limit Set Point 260°C ( 6 ) ( 7 ) ( 3 )
Page 35: Connecting The Heater Power And Sensors
The snap switch UL rating for 100,000 cycles is 10A at 120VAC or 10 amps at 240VAC. The CSA rating of 100,000 cycles allows 5A (120VA) for 120 and 240VAC. 4.4.5 Use of the Accuheat without Imtec’s Power Modulator As noted earlier the function of the power moduator is critical to assuring a safe and reliable installation.
Page 36: Connecting The Heater Plumbing
OUTLET port to the point of use. Failure to correctly plumb the heater will void the warranty! The Imtec Fit-One nuts should be tightened with a Fit-One wrench for maximum security. Please read and follow the guidelines below.
Page 37 FIT-ONE wrench is available. Please contact your IMTEC representative.) 5. Repeat for the second connection ensuring that the flow direction corresponds to the “INLET” and “OUTLET” fittings as necessary. Part No. 10-018-0041 IMTEC Acculine Accuheat PFA Inline Heater Instruction Manual...
Page 38 Imtec. 6. Install brackets or other such support as necessary to eliminate any strain on the heater’s plumbing connections. This concludes Section 4, Installation Procedures. IMTEC Acculine Accuheat PFA Inline Heater Instruction Manual Part No. 10-018-0041...
Page 39: Operating Instructions
Do not exceed 40 PSI / 275 kPa operating pressure and 356 F / 180 C operating temperature. Do not exceed 550° F / 260° C Power Modulation temperature under any circumstances. IMTEC Acculine Accuheat PFA Inline Heater Instruction Manual Part No. 10-018-0041...
Page 40 110% of the fluid the heater in the entire recirculation loop including the process vessel. It is strongly advised that this enclosure be protected with interlocks to prevent operation if the enclosure is not properly sealed. Part No. 10-018-0041 IMTEC Acculine Accuheat PFA Inline Heater Instruction Manual...
Page 41: Controls And Indicators
Then maintain recirculation for at least three minutes to ensure withdrawal of stored heat from the heater. • The minimum flow rate is determined by Imtec given the particular parameters submitted by customer at time of order. Do not operate below this flow rate.
Page 42: Shut-Down
This concludes Section 5, Operating Instructions. CAUTION POTENTIAL PRODUCT OR EQUIPMENT DAMAGE! If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. Part No. 10-018-0041 IMTEC Acculine Accuheat PFA Inline Heater Instruction Manual...
Page 43: Troubleshooting And Maintenance Procedures
TROUBLESHOOTING and MAINTENANCE PROCEDURES Troubleshooting Procedures Most problems related to heating involve the “non”-IMTEC supplied control system and interlock systems that are used in conjunction with the heater. Most troubleshooting is performed to determine if the heater has failed or whether the symptoms are related to an external system.
Page 44 This ends the Troubleshooting Procedures. If the heater needs to be returned to IMTEC for servicing go to Section 6.3, Removing the Heater. Part No. 10-018-0041 IMTEC Acculine Accuheat PFA Inline Heater Instruction Manual...
Page 45: Removing The Heater
CAUTION POTENTIAL PRODUCT OR EQUIPMENT DAMAGE! A heater that has suffered an electrical failure may be returned to IMTEC for economical repair. However, damage associated with the heater core will significantly increase repair costs and may result in the heater not being able to be repaired.
Page 46: Return Authorization Procedures
• Obtaining a Return Authorization (RGA#) • Packing the heater for return 6.4.1 Return Policies 1. All heaters should be returned in IMTEC shipping containers the original container is no longer available, a shipping container can be purchased for a nominal fee from IMTEC Customer Service.
Page 47: Obtaining A Return Authorization Number
Repair Purchase Order Number (used for tracking; there can be no charge amount until the heater has been evaluated by IMTEC). 2. Call IMTEC Customer Service at 510-770-1800 and request an RGA number. 3. If needed, order a shipping container kit and / or approved plastic bags.
Page 48 18. Mark the RGA number legibly on the sides of the container. 19. Ship the container to IMTEC. NOTE IMTEC provides pick-up service for products requiring repair in the Santa Clara Valley. Call IMTEC Customer Service for information. If you have any questions about IMTEC’s return authorization policies or procedures, please contact IMTEC at: IMTEC Acculine, INC.
