Summary of Contents for Eagle Eye Power Solutions LB-50-750A

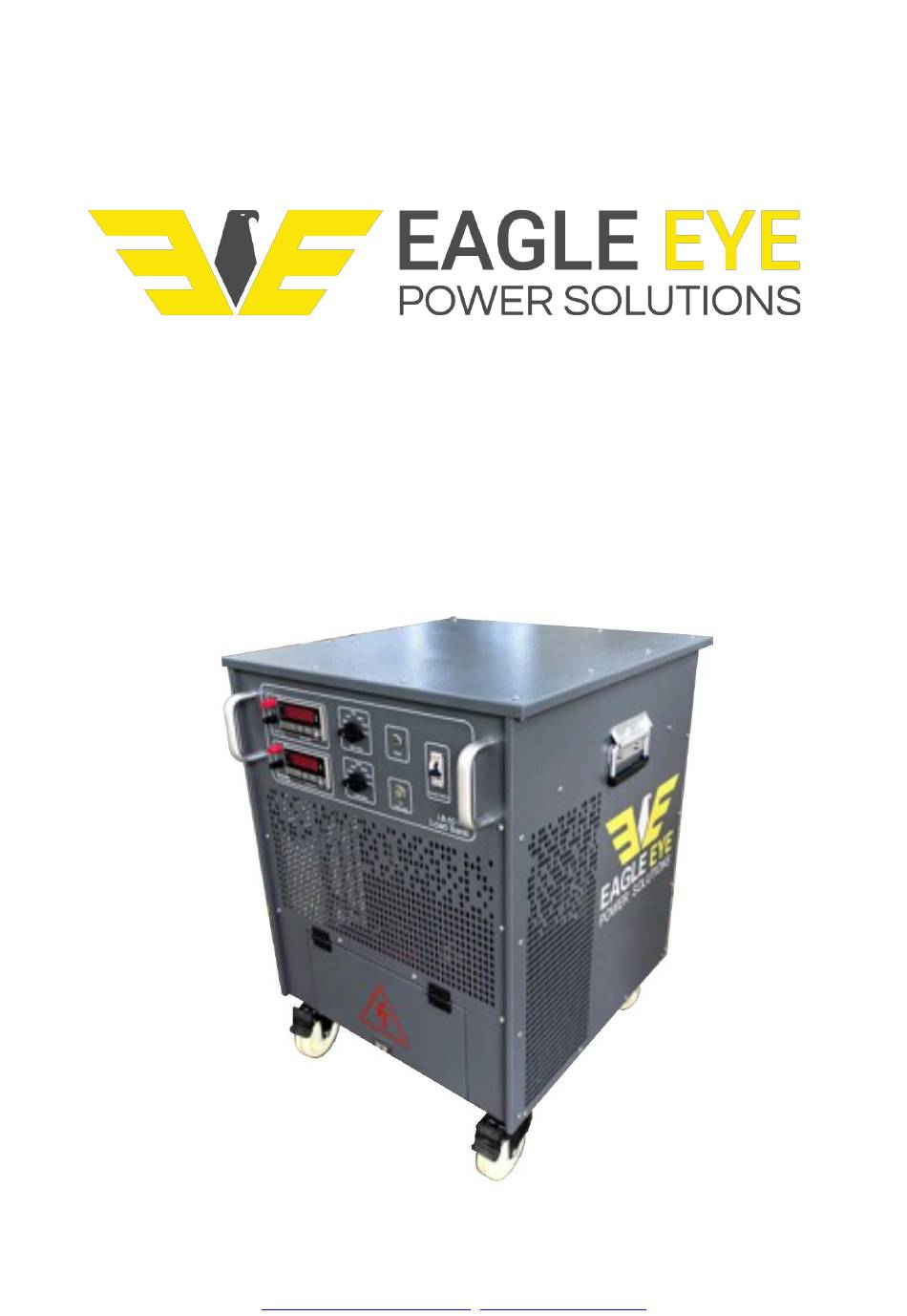

- Page 1 LB-50-750A Welding Load Bank User Manual Eagle Eye Power Solutions LLC 6306 Eastwood Court • Mequon, WI 53092 • 1-414-962-3660 info@eepowersolutions.com• eepowersolutions.com...
-
Page 2: Table Of Contents
Catalog Catalog ............................1 1 Important Safety Instructions ....................2 2 Product Overview ......................... 3 2.1 Foreword ........................3 2.2 Technical Parameters ....................3 2.3 Measuring Control Function ..................4 2.4 Protection ........................4 3 Installation ..........................5 3.1 Appearance ......................... 5 4 Installation and Operation .................... -
Page 3: Important Safety Instructions
1 Important Safety Instructions ◆ Before using the machine, please read the User's Manual carefully, and operate the machine according to the manual which should be kept properly for future reference. ◆ Please take attention to the section start with “Caution” and “Warning”. ◆... -
Page 4: Product Overview
2 Product Overview 2.1 Foreword The LB-50-750 welding load bank provides an efficient and reliable load for troubleshooting, calibrating or demonstrating welding power sources and generators. 2.2 Technical Parameters Model LB-50-750 Load Bank Rated Voltage Maximum voltage is 50 VAC/VDC Can discharge for a long time at 50V. -
Page 5: Measuring Control Function
Transportation Base with casters (4 in), side with handles. Color Pantone Cool Gray 11 C Weight About 80kg Operational Site Indoor Ambient Temperature -15℃ - +50℃ ≤95% Relative Humidity ≤2520 meters Altitude Atmospheric Pressure 86～106kPa 2.3 Measuring Control Function (1) Load test: it can load any combined current within the rated value, and measure and display the voltage, current and other parameters of the tested equipment. -
Page 6: Installation
3 Installation 3.1 Appearance 3.1.1 Voltage meter: Displays the measured voltage data. 3.1.2 Voltage sampling line: +: Red, used to collect the positive voltage -: Black, used to collect the negative voltage 3.1.3 Current meter: Displays the measured current data. 3.1.4 Current sampling line:... - Page 7 +: Red for collecting positive current -: Black, used to collect negative current 3.1.5 Gear switch: There are six gear positions, namely 25,50,75,100,125,150A, the switch points to that gear, and the device is loaded according to the corresponding gear. 3.1.6 Gear switch: There are six gear positions, namely 100,200,300,400,500,600A, the switch points to that gear, and the device is loaded according to the corresponding gear.
-
Page 8: Installation And Operation
4 Installation and Operation 4.1 Installation 4.1.1 Install testing cable: The machine is connected to the device under test through the load input terminal, and the test cable is connected to the input terminal of the machine and the output terminal of the device under test. Connect both ends of the cable marked with red to the IN(+) phase of the load power input terminal of the local device and the positive terminal of the output terminal of the device to be measured, and connect the IN (-) phase of the cable to the negative terminal of the... -
Page 9: Simple Operation
4.2 Simple Operation (1) Start the device to be tested: After all cables are correctly connected, power on the device to be tested. (2) Start the equipment: Pull the < power switch > upward, the equipment is powered on to start, press the < fan power switch > the fan starts to run. (3) Loading: Point the <... -
Page 10: After-Sale Service
3 Do not open the machine without prior instruction, or the warranty will be void. Contact Us If you have any questions or comments, please contact Eagle Eye Power Solutions. You can reach our team any of the following ways.
