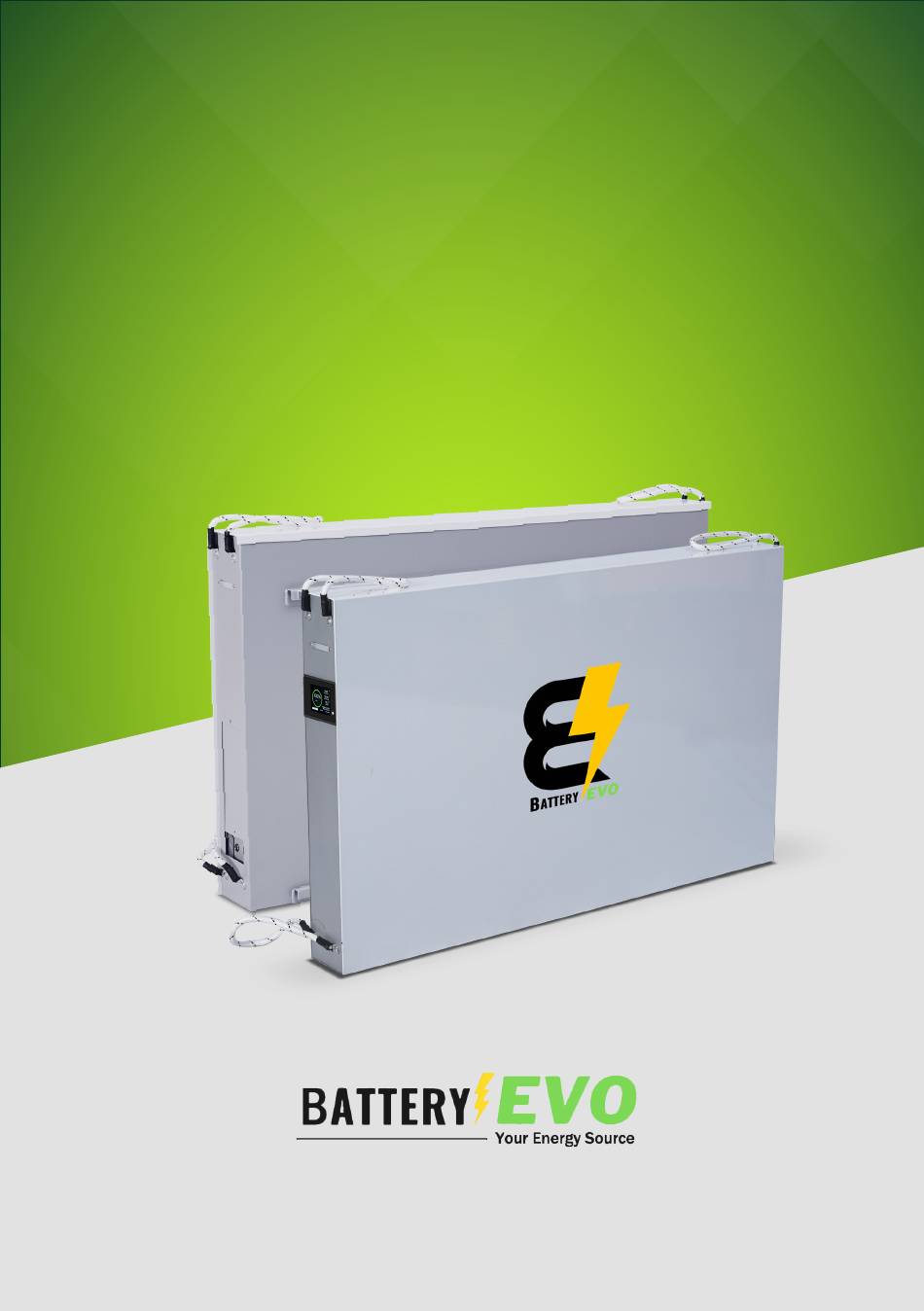

- Page 1 WHITE RHINO USER MANUAL INSTALLATION GUIDE Tel: +1 866-336-8386 Email: Support@BatteryEVO.com 48V WHITE RHINO USER MANUAL...
- Page 2 Contact Us Tel: +1 866-336-8386 Email: Support@BatteryEVO.com BatteryEVO Inc. Technical Support Team 8966 Mason Ave. Chatsworth, California 91311 48V WHITE RHINO USER MANUAL...
-
Page 3: Table Of Contents
Features & Applications Product Specifications 5 Weight & Dimensions BMS Specs Cell Specs Technical Safety Guideline Installation 9 Parts & Components Wall Mount Floor Stand Display Screen Overview BMS Codes Recycling 15 Warranty Registration 15 Warnings & Precautions 48V WHITE RHINO USER MANUAL... -
Page 4: Introduction
Introduction BatteryEVO’s 48V WHRHN is a massive powerwall. This user manual is designed to provide you with an understanding of the specs, features, capabilities, and installation of this 14 kilowatt-hour, 276 amp-hour battery. Read and take note of all safety information prior to installing or operating your battery. This document applies only to the BatteryEVO 48V WHITE RHINO –... -
Page 5: Product Specifications
4.15 ery voltage Overplay the protection voltage Overplay protection delay 1000 2000 3000 time Overplay protection recovery Discharge voltage Protection Charge overcurrent protection value Charge overcurrent delay Charge overcurrent release Delayed 32S release recovery condition 48V WHITE RHINO USER MANUAL... - Page 6 Charge the low temperature protection release value Temperature Protection Discharge high temperature protection value Discharge high temperature protects the release value Discharge low temperature protection value Discharge cryogenic protection release value Resistance in the discharge Resistance circuit 48V WHITE RHINO USER MANUAL...
- Page 7 BMS Compatible Inverters · Communication Port Brand Canbus RS485 √ √ BatteryEVO √ √ Pylon √ √ Megarevo √ √ DeYe √ √ Growatt √ √ MUST √ √ Luxpower √ Sol-Ark 48V WHITE RHINO USER MANUAL...
-
Page 8: Cell Specs
Electrochemical 1/3C, BOL 138.5 Minimum Capacity (Ah) Performance 1C, BOL 137.8 1/3C, BOL 443.2 Minimum Energy (Wh) 1C, BOL 427.2 Charging -20 ≤T< 65 Working Temperature Discharging -30 ≤T< 65 (°C) Storage -40 ≤T< 65 48V WHITE RHINO USER MANUAL... -
Page 9: Technical Safety Guideline
(B1 & B2) (22.75 in.) (drywall) (MS2) (2.75 (A1 & A2) (35.8 in.) (MS1) (2.3 in.) in.) 1x Floor Stand (FS) 2x Crossbar Plates 4x Pan Screws (PS) (43.3 x 11.75 x 32.5 in.) (CP) (0.75 in.) 48V WHITE RHINO USER MANUAL... -
Page 10: Wall Mount
(MS1 or MS2), as seen in Figure 1. This will be the bottom crossbar of your wall mount. Fig. 2 (Spreader bars – B1 & B2 – are not weight-bearing, and are intended for alignment purposes only) 48V WHITE RHINO USER MANUAL... - Page 11 (Image shows top of B2 and right side of A1) Step 4: Attach rope handles (RH) Fig. 4 to sides of WHITE RHINO using the flat top screws (FS) provided, as seen in Figure 4. 48V WHITE RHINO USER MANUAL...
-
Page 12: Floor Stand
Set first WHITE RHINO onto one side of floor stand. The WHITE RHINO should set cleanly into the cutout section of the white mounting bar on the inside the floor stand (FS), as seen in Figure 6. 48V WHITE RHINO USER MANUAL... - Page 13 Once crossbars are secured, you may unlock wheels and move your mounted WHITE RHINOs freely. 48V WHITE RHINO USER MANUAL...
-
Page 15: Bms Codes
In the unlikely event you are having an issue with one of our batteries we have developed a straightforward warranty & return policy: • For all returns or warranty claims contact support@batteryevo.com. • 30-day money back guarantee. Returns of undamaged batteries unrelated to warranty claims may be issued full refunds less a 20% restocking fee. - Page 16 To submit a warranty claim, please contact us directly at support@ » batteryevo.com. The battery may be required to be shipped back to our BatteryEVO warehouse in Chatsworth, California for further inspection. • We offer a 30-day warranty on all cells, accessories & complimentary products (Anderson connectors, wiring, etc.).
-
Page 17: Warnings & Precautions
• Battery compartment and any material within two feet should be noncombustible. • Keep sparks, flames, and metal objects away from batteries • Have a Class ABC fire extinguisher on the premises 48V WHITE RHINO USER MANUAL... - Page 18 Tel: +1 866-336-8386 Email: Support@BatteryEVO.com 48V WHITE RHINO USER MANUAL...
