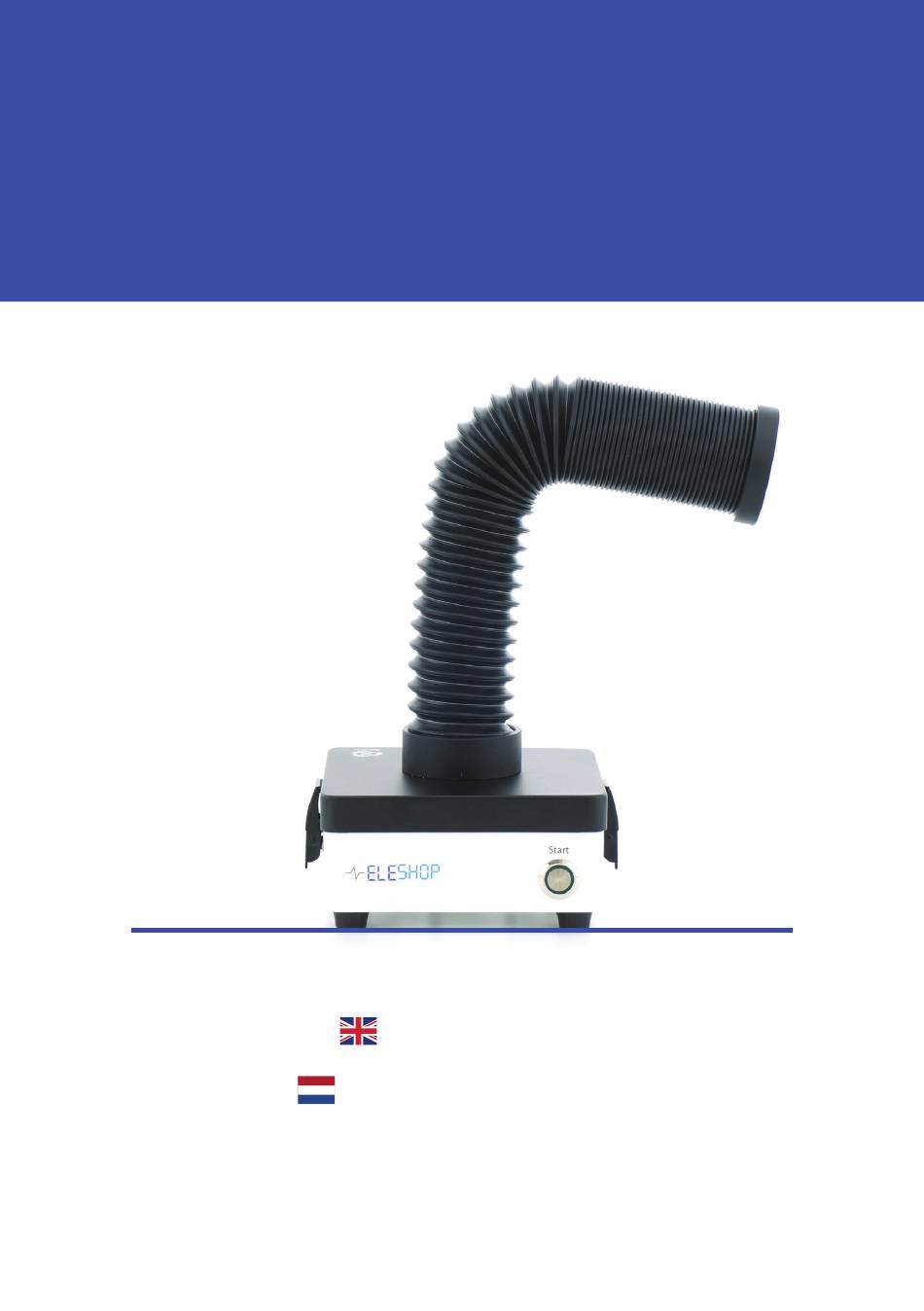

- Page 1 ELE-FU1 solder fume extractor ELE-FU1 soldeerdampafzuiging MA N UAL HANDLE I DI NG V1.0.0...
- Page 2 This page is left empty intentionally. Deze pagina is met opzet leeg gelaten. - 2 -...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Inhoudsopgave Safety precautions - Veiligheidsvoorschriften ............... 4 Packing contents - Inhoud verpakking ................6 Product description - Productomschrijving ..............6 Specifications - Specificaties ....................7 Product overview - Productoverzicht ................8 Operation instructions - Bedieningsinstructies ............9 Filter use & maintenance - Filtergebruik en -onderhoud........... 11 Troubleshooting - Probleemoplossing ................ -
Page 4: Safety Precautions Veiligheidsvoorschriften
This manual contains important safety instructions that must be followed at all time in the operation, and in the storage/working environment, of the ELE-FU1 solder fume extractor. To ensure your personal safety, and ensure that the performance of this product is optimal in its environment, please read this manual carefully before using. - Page 5 Deze handleiding bevat belangrijke veiligheidsinstructies die u te allen tijde moet volgen tijdens gebruik van de ELE-FU1 soldeerdampafzuiging. Zorg voor uw eigen veiligheid en die van uw omgeving. Voor optimaal gebruik, zorg ervoor dat het product wordt gebruikt in de juiste omgeving en omstandigheden.
-
Page 6: Packing Contents Inhoud Verpakking
Gebruikershandleiding PRODUCT DESCRIPTION Productomschrijving The ELE-FU1 fume extractor conforms to the applicable CE requirements. The device is suitable for applications where fumes are produced such as smoke, peculiar smells, poisonous and harmful gas, soldering fumes, etc. With the multi-step filter design and powerful suction, the absorbing efficiency and filtration ratio can reach 95.0%. -
Page 7: Specifications Specificaties
SPECIFICATIONS Specificaties Specification ELE-FU1 solder fume extractor Power 15 W Input voltage 220 V Filter efficiency 95.0% of particles >0,3μm Noise level ≤ 61 dB Airflow 23 m Weight extractor without power adapter 1.2 kg Dimensions extractor unit 153 x 153 x 76.5 mm... -
Page 8: Product Overview Productoverzicht
PRODUCT OVERVIEW Productoverzicht / Inlaat lucht Air inlet Top cover / Deksel Power adaptor input (back side) / Stroomadapter-aansluiting (achterkant) / AAN/UIT-knop met LED-indicator Power button with LED indicator - 8 -... -
Page 9: Operation Instructions Bedieningsinstructies
OPERATION INSTRUCTIONS Bedieningsinstructies 06.1 Installation of filters One can open the top cover to install the three different filters. The carbon filter sits at the bottom. The HEPA filter is placed on top of that. Last, the prefilter is the filter at the top. Make sure the filters are correctly installed and positioned. - Page 10 06.3 Bedieningsinstructies Verbind het apparaat met de stroomadapter aan de achterzijde van het apparaat. Druk op de AAN/UIT-knop aan de voorkant om het apparaat aan te zetten. Het apparaat zal direct de luchtstroom opbouwen naar het maximum niveau. De AAN/UIT-knop LED-indicator zal groen continu opgelicht zijn zolang het apparaat aan staat.
-
Page 11: Filter Use & Maintenance - Filtergebruik En -Onderhoud
FILTER USE & MAINTENANCE Filtergebruik & -onderhoud This product has three filter steps. At some moment each of the filters might have to be cleaned or replaced in order to guarantee a good purifying effect of the machine. The prefilter needs to be replaced most often. It is hard to give an exact timeframe of when each filter needs to be replaced. - Page 12 07.1 Pre-filter Het pre-filter zal het vaakst moeten worden vervangen. Dit filter bevindt zich bovenaan. De voorkant (ruwere kant) van het filter moet naar boven wijzen (het dichtst bij de lucht- invoer). Zodra het opgehoopte stof op het voorfilter meer dan 70% verzadigd is en niet meer gereinigd kan worden, vervang het filter dan door een nieuwe.
-
Page 13: Troubleshooting Probleemoplossing
TROUBLESHOOTING Probleemoplossing Make sure the power is switched off and the power cord is unplugged before inspecting or repairing the fume extractor. If any problems persists after checking the troubleshooting guide below, contact the supplier or manufacturer. The fume extractor still works, but the airflow is very weak and suction power is greatly reduced This is probably caused by something blocking the airflow inside the hose, or by saturated filter(s). -
Page 14: Warranty Garantie
WARRANTY Garantie The warranty period of this product starts from the date of purchase. Failures caused by improper use, such as improper handling and improper repair, modification or adjustment of the device are not covered by warranty. Maintenance costs are charged for repairs that exceed the warranty period, and the costs incurred for maintenance are the responsibility of the user. - Page 15 This page is left empty intentionally. Deze pagina is met opzet leeg gelaten. - 15 -...
- Page 16 For more information or the latest updates, please check eleshop.eu. Questions? Contact Eleshop. Voor meer informatie of de laatste updates, kijk snel op www.eleshop.nl. Vragen? Neem contact op met Eleshop.
