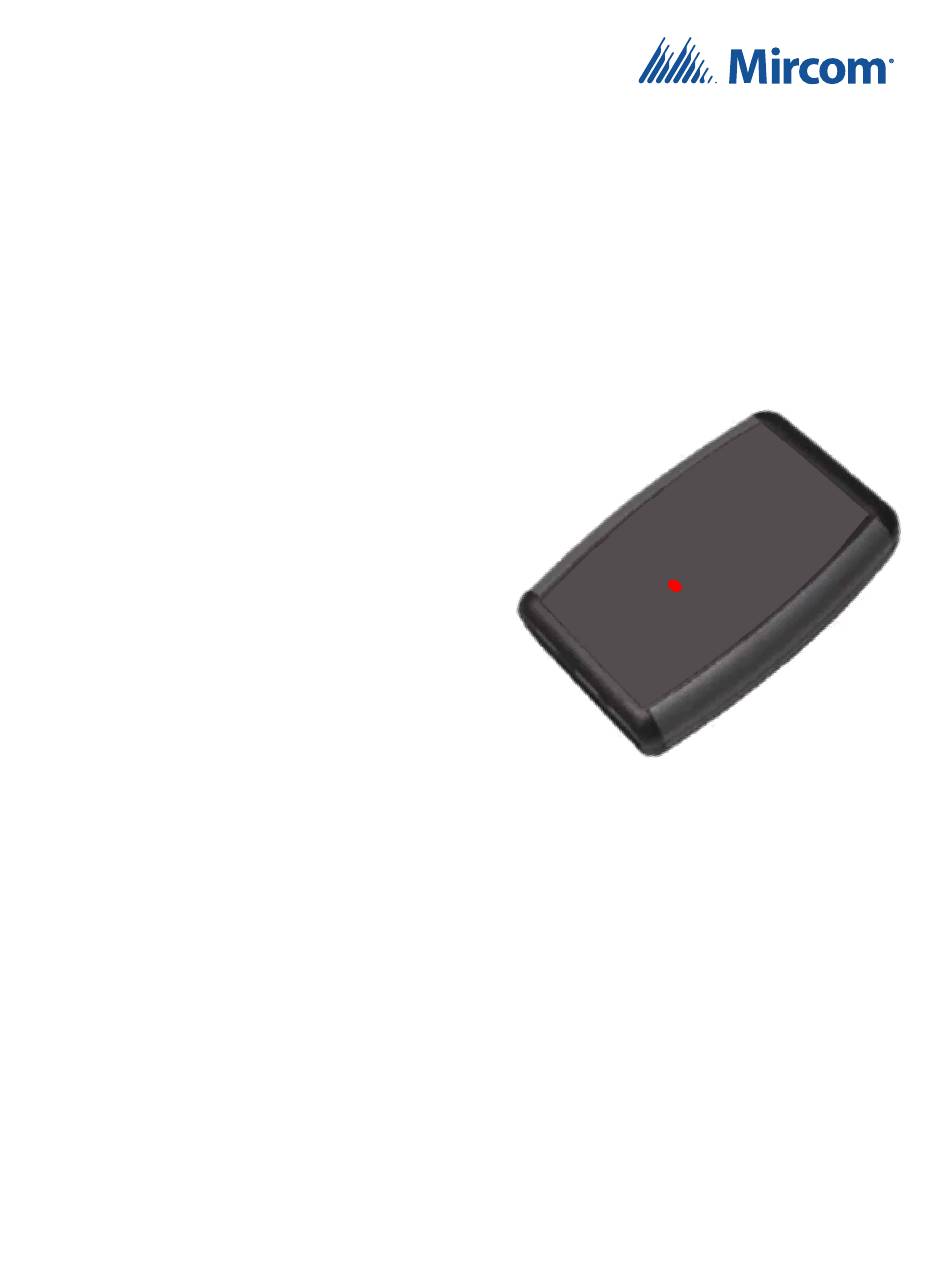

Microm TX3-Delta-26 Enrollment Quick Start Manual

QUICK START GUIDE
TX3-Delta-26 Enrollment
The TX3-Delta-26 Enrollment Reader is meant to be paired with 13.56MHz supported 26Bit Wiegand cards.
These enrollment units are pre-configured with 26Bit Wiegand programming and will output the card ID as a
decimal number via USB keyboard emulation, eliminating the need to enter the data manually.
For example:
Output Example 1: FC=255, ID=65535 will output
65535<ENTER>
PC Requirements
• USB Port (USB 2.0 or above)
• Microsoft Windows™ 7, 10, 11
Installation
1. Power Host PC ON
2. Connect TX3-DELTA-26 to PC
3. Windows™ automatically recognizes the new
hardware and initiates the installation process
4. Open Microsoft Word or word processing program
®
5. MIRCOM'S TX3-DELTA-26 Credential Enrollment
Reader will now be ready for operation
6. Present credential to Enrollment Reader and test
Output
• Keyboard Emulation - Internal Card ID
•
Fast & Simple
• Once connected, unit responds as a system
reader to discover internal numbers
Please Note:
This product is intended to be used with a
simple text editor. Please remember to close all
other applications as the TX3-DELTA-26 outputs
as Keystrokes and can cause uninteded actions
with other applications.
