Summary of Contents for PRADO Unifit outlet duplex

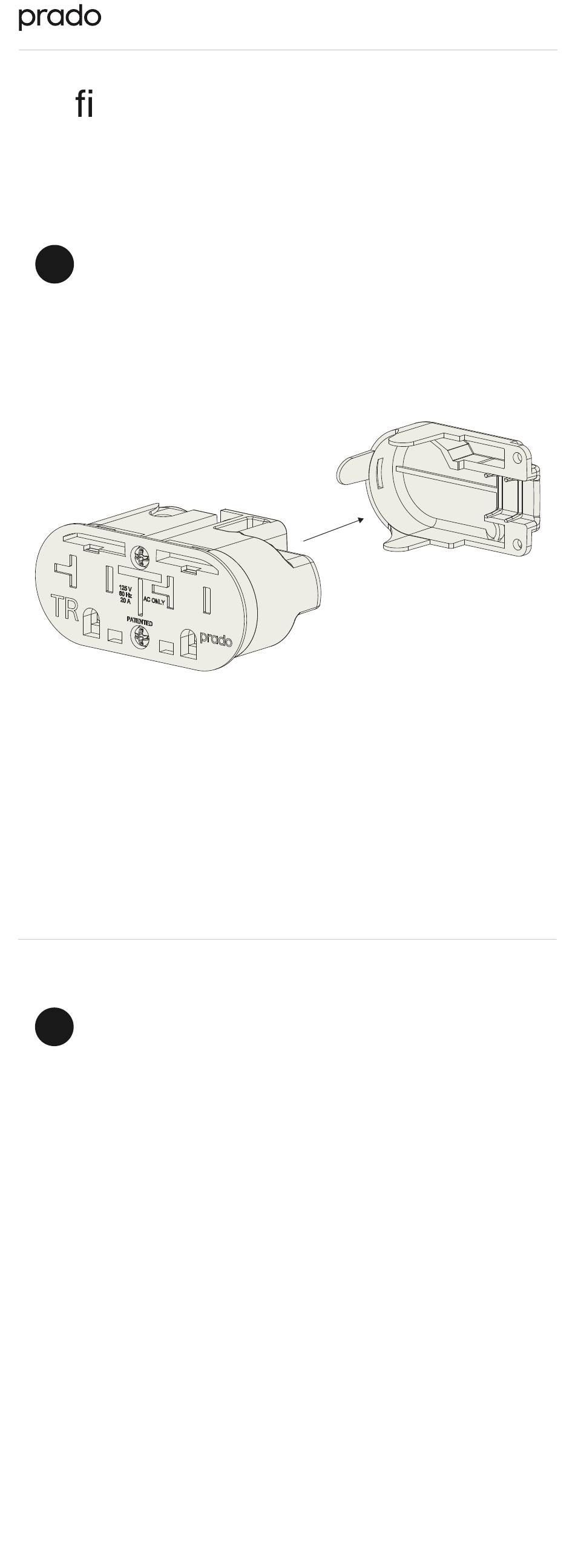

- Page 1 Uni t outlet duplex installation instruction Remove the strain relief. for hardwired - with back box go to step 3 (click here) for self contained go to step 8 (click here) for corded go to step 15 (click here) for removal go to step 25 (click here)
- Page 2 hardwired - with back box Ø 1-7/32” 1-9/16” back box min. 1/4” max. 1-3/8” Mill the installation hole. Ø 1-1/3” 1/10” Ø 1-7/32” Optional: ush mount countersink. Turn the power o . The branch circuit wiring that supplies each device consists of a separate cable assembly originating outside the box, or individual sets of conductors in a single raceway, all of which originate outside the box.
- Page 3 self contained Ø 1-7/32” 1-9/16” min. 1/4” max. 1-3/8” Mill the installation hole. Ø 1-1/3” 1/10” Ø 1-7/32” Optional: ush mount countersink. Turn the power o . wire stripping length 3/8” 3/8” 1-1/4” Make all necessary connections, make sure correct wire thickness is used: •...
- Page 4 corded Ø 1-7/32” 1-9/16” min. 1/4” max. 1-3/8” Mill the installation hole. Ø 1-1/3” 1/10” Ø 1-7/32” Optional: ush mount countersink. wire stripping length 3/8” 1-1/4” Make all necessary connections, make sure correct wire thickness is used: • 15A – 14 AWG •...
- Page 5 Fixate the outlet by tightning the screws. uni t cover plate sold seperately nish SKU - 15A SKU - 20A black 9000-0062 9000-0063 white 9000-0064 9000-0065 sand 9000-0066 9000-0067 clay 9000-0068 9000-0069 “click” Install the cover plate. POWER Turn the power on.
- Page 6 Click o the cover plate using a plug. Loosen the screws. Remove the outlet by using a plug. Thank you for choosing prado. prado.com support@prado.com - Prado America LLC Installation must be done by skilled professionals only and instructions must be followed at all times.
