Graymills PPS-DV-DH Addendum To Operating Manual

NOTE: This "addendum" to the Operating and Maintenance Instruction
(OMI) #795-09456 is intended for use with Dual Head Peristaltic Ink Pumps.
All users of the Dual Head must first review OMI #795-09456 for complete instructions
regarding general peristaltic pump safety, operation and installation. All instructions contained
here apply to unique characteristics of the Dual Head Peristaltic Ink Pump only
SAFETY-Do Not operate pump without both Pump Heads installed on the motor housing. Both Pump Heads
must be properly and securely installed on the pump for safe operation.
CAUTION-

Pump Heads must be fully inserted into motor's hollow shaft and spring pin must be fully engaged into
mated aluminum adapter.

DO NOT depress Release Lever while pump is in operation. Stop pump before pushing release lever.

DO NOT attempt to remove, rotate or make any adjustments to Pump Heads while pump is in
operation.
WARNING-

Disconnect power supply to the Remote Control unit before making any connections, adjustments or
performing service work

The Dual Head Pump has two head sizes: small (PQS) and large (PQL). The pump motor will accept
either pump head size, but the remote control unit is factory set for one specific model. Do not drive
small heads with a large control unit, or drive a large head with a small control unit.

DO NOT disconnect motor or power cord while pump is in operation.

DO NOT plug motor cord into any other device except the model specific Remote Control unit.

DO NOT use the Remote Control unit to power or drive any other device.
OPERATING VOLTAGES

PPL-DV-DH, PPS-DV-DH DC Motor 115/230VAC 50/60 Hz 1 Phase. Voltage selection is done
automatically. No settings or switches to change.
Addendum to Operating Manual
Dual Head PERISTALTIC INK PUMPS

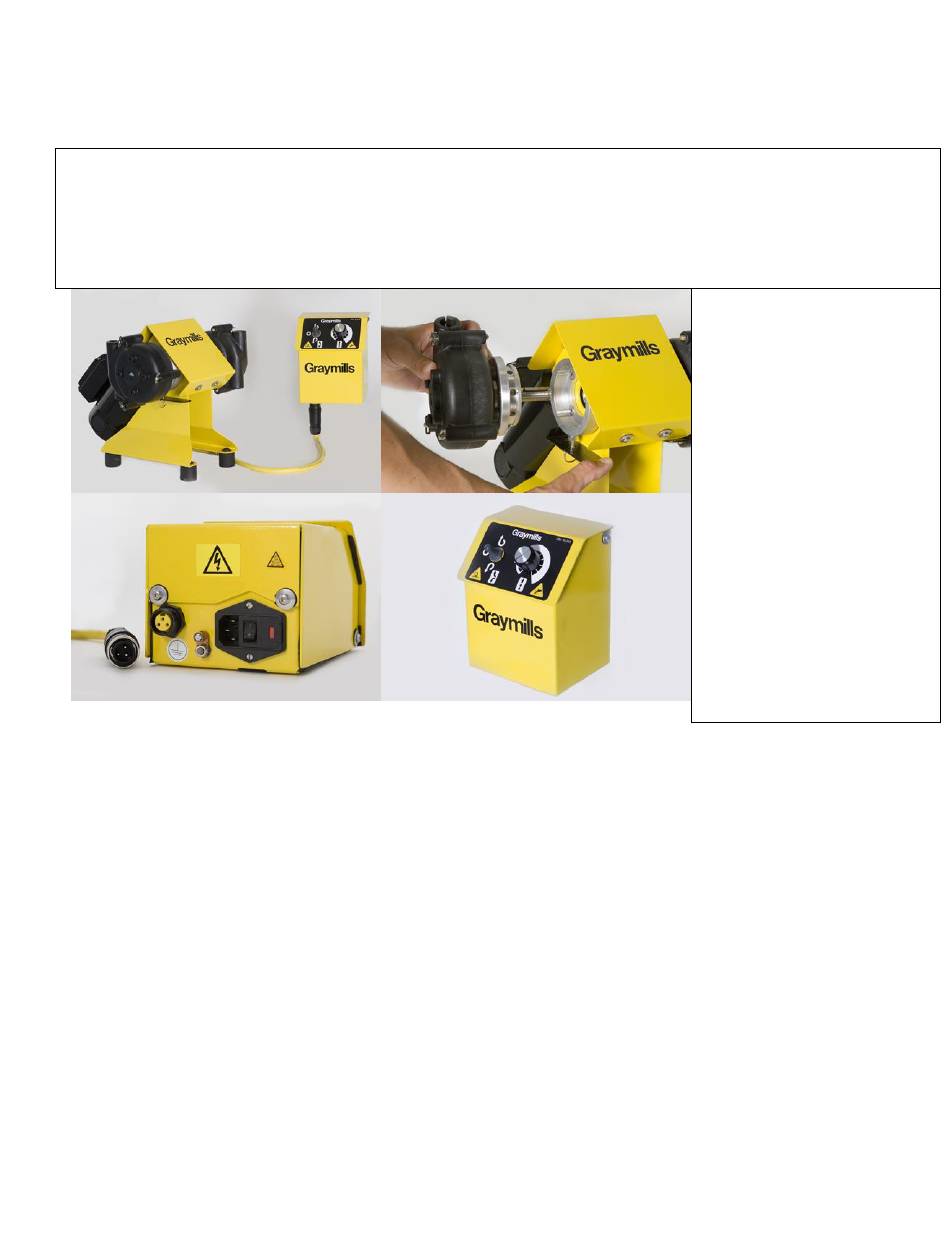

Figure A Figure B
Figure C Figure D
for
795-09456-B 06-13
Figure A (Upper Left)
Dual Head Pump and
Remote Control Unit
Figure B (Upper Right)
Removable Head and
Release Lever
Figure C (Lower Left)
Remote Control Unit-
Motor Cord and Power
Cord connection
Figure D (Lower Right)
Remote Control Unit-
Pump Speed and
Direction Control
