Summary of Contents for Thonk SYNTH T03 VCA

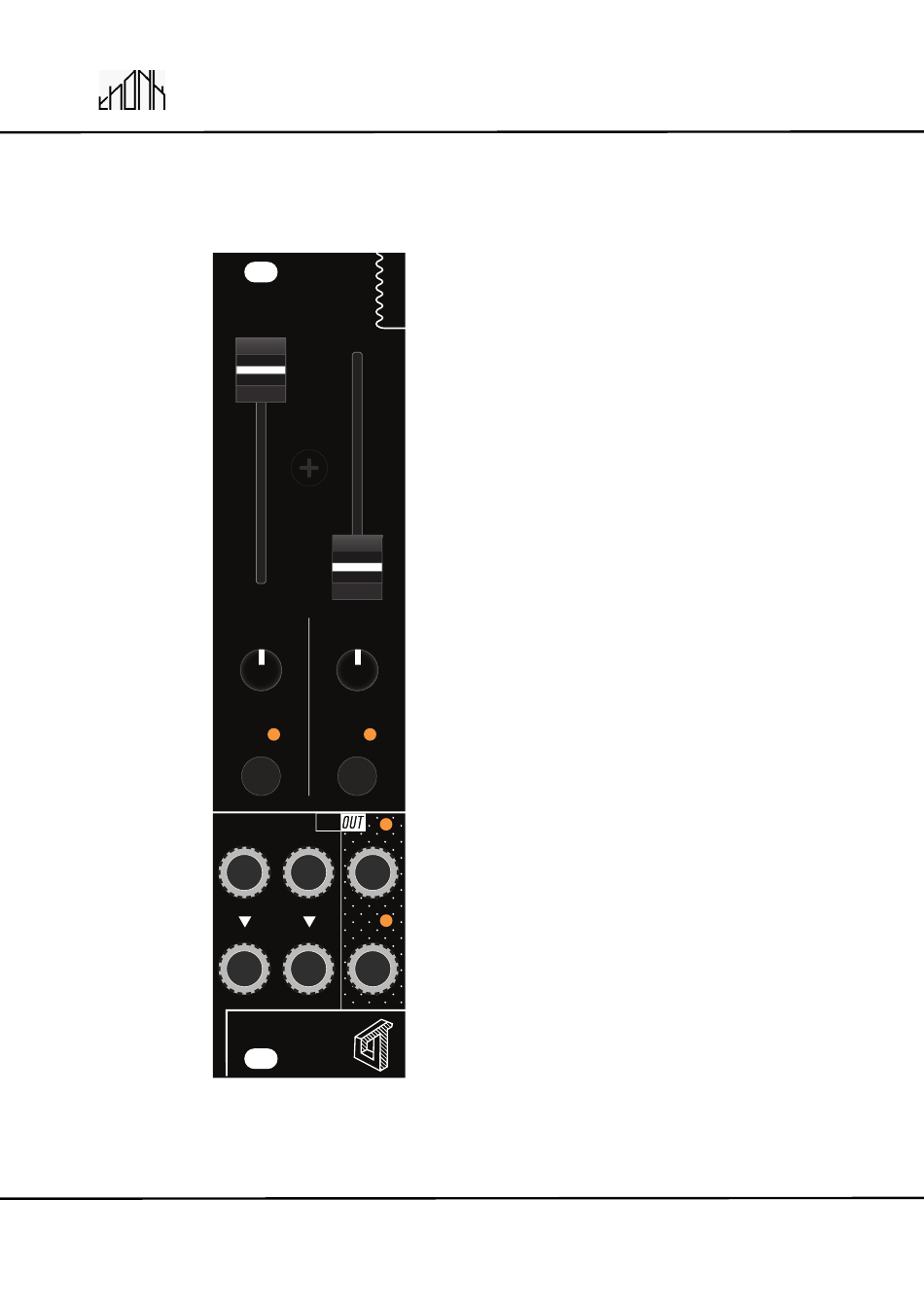

- Page 1 THONK SYNTH Eurorack DIY Kit Version 1.0 03 VCA Instructions LEVEL THONK SYNTH DUAL VCA & MIX CHAIN OFFSET OFFSET Eurorack DIY Kit Build Instructions Feb 2025 www.thonk.co.uk...
-
Page 2: Tools Required
For the most recent version of this document please visit https://www.thonk.co.uk/shop/thonk-synth-t03-vca-kit/ This document should be used in conjunction with the relevant user manual. All Thonk kits are sold under our standard Terms and Conditions - http://www.thonk.co.uk/faq/ DIY INSTRUCTIONS This document gives detailed instructions that assume you have purchased a complete kit from www.thonk.co.uk. -
Page 3: Solder Joints
THONK SYNTH Eurorack DIY Kit Version 1.0 03 VCA Instructions SOLDER JOINTS Your solder joints should look like those shown as ‘OK’ below, they should have that neat conical shape on BOTH sides of the PCB. If they don’t look the same on both sides then stop! Work out why from the soldering guides linked and don’t continue until you are getting those results. -
Page 4: Build Instructions
THONK SYNTH Eurorack DIY Kit Version 1.0 03 VCA Instructions BUILD INSTRUCTIONS First take the PCB and solder the 2x5 power header to the rear of the board (the side with the SMD components that are already pre soldered to the PCB). - Page 5 THONK SYNTH Eurorack DIY Kit Version 1.0 03 VCA Instructions Next find the metal standoff and one of the flat top screws. Secure the standoff to the board as pictured screwing it on from the same side of the PCB the headers are soldered onto.
- Page 6 THONK SYNTH Eurorack DIY Kit Version 1.0 03 VCA Instructions Push the black button caps firmly onto each of white latching buttons before placing onto the PCB, this will help the buttons sit in the panel correctly. CHECK ORIENTATION –...
- Page 7 THONK SYNTH Eurorack DIY Kit Version 1.0 03 VCA Instructions Place the panel over the components as pictured. First take the remaining flat top screw and secure it through the panel into the other side of the metal standoff. Apply the 6x jack nuts firmly but be careful not to overtighten.
- Page 8 THONK SYNTH Eurorack DIY Kit Version 1.0 03 VCA Instructions Solder all 54 joints on the sliders, switches, jacks and LED’s. Note: When flipping the module over to solder it can be easy for the sliders and buttons to become unseated from the PCB.
- Page 9 VCA, and for information on using the supplied 3 pin ribbon cable for chaining multiple modules. Find the manual and other product info on the Thonk website. https://www.thonk.co.uk/shop/thonk- synth-t03-vca-kit/ Feb 2025 www.thonk.co.uk...
