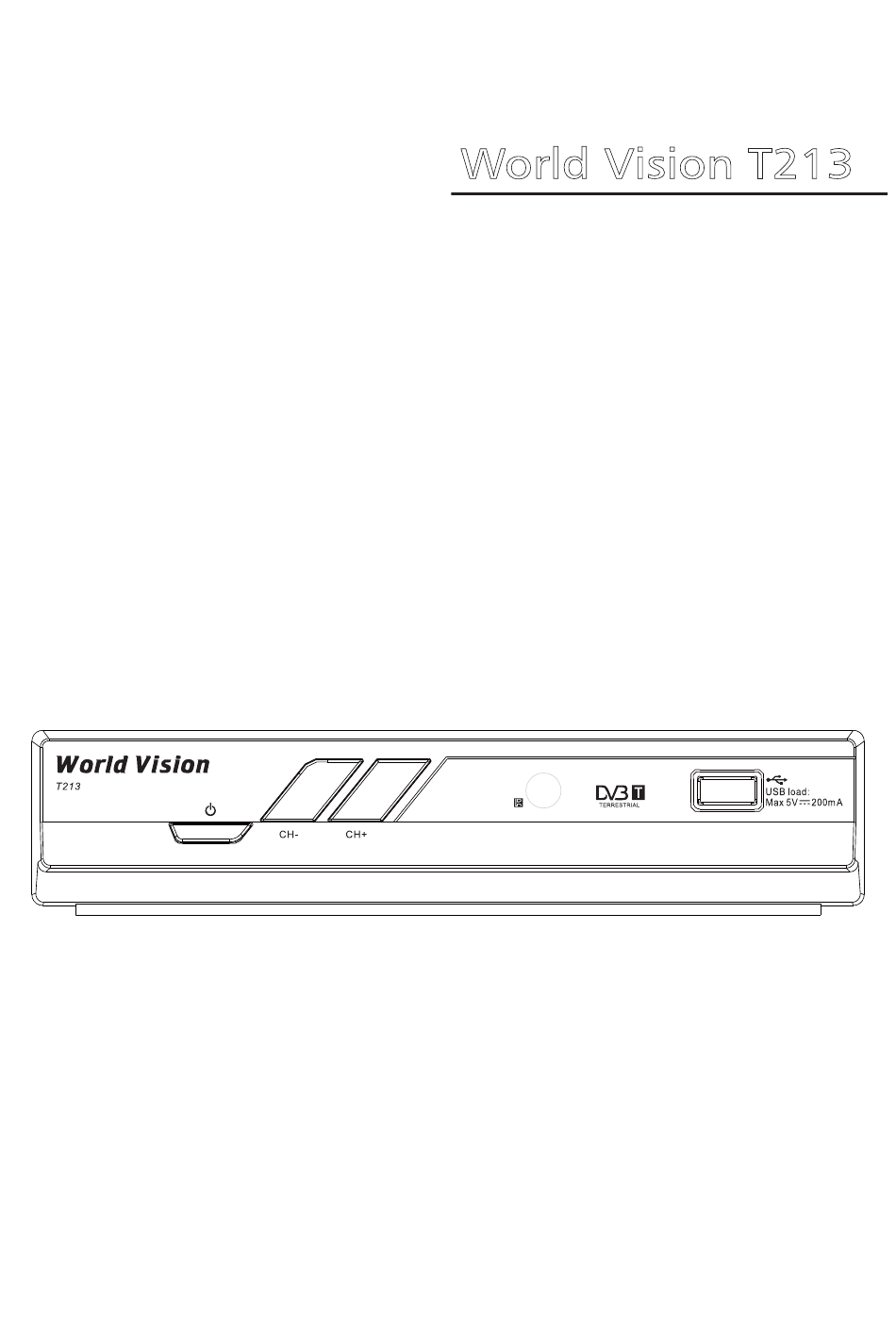

- Page 1 World Vision T213 Руководство пользователя Цифровой эфирный ресивер стандартного разрешения...
- Page 27 World Vision T213 User’s manual Digital terrestrial SD receiver...
-
Page 28: Table Of Contents
CONTENIDO 1.SAFETY INFORMATION............... 2.INTRODUCTION................... 3.SYSTEM CONNECTION............... BASIC OPERATIONS 7-26 4.WELCOME PAGE ................5.EDIT CHANNEL..................7-10 6.INSTALLATION..................10-12 7.SYSTEM SETUP .................. 12-16 8.TOOLS ....................16-18 9.GAME....................10.REC..................... 18-21 11.HOTKEY....................22-26... -
Page 29: Important Safeguards
USING THE SET TOP BOX SAFETY INFORMATION To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. CAUTION: To reduce the risk of fire and electrical shock, do not remove the cover of this unit. Please refer all servicing difficulties to qualified technicians . - Page 30 USING THE SET TOP BOX SAFETY INFORMATION Do not use liquid or aerosol cleaners, alcohol or other cleaning sprays! Use a dry, soft cloth to clean the exterior of the unit only! Never place a heavy object onto the unit! Do not defeat the safety purpose of the power plug.
-
Page 31: Introduction
INTRODUCTION USING THE SET TOP BOX Within approximately 6 meter (20 feet) Safety: Please read this operation manual before you use STB.to avoid electric shock or fire hazard, do not open the cabinet. Use a cloth lightly dampened with water for cleaning the exterior of the unit.unplug the unit from the wall outlet if you don’t use it long time.please don’t touch power line with wetness hand.do not place it in a hot location and place it... - Page 32 USING THE SET TOP BOX INTRODUCTION CHANNEL+ POWER CHANNEL- IR RECEIVER VIDEO OUTPUT LEFT OUTPUT RF IN RF LOOP through COAXIAL DIGITAL RIGHT OUTPUT TV SCART REMOTE CONTROL 1. NUMERIC ENTRY 15. GREEN BUTTON/FF 2. MENU 16. POWER 3. CH+ 17.
-
Page 33: System Connection
System Connection USING THE SET TOP BOX... -
Page 34: Basic Operations
Basic Operations USING THE SET TOP BOX 4. Welcome Page When turn on the power for the first time, the welcome page will be shown as below: 1 Press [Up/Down] key to move highlight. 2 Press [Left/Right] key to select region, language, Display mode, Aspect mode. 3 Move highlight to [OK] button and press [OK] key to begin the auto scan. - Page 35 Basic Operations USING THE SET TOP BOX 1 Move the highlight by pressing [Channel Up/Channel Down] key then press [OK] key to preview the current highlighted program in the preview window. 2 By pressing [Page Up/Page Down] key to execute the Page Up/Page down function. 3 By pressing the [Volume Up/Volume Down] key to switch to different Program Group.
-
Page 36: Radio Channel List
Basic Operations USING THE SET TOP BOX 2 By pressing [Up/ down] key to move the selected channel to the position that you want to place. Press [OK] key to confirm your decision. 5.1.5 Edit 1 Press [Blue] key to open “Edit” menu. 2 Press [Exit] to exit “Edit Channel”... -
Page 37: Delete All
Basic Operations USING THE SET TOP BOX 5.3 Delete All Press [OK] key, it will pop up a warning message to inquire you whether delete all services or not . 1 If the selection is “Yes”, all channels will be deleted. 2 If the selection is “No”... -
Page 38: Channel Scan
Basic Operations USING THE SET TOP BOX 6.2 Channel Scan When entering to “Channel Scan” menu, a channel scan menu will be shown as below: 1 There are two choices of “Scan Mode,” by channel or by frequency. If you scan by channel, “Scan Band” and “Ch No” are available to be adjusted. If you scan by frequency, “Frequency”... -
Page 39: System Setup
Basic Operations USING THE SET TOP BOX 6.4 LCN LCN: To toggle the LCN mode On/Off 7. System Setup When entering to “System Setup” menu, a menu will be displayed as below: Press [Up/Down] key to select menu pages among Language，TV system，Local time setting, Time setting Parental lock, Osd setting，Favorite. -
Page 40: Local Time Setting
Basic Operations USING THE SET TOP BOX one subtitle for choosing.With this function, a user can set the specified subtitle language. If the playing channel has the same subtitle language as the “Subtitle Language” the user set, system will play this subtitle language as default. If the channel hasn’t the suited subtitle language, then the default subtitle language of current channel will be played automatically. -
Page 41: Timer Setting
Basic Operations USING THE SET TOP BOX 5 “Date” and “Time” items: Valid only when the setting of “GMT Usage” is “Off”. By pressing [Left/Right] keys to moving highlight and the number keys for inpout. 6 Press [Exit] key to draw back from “Time” menu 7.4 Timer Setting Select “Timer Setting”... -
Page 42: Osd Setting
Basic Operations USING THE SET TOP BOX correct, the screen will show up a message of “Saving Data, Please Wait…” After finishing saving and drawing back to “System Setup” menu, the revising is completed. 4 Press [Exit] key to draw back from the “Parental Lock” menu. 7.6 OSD Setting When entering the “OSD Setting”... -
Page 43: Auto Standby
Basic Operations USING THE SET TOP BOX 1 Press [Yellow] key to switch whether capital or not. 2 Press [Red] key to delete the char on the cursor. 3 Press [Blue] key to save the modificationm, 7.8 Auto Standby The STB will be automatically switched into standby mode after three hours in active mode following the last user interaction and/ or a channel change,an alert message will show 2 minutes before going into standby mode. -
Page 44: Upgrade By Usb
Basic Operations USING THE SET TOP BOX 8.3 Upgrade by USB This function is only valid when the USB device has been plugged-in and attached at the receiver box.Open Upgrade by USB menu according to Menu -> Tools-> Upgrade By USB. - Page 45 Basic Operations USING THE SET TOP BOX FAV key: Put the selected file to play list . 0 Key: All the MP3 files in current directory will be added into MP3 play list . 1 Key: All the Image files in current directory will be added into Image play list. 2 Key:There are four kinds of sorting approaches.
-
Page 46: Remove Usb Device Safely
Basic Operations USING THE SET TOP BOX 8.5 Remove USB device safely Before removing the USB device, press “Remove USB device safely” first, with a reminding “You can safely remove USB device now!”. Then the USB device can be removed without concern. -
Page 47: Disk Information
Basic Operations USING THE SET TOP BOX 10.1.2 Delete 1 Press [Blue] key to make a delete mark on the highlight program. 2 If you want to cancel the delete operation, press [Blue] key again to cancel the delete mark. 3 When exit the “Record Manager”... - Page 48 Basic Operations USING THE SET TOP BOX 10.3.1 Timeshift 1 Press [PAUSE] key to see time shift OSD as below: 2 You can press [Left/Right] to move the slide to left or right. Press [OK] key to play the point where the slide is. 3 You also can press [Pause] /[fast back]/[slow /back] can realize these function.
-
Page 49: Hotkey
Basic Operations USING THE SET TOP BOX 11. Hotkey 11.1 Power 1 Press [Power] Key can enter the Standby state 2 In Standby state, press [Power] Key again can call back the unit and go on play the previous channel 3 User can also disconnect the device’s main power to end the Standby state. - Page 50 Basic Operations USING THE SET TOP BOX Pressing [Page Up/Page Down] keys can implement the “Page up/Page down” function 4 You also can press [Volume Up/Volume Down] keys to select different “Favorite Group”. 5 Press [Exit] key to exit the current window. Frequently Asked Question Q: Why the screen displays “No Favorite Channel”, afterpressing [Favorite] key? A: It is because that you haven’t set any channels as “favorite channel”.
- Page 51 Basic Operations USING THE SET TOP BOX 2 Press [OK] key in each item can see more detail information and press [Red] key to cancel 3 Press [Red] key in EPG menu can display “Time Bar” Menu. In “Time Bar” menu, you can press [Left/Right] to select “back/current time/last program or –0:30/next program or +0:30/-2:00/+2:00/last day /next day”.
-
Page 52: Channel List
Basic Operations USING THE SET TOP BOX 11.12 TEXT 1 Press [TEXT] key in full screen, you can open teletext page on the channel which has teletext information. 2 If the channel has no teletext information, it will show “No Data” on the screen. 11.13 Menu 1 Press [MENU] key can open the menu, exit the current menu to last menu or close the window. -
Page 53: Page Up/Page Down
Basic Operations USING THE SET TOP BOX 11.17 Page Up/Page Down 1 In Channel list, press [Page+/Page-] key can page up and page down the channel list. 11.18 Record 1 Press [Record] key can record current program to USB disc. The default record duration is 2 hrs. - Page 54 TROUBLE SHOOTING USING THE SET TOP BOX In some region, the digital terrestrial signal may be weak. So you'd better use the antenna in which theN booster was built,for watching the weak sinal channels. Problem Possible cause What to do Aerial is disconnected Check aerial lead No signal found...
- Page 55 USING THE SET TOP BOX SPECIFICATIONS 174MHz ~230MHz (VHF) & 470MHz ~862MHz (UHF) TUNER & CHANNEL RF INPUT CONNECTOR x1 (D-TYPE, IEC169-2, FEMALE) RF OUTPUT CONNECTOR x1 (D-TYPE, IEC169-2, MALE (LOOPTHROUGH)) FREQUENCY RANGE: SIGNAL LEVEL: -10 ~ -70 dbm DECODER MPEG-2 ISO/IEC 13818-1 TRANSPORT STREAM MPEG-1 MPEG-2 MP@ML...
