Summary of Contents for Dahua Technology DHI-NB-001-PLUS

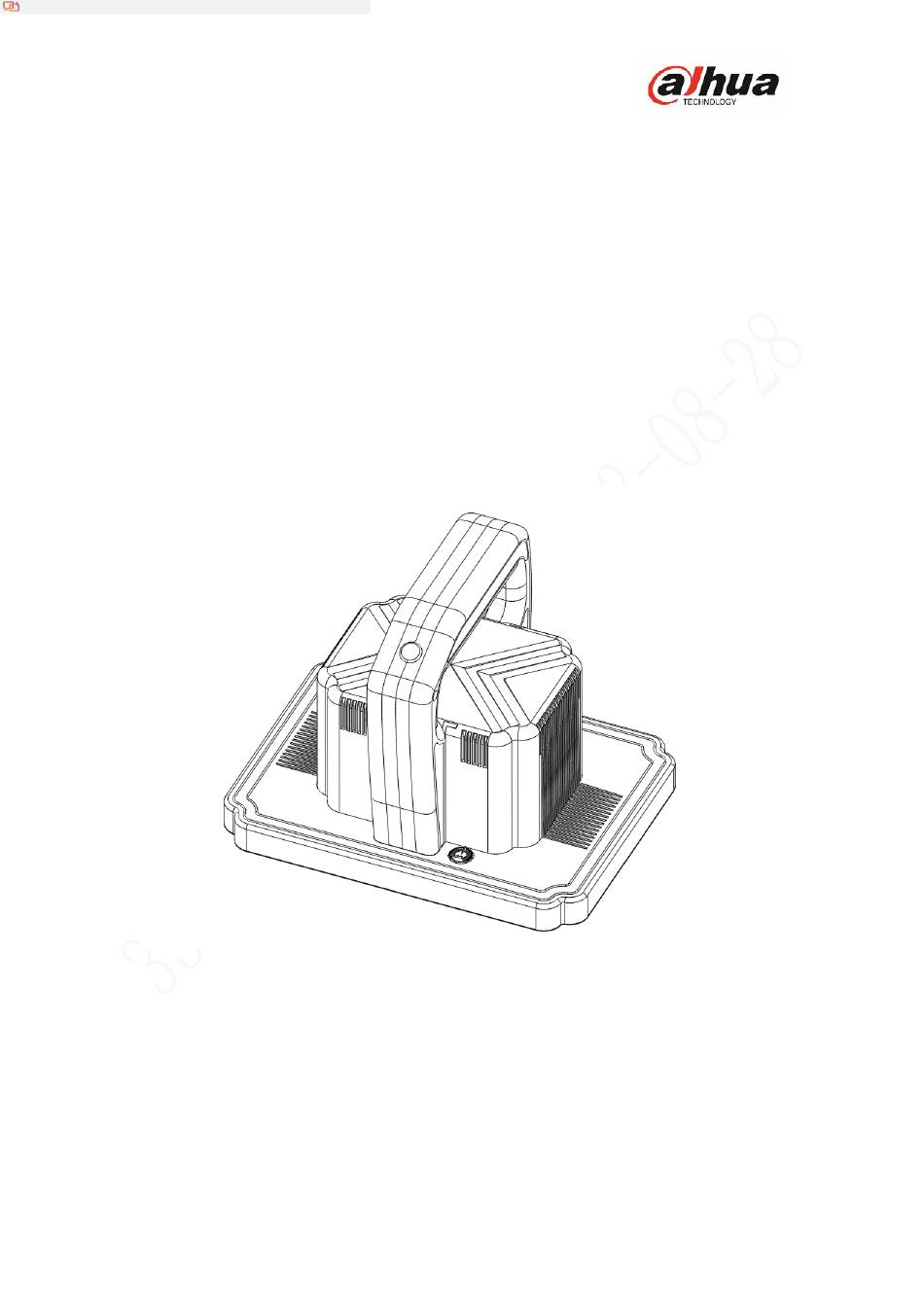

- Page 1 Translated from Chinese (Simplified) to English - www.onlinedoctranslator.com LED Vacuum Pre-Maintenance Tool Instructions LED vacuum front maintenance tool instruction Model: DHI-NB-001-PLUS...
- Page 2 Product advantages Product advantage 1. Small size, light weight, easy to carry; Small size, light weight, easy to carry 2. Excellent ergonomic design, more convenient to use; Excellent ergonomic design for easier use 3. Vacuum degree valve design, suitable for more models; Vacuum valve design for more models 4.
- Page 3 Tool parameters Tool parametersr Charger charging voltage: 100-240V Charger charging voltage: 100-240V Charger output voltage: 25.2V Charger output voltage: 25.2V Lithium battery energy: 42Wh Lithium battery energy:42Wh Maximum continuous charging current: 1.0C5A Maximum continuous charging current: 1.0C5A Continuous discharge time: 18MIN (This data is laboratory data, and may vary depending on changes in the use environment. fluctuated) Continuous discharge duration: 18MIN(This data is laboratory data, change according to the use environment, data will fluctuate)
- Page 4 Tool specifications and applicable display models Tool description and applicable display model Product net weight: 0.9KG Product net weight: 0.9kg Length, width and height: 200*150*150MM L*W*H: 200*150*150MM Suction cup size: 200x150MM Suction cup size: 200*150MM Applicable module size: full range of indoor and outdoor LED display modules Applicable module size: all indoor serious led display module...
-
Page 5: Product Schematic
Product schematic 1 Handle 2 Equipment compartment 3 Suction cup 4 Sealed silicone ringSealed silicone ring 5 Main switch 6 Battery indicator 7 Touch switch 8 Vacuum degree regulating valve Vacuum degree regulating valve 9 charging port charging port 10 Removable battery coverRemovable battery cover... - Page 6 Instructions for use Use operating instructions Turn on the main switch, hold the tool handle, then align the suction cup at the center of the module, and lightly touch the touch switch to start. Gently take out the module, hold the module firmly with the other hand, lightly touch the touch switch to turn off the motor, and then turn off the main unit. Just switch it on and off.(Note: The motor defaults to low gear, press for 1.5 seconds to activate the high gear;...
-
Page 7: Charging Instruction
small pitch modules although the suction power is strong. Remark: if no need use the tool for a long time, please charge before storage, and charging regularly, keep the battery full power state. Charging instructions: Charging instruction: Insert the charger into the socket, plug the DC end into the charging stand, turn on the main switch, and check the charging through the battery indicator light status, after it is fully charged, turn off the main switch and unplug the charger;... -
Page 8: Warranty Policy
Warranty Policy Warranty Policy Under normal use, the whole machine has a one-year warranty. 1. People who do not use the standard charger, inhale debris, soak in rain or water, fall from high altitude, dismantle tools without permission, etc. Damage is not covered by the warranty. 2. -
Page 9: Package Description
Packing configuration table Package description test quantity Specification Packing configuration details Description Inspect Package details Quantity Tool host 1 set 350W dual gears Tool main engine One set 350W double gears Input 100-240V, output 25.2V-1.0A charger Charger One pcs Input100-240V, output25.2V-1.0A Backpack Black plus shoulder strap Black shoulder strap...
