ezsolar SL19P-S90N-SV-1 Quick Start Manual

Before First Use
Choose the right location
Select a location with full and direct sunlight. Do not install in shady areas as these areas will not
allow the battery to be fully charged and will reduce nighttime working hours. Be sure that the
selected location is not too close to other nighttime light sources (e.g. streetlights, porch lights, or
other solar lights) as they may keep the light from turning on automatically at night.
Charging the battery
Make sure switch is in the "ON" position. Battery cannot be charged when switch is in the "OFF"
position. For optimum performance, it is best to install the fixture in full and direct sunlight and
charge for at least 10–12 hours a day. Allow the fixture to run at least 8–12 complete charging
and discharging cycles for the battery to reach its maximum capacity.
Assembly and Installation Instructions

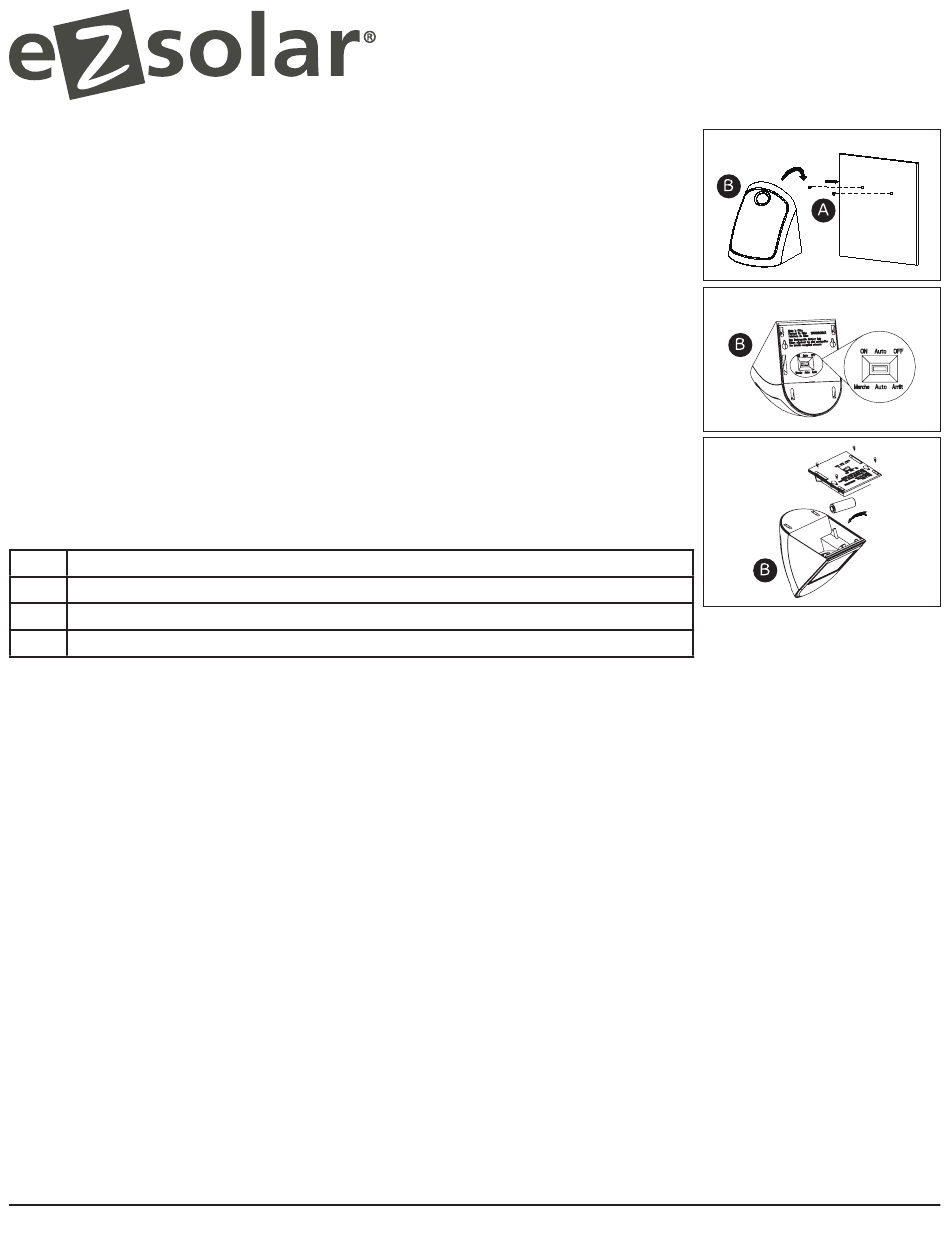

Step 1 (Fig. 1)
Drill 2 holes into surface. Insert the 2 screws (A). Mount the light (B) onto the 2 screws (A) by
placing the keyholes located on the back of the fixture over the screw heads. Do NOT move the
switch into the OFF position until the batteries are fully charged. Allow the solar panel to receive
3–4 full days of direct sunlight for the first time.
Modes (Fig. 2)
Mode Function
Auto Normal mode; light will stay on for 1 minute after last movement was detected
On Light will constantly be on until battery dies
Off Powered off for storage
Replacing the battery (Fig. 3)
Switch light off. Remove the 4 screws located on the back of the light and remove the battery compartment cover. Replace the old
battery with (1) new 1000 mAh 3.2V 18500 LiFePO4 solar rechargeable battery. Reassemble light by replacing the screws and battey
compartment cover. NOTE: A minimum capacity of 1000 mAh is required. Caution: CONTAINS LITHIUM IRON PHOSPHATE BATTERY.
BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. DO NOT INGEST. Do not dispose batteries in fire. Battery may explode or
leak. Ensure the battery is installed correctly with regard to polarity (+ and -).
Troubleshooting
If your fixture does not turn on at night or its nightly runtime is short, it may be caused by one of the following conditions:
1. The battery is not fully charged. Make sure the fixture is located in an area where it can receive the maximum amount of full and
direct sunlight for 10–12 hours a day. If the fixture does not receive enough sunlight during any given day (e.g. due to cloudy or
overcast weather conditions), it will be recharged on the next sunny day and resume normal operation. Keeping the solar panel
clean is equally important to ensure the maximum charging performance.
2. The fixture is installed too close to other light sources (e.g. streetlights, porch lights, other solar lights, etc.) which may keep the light
from turning on automatically at night. Relocate fixture or eliminate other light sources.
3. The battery is reaching the end of its useful life and needs to be replaced.
Winter tips
Keep debris and snow off the solar panel to allow the battery to recharge. If the panel has been covered by snow for a long period of
time, allow the battery to recharge by allowing the panel to receive full sunlight for at least 10-12 hours.
© 2016 Product is distributed by: Jiawei Technology (USA) Ltd. • 2305 Lincoln Avenue • Hayward, CA 94545 • United States
For questions/replacement parts, call our customer service department at 1-866-897-2098, 9:30am–6:30pm EST, Monday–Friday.
Solar LED Step Lights
Model: SL19P-S90N-SV-1
Fig. 1
Fig. 2
Fig. 3
