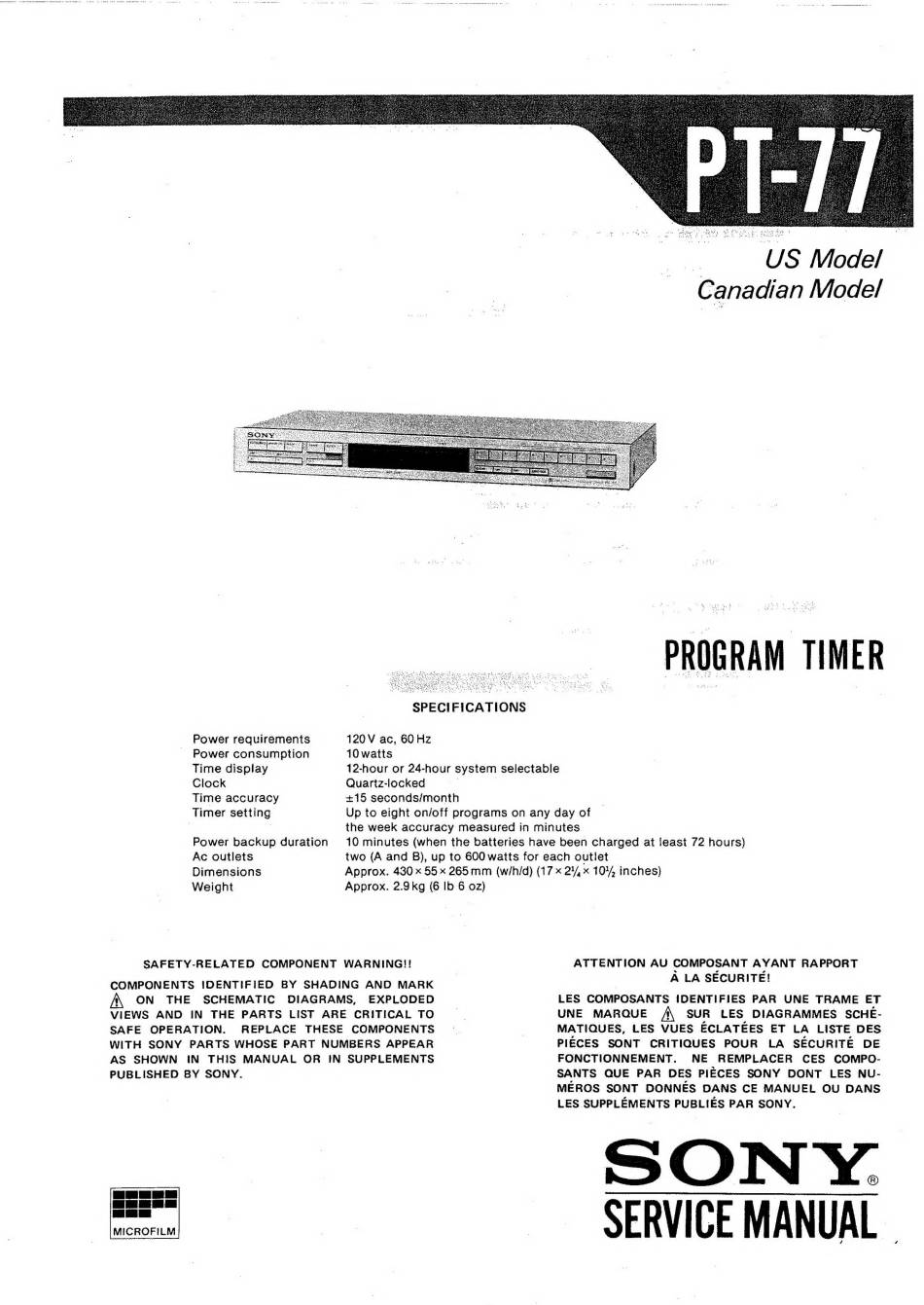

Sony PT-77 Service Manual

US Model
Canadian Model
Power requirements
Power consumption
Time display
Clock
Time accuracy
Timer setting
Power backup duration
Ac outlets
Dimensions
Weight
SAFETY-RELATED COMPONENT WARNING!!
SPECIFICATIONS
120V ac, 60 Hz
10 watts
12-hour or 24-hour system selectable
Quartz-locked |
+15 seconds/month
Up to eight on/off programs on any day of
the week accuracy measured in minutes
10 minutes (when the batteries have been charged at feast 72 hours)
two (A and B), up to 600 watts for each outlet
Approx. 430 x 55 x 265 mm (w/h/d) (17 x 2, x 104, inches)
Approx. 2.9kg (6 Ib 6 0z)
ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!
COMPONENTS IDENTIFIED BY SHADING AND MARK
ON THE SCHEMATIC DIAGRAMS, EXPLODED LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET
VIEWS AND IN THE PARTS LIST ARE CRITICAL TO i UNE MARQUE A SUR LES DIAGRAMMES SCHE-
SAFE OPERATION. REPLACE THESE COMPONENTS © . MATIQUES, LES VUES ECLATEES ET LA LISTE DES
WITH SONY PARTS WHOSE PART NUMBERS APPEAR PIECES SONT CRITIQUES POUR LA SECURITE DE
AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS FONCTIONNEMENT. NE REMPLACER CES COMPO-
PUBLISHED BY SONY.
ne ae ee
MICROFILM
SANTS QUE PAR DES PIECES SONY DONT LES NU-
MEROS SONT DONNES DANS CE MANUEL OU DANS
LES SUPPLEMENTS PUBLIES PAR SONY.
