Vivanco TECCUS TC STL UQ3K-N User Manual

TC STL UQ3K-N
44826
Version 1.1 / GO
Universal Quad LNB
GB User manual
Please read this manual carefully before using the device to make it safe and reliable
to use, and keep the instructions safe and pass it to any subsequent owners.
Technical Data:
Feed diameter: 40 mm
SAT input frequency: 10.7 - 12.75 GHz
SAT output frequency: 950 - 2150 MHz
L.O. frequency: 9.75 / 10.6 GHz
Output impedance: 75 Ohm
Scope of delivery:
1x Universal Quad LNB, 1x User manual
Proper use

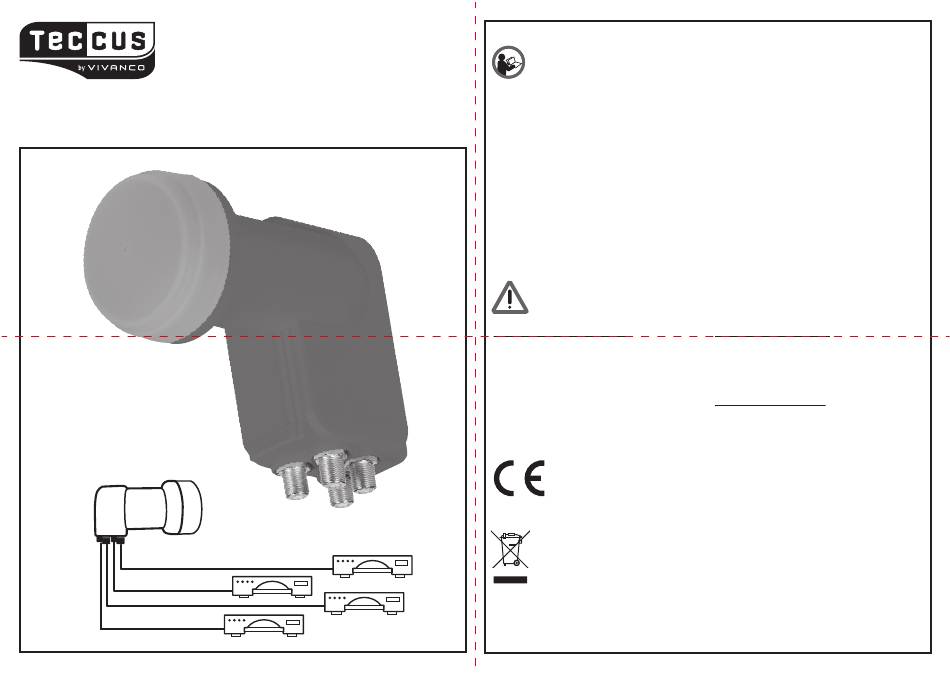

The universal Quad LNB with integrated Multi-Switch is suitable for the analogue and digital HDTV reception
and can be connected directly with 4 SAT receivers or SAT TV tuners. This device is exclusively intended for
use in private domains in accordance with this manual and may not be used for commercial purposes. Any
other form of use constitutes improper use and can result in material damage and even personal injury.
Safety instructions
Please pay attention that also children and handicapped people must comply with
these instructions!
DANGER: ELECTRIC SHOCK
- In case of too high/incorrect tension:
=> Do not touch the device
- In case of an open or damaged device:
=> Do not open the device
=> Do not use the device if it is damaged
- In case of atmospheric conditions:
=> Do not (dis)assembly the device in case of
rain, thunderstorm, storm and snow
Declaration of conformity
Hereby Vivanco GmbH declares that the radio equipment type [Universal Quad LNB /
TC STL UQ3K-N] is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following
internet address: www.vivanco.de
Disposal of the device
This device shall not be disposed with household waste. Please hand it over to any
collection point for electric devices in your community or district. This ensures that old
devices are recycled professionally, economically and prevents potential advert affects
on the environment and human health.
Disposal of packing
The packaging must not be disposed in the household garbage. Please act according to the
respective local disposal prescriptions.
Noise figure: 0.3 dB
Gain: 58 - 63 dB
Polarity select control: V: 12.0 V - 14.5 V / H: 16.0 V - 18.0 V
Band select control: 22 KHz
Work current: 210 mA
Working temperature: -40° C / +60° C
DANGER: FIRE/FLAMES
- Due to electrical short-circuit:
=> Do not open the device and Do not use if damaged
=> Place on device load only within the limits
of the technical specifications
DANGER: FALL/CRASH
- In case of use outside, in particular on
roofs/at higher positions:
=> Guarantee the required safety during the use
of the device
