WF-870EK
Dual Band WIFI Module
User Manual
Package Contents
WF-870EK Module................................................................................(x1)
WiFi Antenna........................................................................(x2)
M3 Screw...........................................................................(x1)
Installing WF-870EK to EK Series Model
1.

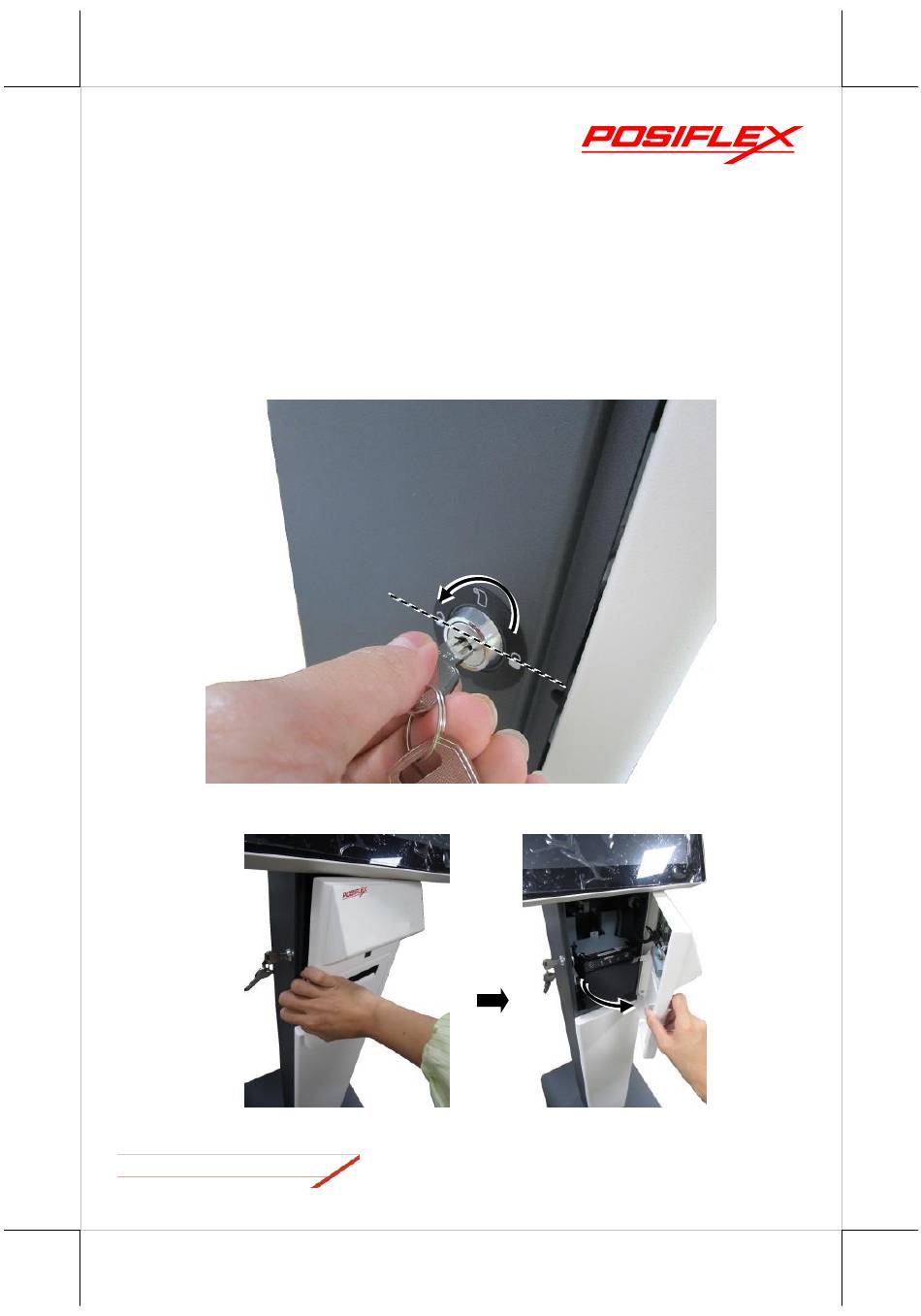

To unlock the front door, turn the key counterclockwise to around 180
degrees. See the images below.
2.
Once the front door is unlocked, the user is able to open the front door.
See the images below.
WF-870EK Ver. A0
180゜
1
Advertisement
Related Manuals for POSIFLEX WF-870EK
Summary of Contents for POSIFLEX WF-870EK
- Page 1 Package Contents WF-870EK Module……..............…...(x1) WiFi Antenna...………..…………………………………..…..…………(x2) M3 Screw………………………………………………………………...(x1) Installing WF-870EK to EK Series Model To unlock the front door, turn the key counterclockwise to around 180 degrees. See the images below. 180゜ Once the front door is unlocked, the user is able to open the front door.
- Page 2 1) Lift the lever on the left side of the touch monitor, and then 2) gently tilt the touch monitor up. 3) Then use the touch monitor support bracket to support the touch monitor. Please refer to the images below. 1) Lift the lever.
- Page 3 3) Use the touch monitor support bracket to support the touch monitor.
- Page 4 Remove the service door by removing one screw. 5. Insert the WiFi module to the main board and fix the module with one M3 screw.
- Page 5 6. (1) Pass the WiFi antennas through the wire edge saddle. (2) Route the antennas with cable clamp with one screw. (3) Stick the two antennas to the indicated position like the below picture.
- Page 6 WiFi Module WF-870EK Basic Specification AW-XB468NF Original Model Name Chipset MT7921L (DRQFN 109p) Host Interface PCIe+USB M.2 2230 (Key A-E) Form Factor Power Supply for Host: 3.3V Voltage WiFi Certified IEEE 802.11 a/b/g/n/ac/ax 2T2R 2.4 GHz：2.412 ~ 2.484 GHz WiFi Frequency Rage 5 GHz：5.180~5.825 GHz...
