Summary of Contents for Vidalux S-01

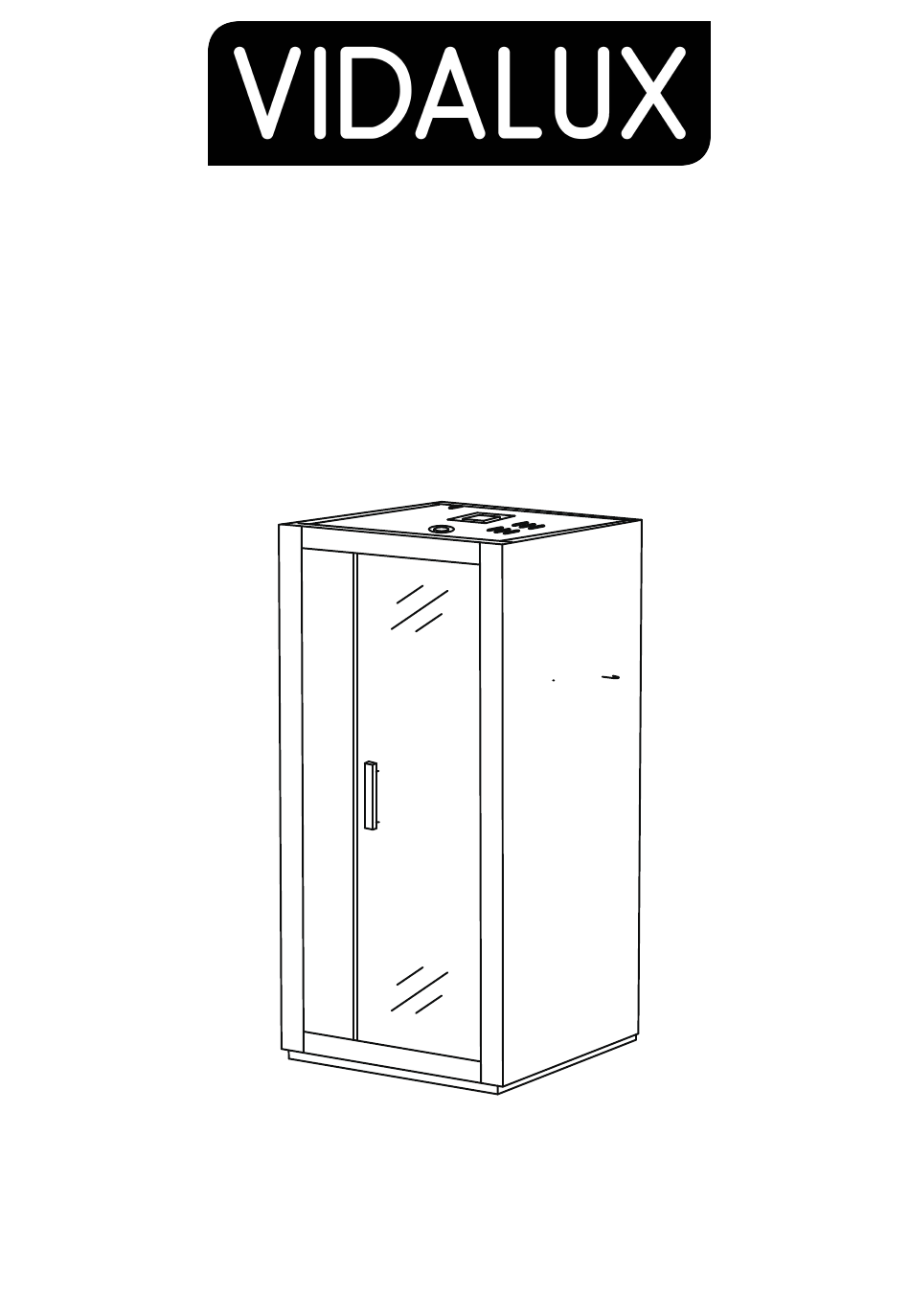

- Page 1 S-01 Sauna Manual INSTALLATION AND OPERATING MANUAL Technical Support: 01524 489939 Warranty Claims Or Delivery Damage: www.Vidalux.co.uk...
-
Page 2: Important Notice
By commencing testing and installation of the unit you are agreeing to the Terms and Conditions set out by Vidalux: copies of these are available online or by contacting us by email or phone (details on the cover of this manual). Proceeding with the installation is deemed as an acceptance of the cosmetic condition. - Page 3 3. We are a supply only company. If you report any damage we will send replacements or solutions to remedy the problem described. We endeavor to fully understand the problem first by troubleshooting questions and then propose the solution. We may even ask for digital images to be sent via email to assist the process.
- Page 4 Please note 4 person models will require to be hardwired into a switched fused spur...
-
Page 5: Table Of Contents
Contents Important safety guides ……………………… Structure of infrared sauna …………………… Installation process …………………………… Installation precautions ……………………… ……………………… Control panel operation Control box …………………………………… Maintenance ………………………………… Trouble shooting ………………………………... -
Page 6: Important Safety Guides
Important safety guides Please strictly follow safety precautions when using! 1. Children must be using the equipment under the care of an adult. For safety, do not play with it； 2. Do not insert objects such as fingers or sticks into the heating tube plate to prevent danger；... -
Page 7: Structure Of Infrared Sauna
Structure of infrared sauna Duster cover Front board Temperature sensor Bench Handle Speaker Top board Bench front board Control box Door glass Bottom board Back board Left board Hinge Heater frame Foot rest board 10 Ventilation Right board Control panel... -
Page 8: Installation Process
Installation process Bottom board Back board Left board Right board Bench front board Bench Foot rest board Front board Top board * The structure may vary from different models.Due to our continued product improvement, product illustrated on this instruction manual may vary slightly from the actual product. -
Page 9: Installation Precautions
Installation precautions Large plate assembly Suitable for processes 3 and 4 Installation method of the left and right side panels Suitable for process 8 Installation method of the front board... -
Page 10: Connection Plug
Installation precautions Electrical connection Conection cable Connection plug... -
Page 11: Control Panel Operation
Control panel operation TEMP TIME MUSIC TRACK VOLUME Temp control Display screen Touch the ‘+’and ‘-‘ button to increase or decrease the For temperate,time,FM. temperature. If the ‘heat’ light is on, the temperature setting will increase one degree every time the ‘+’ button Power button is pushed. -
Page 12: Control Box
Control box This control box is the control center of sauna room,it is installed on the top board,input/output connections as below. Main power of sauna room. 24V output Heaters power output cable（HT1--HT8) If necessary can connect another power box Reading lamp power output cable Temperature sensor connection port Color lamp power output cable(optional) Control panel connecting... -
Page 13: Before Using
Maintance 1. Please be sure to follow the instruction manual before operations； Before using 2. Prepare a towel on the seat bench to prevent sweat from dripping onto it.To avoid affecting the quality and beauty of wood. 1. Please unplug the power plug in time； After using 2. -
Page 14: Trouble Shooting
Trouble shooting Number Problems Possible reasons Countermeasure The connector is not Check the connector or connected properly replace a new one Indicator light for Chick the circuity ( especially powersupply not No power supply input weather there is power supply working input) Indicator light is broken... - Page 15 Trouble shooting Number Problems Possible reasons Countermeasure Light bulb is burned out Replace the light bulb Light bulb wiring is loosen Replace the lamp holder Light bulb is not working Problems with electrical Repair or replace it control panel Power cord is unplug Plug back power cord to outlet Outlet has no power Check outlet or circuit breaker...
- Page 16 Saunas and Contraindications Saunas and Medications Individuals who are using prescription drugs should seek the advice of their personal physician or a pharmacist for possible changes in the drugs effect when the body is exposed to far infrared waves or elevated body temperature.
-
Page 17: Warranty Information
In the rare event, you experience pain and/or discomfort, immediately discontinue sauna use. Warranty Information Vidalux warrants its products to be free of defects in material and workmanship. This warranty extends only to: a retail purchaser of a sauna or parts directly from an official supplier;... - Page 18 Vidalux shall not be liable for the loss of use of the sauna or other incidental or consequential damages. Under no circumstances shall Vidalux or any of its representatives be held liable for injury to any persons or damages to any properties.
