Summary of Contents for Applied Research and Technology ART 4x4 PRO Series

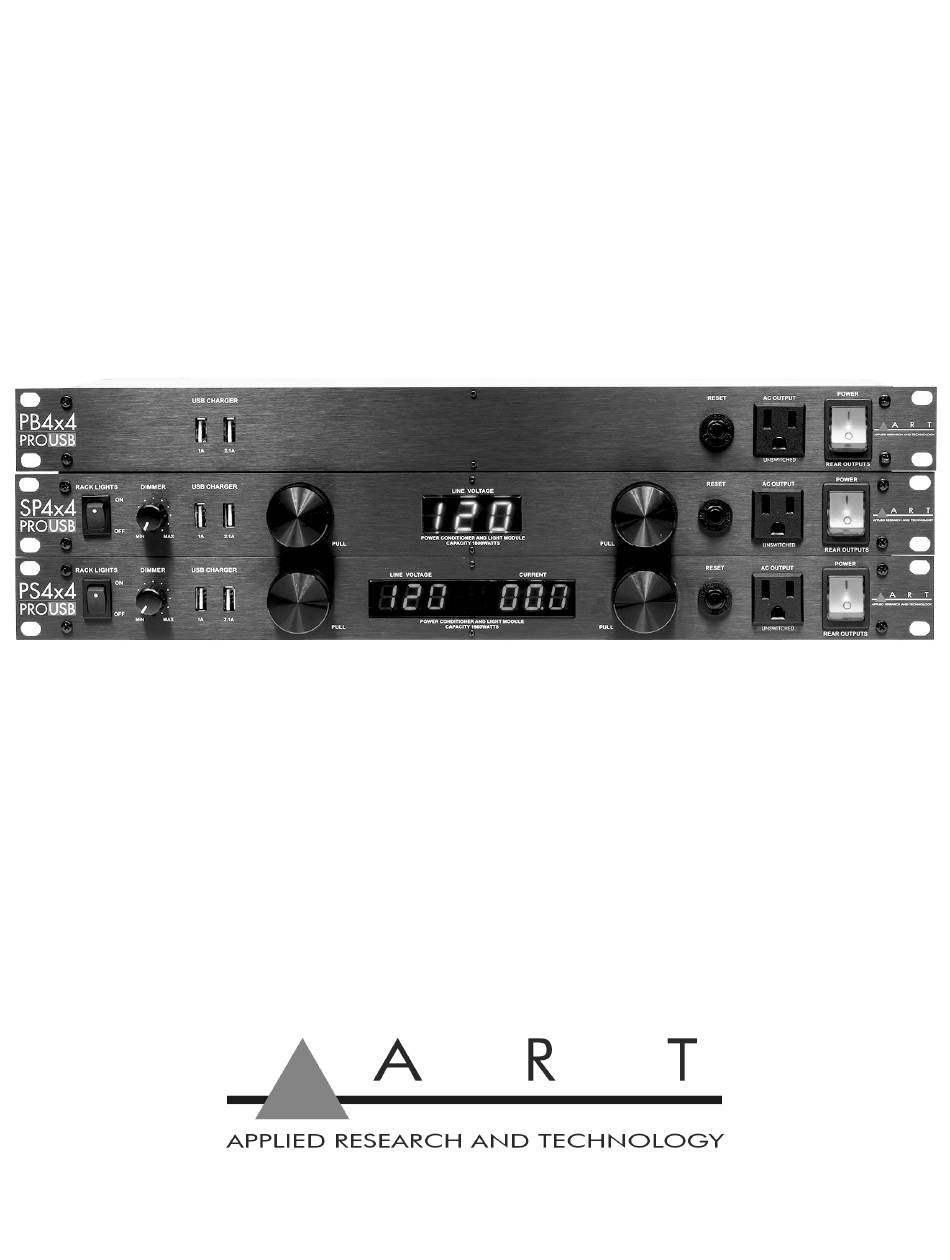

- Page 1 ART 4x4 PRO SERIES PROFESSIONAL GRADE POWER CONDITIONERS WITH ADVANCED POWER FILTERING USER'S MANUAL...
-
Page 2: Important Safety Instructions - Read First
IMPORTANT SAFETY INSTRUCTIONS - READ FIRST This symbol, wherever it appears, This symbol, wherever it appears, alerts alerts you to the presence of uninsulated you to important operating and dangerous voltages inside the enclosure maintenance instructions in the that may be sufficient to constitute a risk. accompanying literature. -
Page 3: Table Of Contents
Table of Contents: IMPORTANT SAFETY INSTRUCTIONS - READ FIRST ..............II INTRODUCTION ..........................1 FEATURES............................2 PROFESSIONAL GRADE POWER CONDITIONERS WITH APF............3 OPERATION............................4 MAXIMUM LOAD ..........................5 LAMPS (M 4 PRO & PS4 4 PRO) ..................5 ODELS POWER SWITCH..........................5 USB CHARGING PORTS .........................5 METER PREVIEW ..........................5 WARRANTY INFORMATION.......................6 ..........................6 IMITED... -
Page 4: Introduction
- you’ll be using a ART 4x4 PRO Series power conditioner. ART 4x4 PRO Series power distribution systems feature a unique "4x4" AC jack layout on the back of the unit where four of the eight rear outputs are set 1.25-inches apart, allowing the user to plug in wide power cables and multiple wall warts devices. -
Page 5: Features
FEATURES All 4x4 PRO SERIES Models (PB4x4 PRO - SP4x4 PRO - PS4x4 PRO) feature: • Advanced Power Filtering (APF) • Front-Mounted Circuit Breaker Reset Switch • Front-Mounted Unswitched Power Outlet • Two USB Charging ports 1A, 2.1A • Surge & Spike Protection •... -
Page 6: Professional Grade Power Conditioners With Apf
Professional Grade Power Conditioners with APF Domestic units (shown) Exports units use a Male IEC receptacle, as shown on the rear Export panel Rear layout (Domestic) the rear panel is the same for all three 4x4's. Rear layout (Export) the rear is the same for all three 4x4's. -
Page 7: Operation
Additionally, any signals above 10kHz are filtered from the line with over 40dB of attenuation above 100kHz. The ART 4x4 PRO SERIES Power Distribution Systems also protect your delicate electronic equipment with high voltage varistor (MOV) surge and transient suppressors. The fast-acting suppression circuit responds in less than a nanosecond, clamping transient voltages to safe levels. -
Page 8: Lamps (Models Sp4 X 4 Pro & Ps4 X 4 Pro)
MAXIMUM LOAD The eight circuit breaker protected outlets are rated at 15 amps total, which is equivalent to 1800 watts at 120 volts. If the total load on the 4x4 PRO Series Power Distribution System’s outlets (and rack lights on the SP4x4 PRO & PS4x4 PRO) exceeds 15 amps, the circuit breaker will trip, cutting off power to your rack. -
Page 9: Warranty Information
Applied Research and Technology will provide warranty and service for this unit in accordance with the following warrants: Applied Research and Technology, (A R T) warrants to the original purchaser that this product and the components thereof will be free from defects in workmanship and materials for a period of three years from the date of purchase. -
Page 10: Service
SERVICE The following information is provided in the unlikely event that your unit requires service. 1. Be sure that the unit is the cause of the problem. Check to make sure the unit has power, all cables are connected correctly, and the cables themselves are in working condition. You may want to consult with your dealer for assistance in troubleshooting or testing your particular configuration. -
Page 11: Specifications
SPECIFICATIONS Power Capacity 1800 Watts Circuit Breaker 15 Amp Domestic, 8 Amp Export Front Location Power Outlets Rear Outlets (x 8) Front Outlet (x 1) USB Charger 5V/3.1A (OVP&OCP) Power Switch Front Location - On/Off Power Switch Illumination Yes - In "On" Position Surge &... - Page 12 E-mail: support@artproaudio.com © 2019 Applied Research & Technology ART 4x4 PRO Series 4PRO-5004-104 PROFESSIONAL GRADE POWER CONDITIONERS WITH ADVANCED POWER FILTERING...
