BENDIX Wingman Advanced Troubleshooting Manual

PAGE
1
1. Park the bus on a level surface. Air
suspension must be charged as it would be
during normal operation.

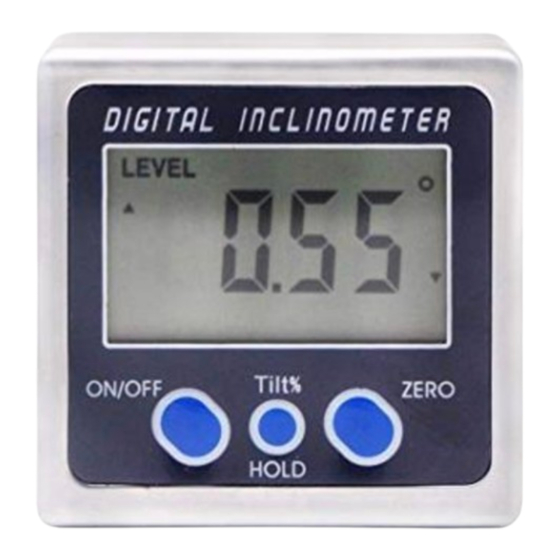

2. Place the digital inclinometer on a horizontal
section of the frame rail. Zero out the
inclinometer.
3. Place the calibrated inclinometer against the
front surface of the radar unit so that it is in
the same orientation as it was on the frame
rail.
4. Verify that it displays 0° (+/- 1.5°)
5. If no adjustment is necessary, proceed to
next page.
6. If adjustment is necessary, use a Torx T-20
Screwdriver, rotate the top left adjustment
screw on the forward-facing radar unit until
the inclinometer display reads 0° (+/- 1.5°)
7. Re-cycle the ignition key
8. If necessary, clear the DTC using Bendix
ACom.
9. Proceed to next page

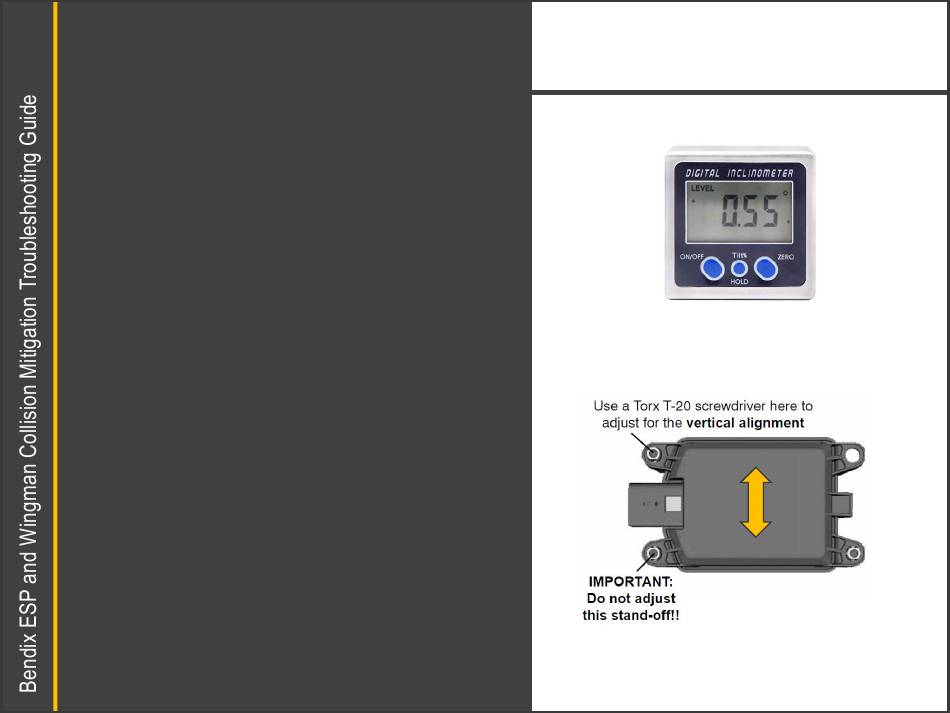

Vertical Radar Alignment
Wingman Advanced - All Model Years
Vertical Radar Alignment Check Worksheet V2
Place this side
against the
radar.
Place this side on the frame.
