AIR3 Air3 Manual

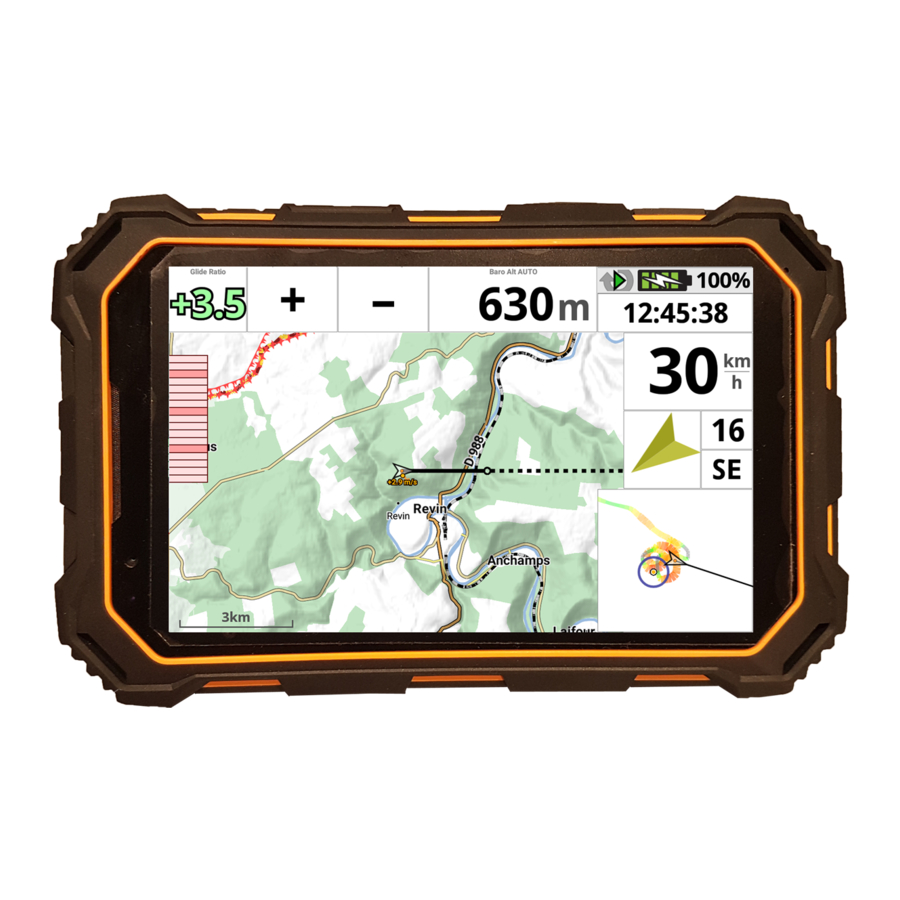

Introduction

AIR³ aims to help glider pilot's during leisure, cross country and/or competition flights.
AIR³ is provided with a customized, improved version of XCTrack PRO.
As an android tablet, AIR³ is fully compatible with any other android compatible software.

More information, instructions and support are available through www.fly -air3.com

Starting up

Air³ boots up. XCTrack is automatically launched.
If you have quit XCTrack, click on the main XCTrack widget to launch it again.

Unit buttons/interface

	Short press	Long press
1	Stand by/on/off	Power on/Off
2	Stand by off	Stand by off
3	Volume up
4	Volume down
5	Mini USB port
6	Earphone jack
7	Sim card slot
8	microSD card slot

Getting to know product

	Short press	Long press
2	Previous Waypoint (competition)	Next Waypoint (competition)
3	Zoom in	Previous Page
4	Zoom out	Next Page

AIR3 Manager

This App allows you to:

Automatically launch XCTrack on boot
Manually launch XCTrack (large widget)
Configure XCTrack Profile (Kiss – Easy – ExpertParamotor)
Configure XCTrack Theme (Black – White – eInk) - Reset all settings of XCTrack to default
Automatically get the latest Openair file (*1)
Manually download the latest Openair file (*1)
Clean up the the Openair file folder (delete files)

(*1): Openair (OA) files have to be located on a shared Google Drive (shared with you). The Air³ requires an internet connexion.
The OA files have to be named the following way:
OA.YY.MM.DD(_D).txt
_D: for files containing danger zones
Check our videos for more details...

First steps

Register your AIR³ www.fly -air3.com/register
Register on Xcontest for XCTrack Pro www.xcontest.org
Read instructions and watch videos
www.fly -air3.com/download/
www.fly -air3.com/videos/
Maps & Terrain: see instructions on the next page to free up your memory, add or remove maps and terrains
Livetracking: in order to benefit from Livetracking features, register on the beta program of XCTrack
Choose your profile/theme with
Launch XCTrack Pro and fill in your details

Maps & Terrain

caution Free up the memory by deleting unnecessary files!

Maps & Terrain (relief) are preinstalled according to your location.
Maps files are large files that fill up your memory.
You can free it up by removing unnecessary files with the file manager App.
Files are located in:
Phone storage/XCTrack/MAP/RoadMap
To add new ones, download maps from OpenAndroMaps:
https ://www.openandromaps.org/en/downloads/country s -and -regions
To add or remove new terrain files, watch the tutorial Maps&elevation files www.fly -air3.com/en/videos

Setup the Base

To fix the base, please watch the tutorial "Mounting the base"
http://www.fly -air3.com/en/videos

Frequently asked questions

Want to know more about the product

Want to know more about AIR3 Manager

Want to know more about XCTrack

AIR³ website: http://www.fl y -air3.com
FAQ: http://www.fl y -air3.com/faqs
Videos: http://www.fl y -air3.com/videos
Visit XCTrack website: https://xctrack.org/Manual.html

Technical specifications

Size & weight 214.5mm*133mm*18mm (H×W×D)/ 590g
Waterproof -Dust-proof: IP68. Dropproof and shockproof
System Android OS 5.1
Display 7.0" HD LCD,1280*800.
Mobile, Standard SIM card

2G:GSM B8/B3/B2/B5
3G:TD-SCDMA B34/B39,WCDMA B1/B2/B5/B8, CDMA:BC0
4G:TDD-LTE B38/B40/B41 FDD-LTE B1//B3/B7/B20

CPU: Quad-core 1.3G
RAM/ROM: 2GB+16GB
Wi-Fi 802.11b/g
SD card: T-card Support TF card 32GB(max)
Touch screen 5 points capacitive touch screen
Battery 7000mAh rechargeable Li-ion battery (built-in)
Camera Front: 2.0 MP + Back : 13.0 MP
Industrial grade GPS
Bluetooth 4.0
Barometer: accuracy: 0.1 m/s
NFC
Geomagnetic Sensor
Gravity sensor
Proximity sensor
Compass
Gyro Sensor/light sensor
