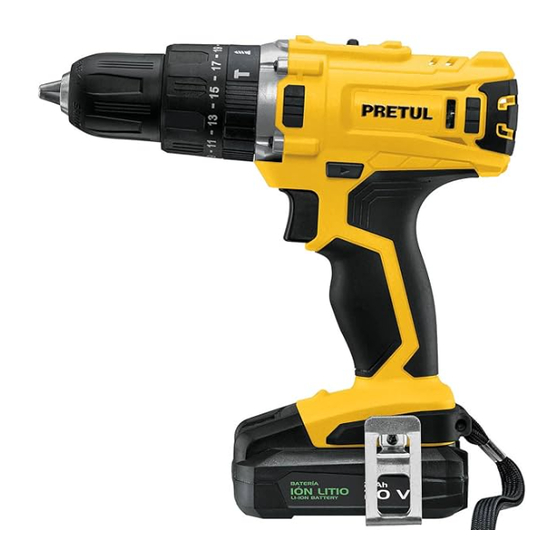

- Page 1 Manual Cordless hammer drill / drill / driver 20 V 1/2” Chuck Applies for: Model Code ROTI-20P2 26117 ROTI-20P2 2 Ah 2 Ah 20 V 20 V Read the user’s manual thoroughly CAUTION before operating this tool.
-
Page 2: Table Of Contents
Contents CAUTION Technical data Power requirements To gain the best performance of the tool, prolong the duty life, Safety warnings for power tools make the Warranty valid if necessary, and to avoid hazards Safety warnings for hammer drills / of fatal injuries please read and drills / drivers understand this manual before using the tool. -
Page 3: Technical Data
Technical data ROTI-20P2 Code 26117 Description Cordless hammer drill / drill / driver Chuck 1/2” keyless Voltage 20 V Speed Posición 1: (0 – 350) r/min (0 – 5 600) golpes/min Posición 2: (0 - 1 500) r/min (0 - 24 000) golpes/min... -
Page 4: Safety Warnings For Power Tools
Safety warnings for power tools WARNING! Read carefully all safety warnings and instruction listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references. -
Page 5: Safety Warnings For Hammer Drills / Drills / Drivers
Battery and charger Before operating the tool DANGER • Use only the PRETUL charger included • Take your time to evaluate the task and make sure all to charge the battery. Using a different charger may cause necessary precautions are in place before you start drilling. -
Page 6: Parts
Parts Keyless Torque Function selection Speed chuck regulator collar Selector Bits (5): Bits kit 1 flat bit 1 PH1 phillips bit 2 PH2 phillips bits 1 PH3 phillips bit Hexagonal magnetic extension Battery release button Direction of rotation and Switch blocking button Handle Light... - Page 7 Start up General remarks for using the battery The battery is shipped NOT CHARGED. It is necessary to charge the battery approximately 55 minutes. before being able to use it. The normal charge is 32 °F to 113 °F. When not in this level the charge automatically stops until reaching the right temperature.
- Page 8 Start up Torque adjust • To select the desired torque level to screw drive, turn the torque regulator until it matches the corresponding number with the upper mark: From 1 to 4 for small screws, From 5 to 9 for screws on soft materials, From 10 to 15 for screws on soft and hard material.
-
Page 9: Troubleshooting
Troubleshooting Problem Cause Solution The hammer drill • Low battery. • Charge the battery. looses efficiency. The trigger cannot be • The direction rotation button is in the blocking • Move the direction button into the rotate or reverse pushed. position. -
Page 10: Notes
Notes ENGLISH... -
Page 11: Authorized Service Centers
Authorized service centers In the event of any problem contacting a TRUPER Authorized Service Center, please see our webpage WWW.TRUPER.COM to get an updated list, or call our toll-free numbers 800 690-6990 or 800-018-7873 to get information about the nearest Service Center. AGUASCALIENTES DE TODO PARA LA CONSTRUCCIÓN MORELOS... -
Page 12: Warranty Policy
Model Code Brand ROTI-20P2 26117 Warranty. Duration: 1 year. Coverage: parts, components and workmanship against manufacturing or operating defects, except if used under conditions other than normal; when it was not operated in accordance with the instructive; was altered or repaired by personnel not authorized by TRUPER .
