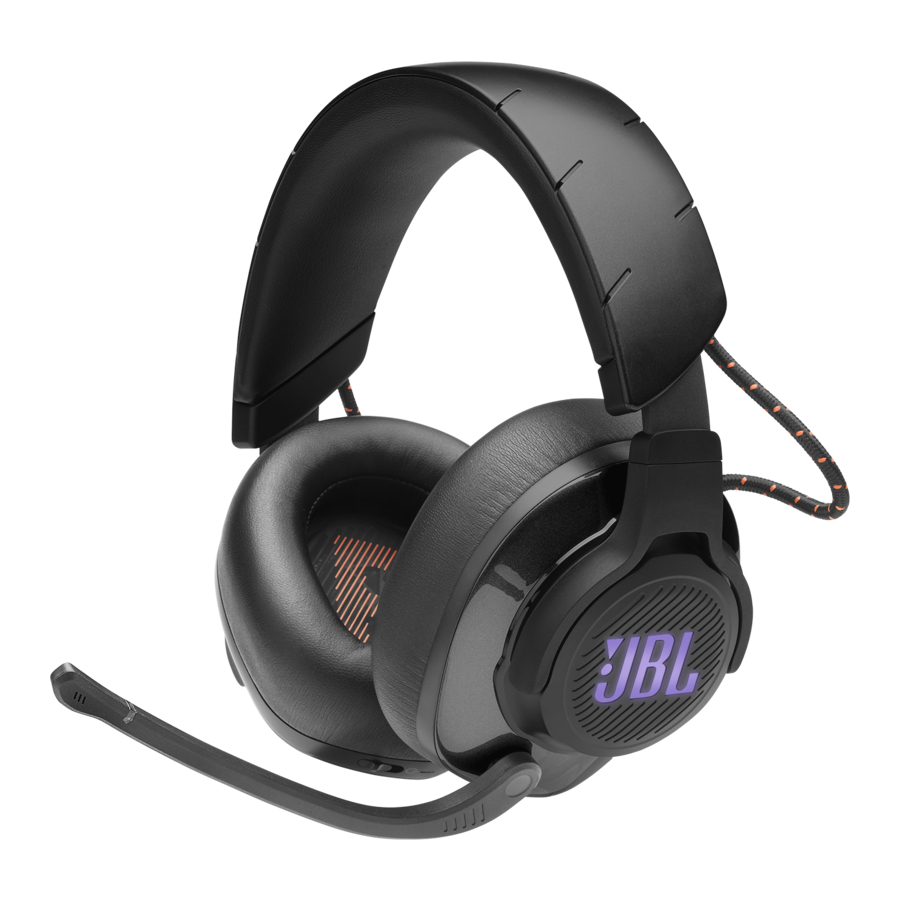

JBL Quantum 600 Manual
WHAT'S IN THE BOX
REQUIREMENTS
JBL
SOFTWARE REQUIREMENTS
PLATFORMS: WINDOWS 7 or Higher 500MB OF FREE HARD DRIVE SPACE FOR INSTALLATION
System compatibility
PC | Xbox™ | PlayStation™ | Nintendo Switch™ | Mobile | MAC | VR
OVERVIEW
- Game audio-chat balance dial
- Volume Control
- Detachable Windshield foam
- * Notification LED for mic mute / unmute
- * RGB-lit JBL logo
- CHARGING LED
- 3.5mm Audio Jack
- USB-C port
- Voice Focus Boom Microphone
- Flat-fold ear cup
- * Microphone Mute / unMute
- POWER / 2.4G LED
- POWER ON / OFF slider
- 2.4G PAIRING BUTTON
- Volume Control
- MIC MUTE BUTTON
*
POWER ON & CONNECT
SETUP
BUTTON COMMAND
First time setup
- Go to Sound Settings
- UNDER "PLAYBACK" HIGHLIGHT JBL QUANTUM600 GAME AND SELECT "SET DEFAULT DEVICE"
- HIGHLIGHT JBL QUANTUM600 CHAT AND SELECT "SET DEFAULT COMMUNICATION DEVICE"
- UNDER "RECORDING" HIGHLIGHT JBL QUANTUM600 CHAT AND SELECT "SET DEFAULT DEVICE"
- IN YOUR CHAT APPLICATION SELECT JBL QUANTUM600 CHAT AS THE DEFAULT AUDIO DEVICE
MICROPHONE
CHARGING
LED BEHAVIOURS
TECH SPEC
| Driver size: | 50 mm Dynamic drivers |
| Frequency response: | 20 Hz - 20 kHz |
| Microphone frequency response: | 100 Hz -10 kHz |
| Max input power | 30 mW |
| Sensitivity: | 100 dB SPL @1 kHz / 1 mW |
| Maximum SPL: | 97 dB |
| Microphone sensitivity: | -40 dBV @1 kHz / Pa |
| Impedance: | 32 ohm |
| 2.4G Wireless transmitter power: | <4 dBm |
| 2.4G Wireless modulation: | π/4-DQPSK |
| 2.4G Wireless carrier frequency: | 2403.35 MHz - 2479.35 MHz |
| Battery type: | Li-ion battery (3.7 V / 1000 mAh) |
| Power supply: | 5 V |
| Charging time: | 2 hrs |
| Music play time with RGB lighting off: | 14 hrs |
| Microphone pickup pattern: | Unidirectional |
| Weight: | 346 g |
