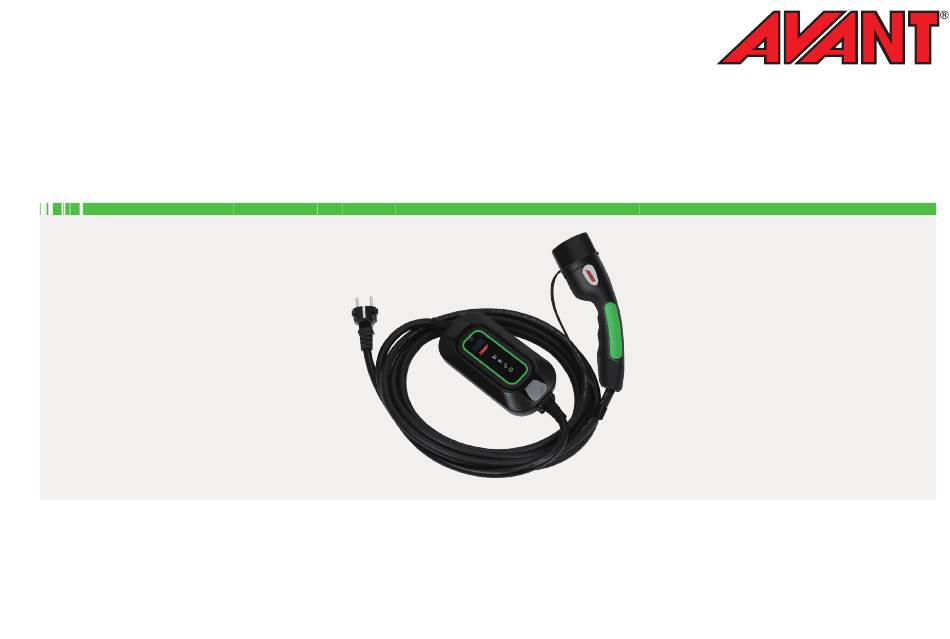

- Page 1 A477213 EV PORTABLE CHARGER User Manual English A464571...
-
Page 2: Table Of Contents
CAUTION: Contents · Before operation, please read the operation guide in detail to understand the correct use of the equipment. 1. Introduction ............10 After reading, please keep it properly for future reference. 2. Technical parameters ........· Use the power source with external upstream Circuit Breaker. -
Page 3: Introduction
Introduction Introduction to the Portable EV Charger(Mode 2) Power Connected Charging Error Display Setting button Specifications Power Supply Cable Total Connector Model Voltage Current Type Length Type A464571 1 Phase 220-250V AC 8/10/13/16A... -
Page 4: Technical Parameters
Technical parameters Explanation of the operating display Parameters Item Rated voltage 230V AC ±15% 1ph TN/TT/IT Grid frequency 50/60 Hz IP protection class IP54 Operating temperature -25°C~+45°C Storage temperature -40°C~+85°C Constant current Charging time Humidity Up to 75%, Maximum value at 40°C Temperature Countdown Altitude... -
Page 5: Use Of The Charger
Use of the charger Start charging Stop charging Step Illustration Operation Step Illustration Operation Insert the plug into Insert the plug into the correct power the correct power supply socket. supply socket. Remove the protective cap and Dissconnect the fully insert the charging connecror charging connector from the EV. -
Page 6: Function
Function Switch current Timer function Step Illustration Operation Step Illustration Operation Insert the plug into Insert the plug into the correct power the correct power supply socket. supply socket. Press the Setting Press the Setting button for2 seconds,no button for2 seconds,no more than 4 seconds. -
Page 7: Light Status
Light status Operation Display Light Status Status Power off Blink Light Power Check Connect Standby Charging Connected Error Charging Charge complete CP Error Over/under voltage Over current protection Electric leakage protection No ground connection Temperature warning Persisent high temperature... - Page 8 Importer: BAT.POWER OY...
