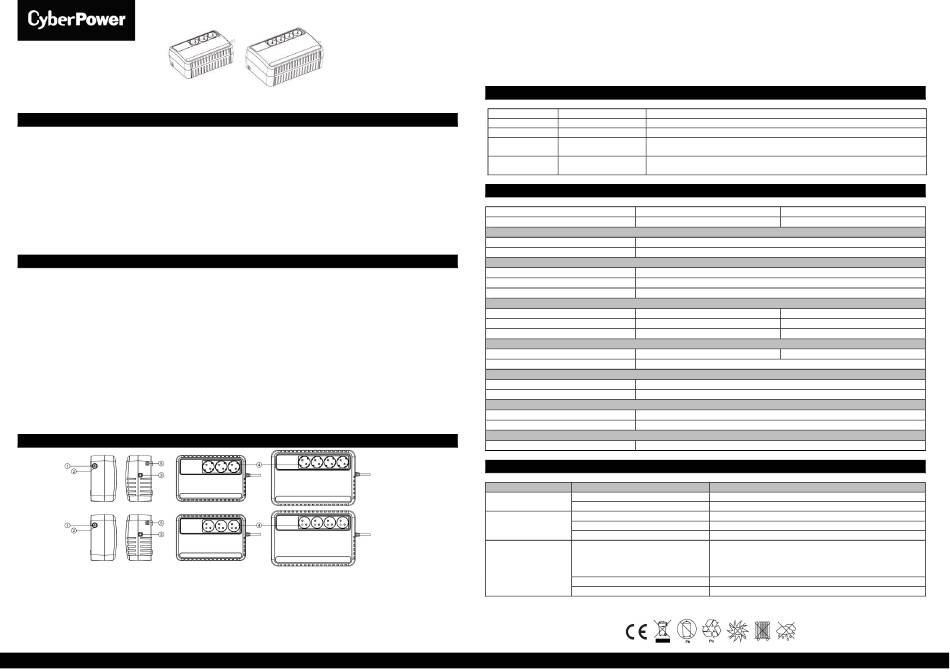

CyberPower BU1000EU User Manual

BU650EU / BU1000EU
IMPORTANT SAFETY INSTRUCTIONS
This manual contains important safety instructions. Please read and follow all instructions carefully during installation and operation of the unit. Read this manual
thoroughly before attempting to unpack, install, or operate your UPS.
CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area free of conductive contaminants. (See the
specifications for the acceptable temperature and humidity range.)
CAUTION! To reduce the risk of overheating the UPS, do not cover the UPS' cooling vents and avoid exposing the unit to direct sunlight or installing the unit near
heat emitting appliances such as space heaters or furnaces.
CAUTION! Do not attach non-computer-related items, such as medical equipment, life-support equipment, microwave ovens, or vacuum cleaners to UPS.
CAUTION! Do not allow liquids or any foreign object to enter the UPS. Do not place beverages or any other liquid-containing containers on or near the unit.
CAUTION! In the event of an emergency, press the OFF button and disconnect the power cord from the AC power supply to properly disable the UPS.
CAUTION! Do not attach a power strip or surge suppressor to the UPS.
CAUTION! Unplug the UPS prior to cleaning and do not use liquid or spray detergent.
CAUTION! Servicing of batteries should be performed or supervised by personnel knowledgeable of batteries and the required precautions. Keep unauthorized
personnel away from batteries.
INSTALLING YOUR UPS SYSTEM
UNPACKING
The box contains the following: (1) UPS Unit x1; (2) USB Cable x1; (3) User Manual x1
*PowerPanel® Personal software is available on our website. Please visit www.cyberpower.com and go to the Software Section for free download.
HARDWARE INSTALLATION GUIDE
1. Your new UPS may be used immediately upon receipt. However, recharging the battery for at least 8 hours is recommended to ensure that the battery's
maximum charge capacity is achieved. Charge loss may occur during shipping and storage. To recharge the battery, simply leave the unit plugged into an AC
outlet. The unit will charge in both the on and off position.
2. With the UPS unit off and unplugged, connect the computer, monitor, and any externally powered data storage device (Wireless router, broadband modem, etc.)
into the battery power supplied outlets. DO NOT plug a laser printer, copier, space heater, vacuum, paper shredder or other large electrical device into the
battery power supplied outlets. The power demands of these devices will overload and possibly damage the unit.
3. Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall branch outlet is protected by a fuse or circuit breaker and does not
service equipment with large electrical demands (e.g. air conditioner, refrigerator, copier, etc.) Avoid using extension cords.
4. Press the power switch to turn the unit on. The power on indicator light will illuminate and the unit will "beep".
5. If an overload is detected, an audible alarm will sound and the unit will emit one long beep. To correct this, turn the UPS off and unplug at least one piece of
equipment from the battery power supplied outlets. Wait 10 seconds. Make sure the circuit breaker is normal and then turns the UPS on.
6. To maintain optimal battery charge, leave the UPS plugged into an AC outlet at all times.
7. To store your UPS for an extended period, cover it and store with the battery fully charged. Recharge the battery every three months to ensure battery life.
1. Power Switch
Press the switch for 2 seconds to turn the UPS ON or OFF.
Alarm setting: The audible alarm can be turned OFF or ON by quickly pressing the POWER button twice. The default setting is for the Alarm On. To
turn the Alarm Off, quickly press the power button twice. You will hear two short beeps when the Alarm is turned off. To turn the Alarm back on,
quickly press the power button twice. You will hear a single short beep when the Alarm is turned on.
2. LED Indicators
The LED indicates the status of UPS.
3. Input Power Cord
Connect to utility power.
Copyright © 2022 Cyber Power Systems, Inc. All rights reserved.
User's Manual
BASIC OPERATION
4. AC Outlets
Provides battery backup and surge protection. They ensure power is provided to connected equipment over a period of time during power failure.
5. USB Port
This port allows connection and communication from the USB port on the computer to the UPS.
The UPS communicates its status to the PowerPanel ® Personal software.
DEFINITIONS FOR ILLUMINATED LED INDICATORS
LED Alarm
On Off Normal
Flash Beep Twice Utility Failure - The UPS is providing battery power to outlets.
Utility Failure - The UPS is providing battery power. The rapid beeps indicate the battery will run
Flash Rapid Beeping
out of power shortly.
Overload - Occurs when connected equipment exceeds the rating of the unit. Turn the UPS off and
On / Flash Constant Tone
unplug at least one piece of equipment from the UPS.
TECHNICAL SPECIFICATIONS
Model
Capacity (VA/W)
Input
Voltage Range
Nominal Frequency
Output
On Battery Output Voltage
On Battery Output Frequency
Overload Protection
Physical
Total UPS Receptacles
Dimensions (W x H x D)(mm)
Weight (kg)
Battery
Sealed Maintenance Free Lead Acid Battery
Typical Recharge Time
Warning Diagnostics
Indicators
Audible Alarms
Environmental
Operating Temperature
Operating Relative Humidity
Communication
PowerPanel® Personal Software
Problem Possible Cause
Batteries are not fully charged.
The UPS does not perform
expected runtime. Battery is slightly worn out.
The unit is not connected to an AC outlet.
The UPS will not turn on. The battery is worn out.
Mechanical problem.
Fuse is blown or breaker is tripped due to
Outlets do not provide overload.
power to equipment.
Batteries are discharged.
Unit has been damaged by a surge or spike.
All rights reserved. Reproduction without permission is prohibited.
11F., No.26, Jinzhuang Rd., Neihu Dist., Taipei City 114, Taiwan
Condition
BU650EU BU1000EU
650/360 1000/600
167~295Vac
50/60Hz
230Vac +/-10%
50/60Hz +/-1%
Fuse / Circuit Breaker
3
158 x 91.5 x 240 190 x 110.5 x 290
3.8 6.9
RBP0119 x1 RBP0119 x2
8 Hours to 90% from total discharge
Power On / Using Battery
On Battery, Low Battery, Overload, Fault
0C to 40C
0 to 90%
Windows 10/8/7, Windows Server 2016/2012/2008, Linux
TROUBLESHOOTING
Solution
Recharge the battery by leaving the UPS plugged in.
Contact CyberPower Systems Technical Support.
The unit must be connected to a 220-240V outlet.
Contact CyberPower Systems Technical Support.
Contact CyberPower Systems Technical Support.
Turn the UPS off and unplug at least one piece connected equipment.
Unplug the power cord of the UPS then replace the blown fuse with a
spare one or press the circuit breaker knob. Connect power cord then turn
the UPS on. Make sure that your spare fuse meets the specification.
Allow the unit to recharge for at least 4 hours.
Contact CyberPower Systems Technical Support.
4
K01-C000719-00
