• M2P_SB/M2M_SB:
Step 1:
Locate the proper mounting hole based on the length of your M.2 SSD drive. If needed, move the standoff
to the desired mounting hole. Insert the M.2 SSD into the M.2 connector at an angle.
Step 2:
Press the M.2 SSD down and then use the included screw to secure it in the connector. Remove the
protective film from the bottom of the heatsink. Then replace the heatsink and secure it to the original
hole.

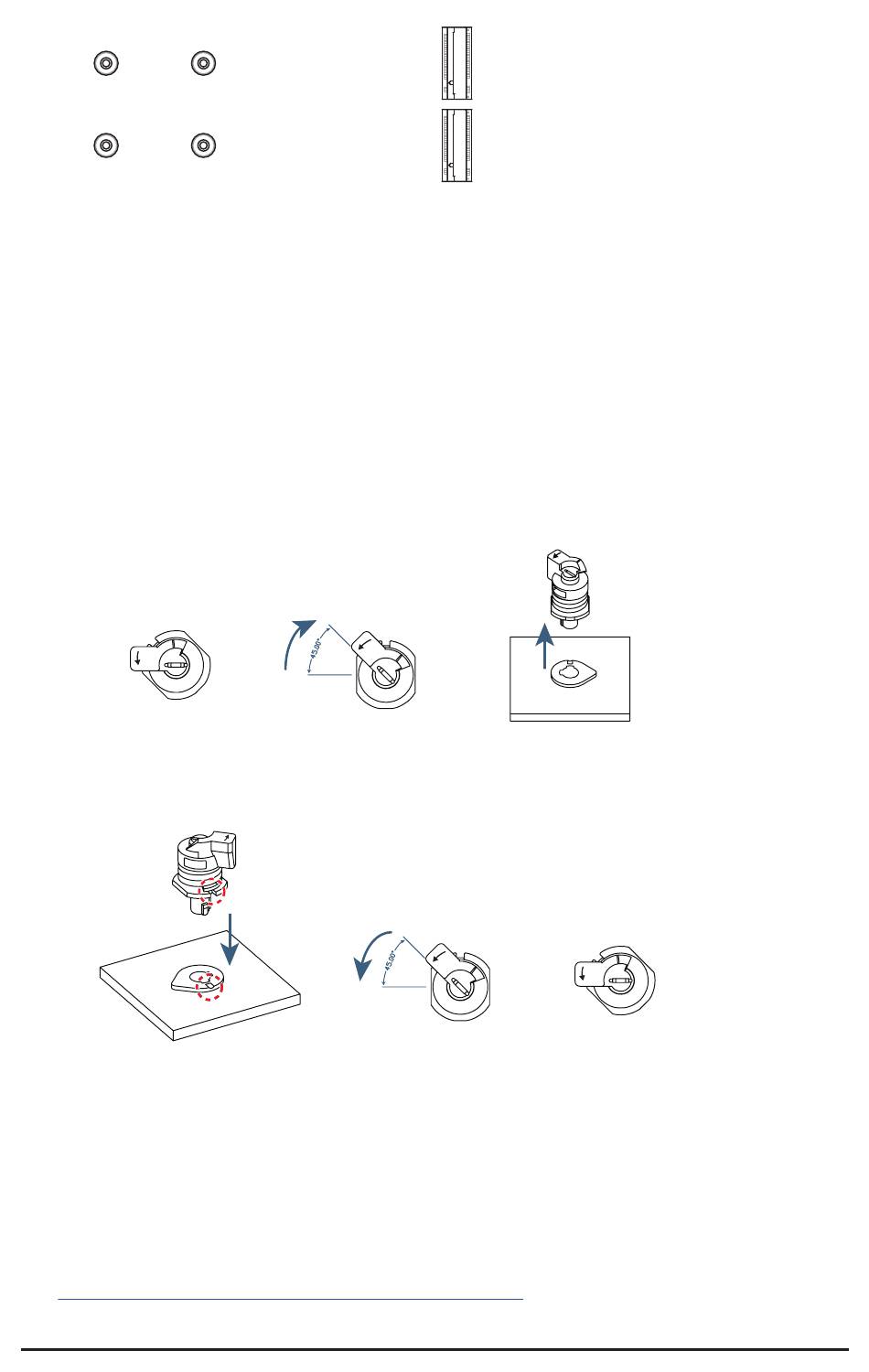

• Removing and Installing the M.2 EZ-Latch Plus clip:
Removal:
jRotate the latch clockwise by 45 degrees until you hear a "click."
kPull the M.2 EZ-Latch Plus clip straight up vertically.
Installation:
j A lign the notch on the M.2 EZ-Latch Plus clip with the notch on the motherboard, and insert it vertically
downward.
kRotate it counterclockwise by 45 degrees until you hear a "click."
& Please visit GIGABYTE's website for details on using M.2 EZ-Latch Plus.
M.2 SSD installation/removal with M.2 EZ-Latch Plus:
https://www.gigabyte.com/WebPage/1098/M2-latchplus-simple.html
* Motherboard heatsink design may vary by model.
80 60 42
80 60 42
M2P_SB
M2M_SB
