DOTWORKZ ZB080UM User Manual

Z-bracket universal roof mount
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

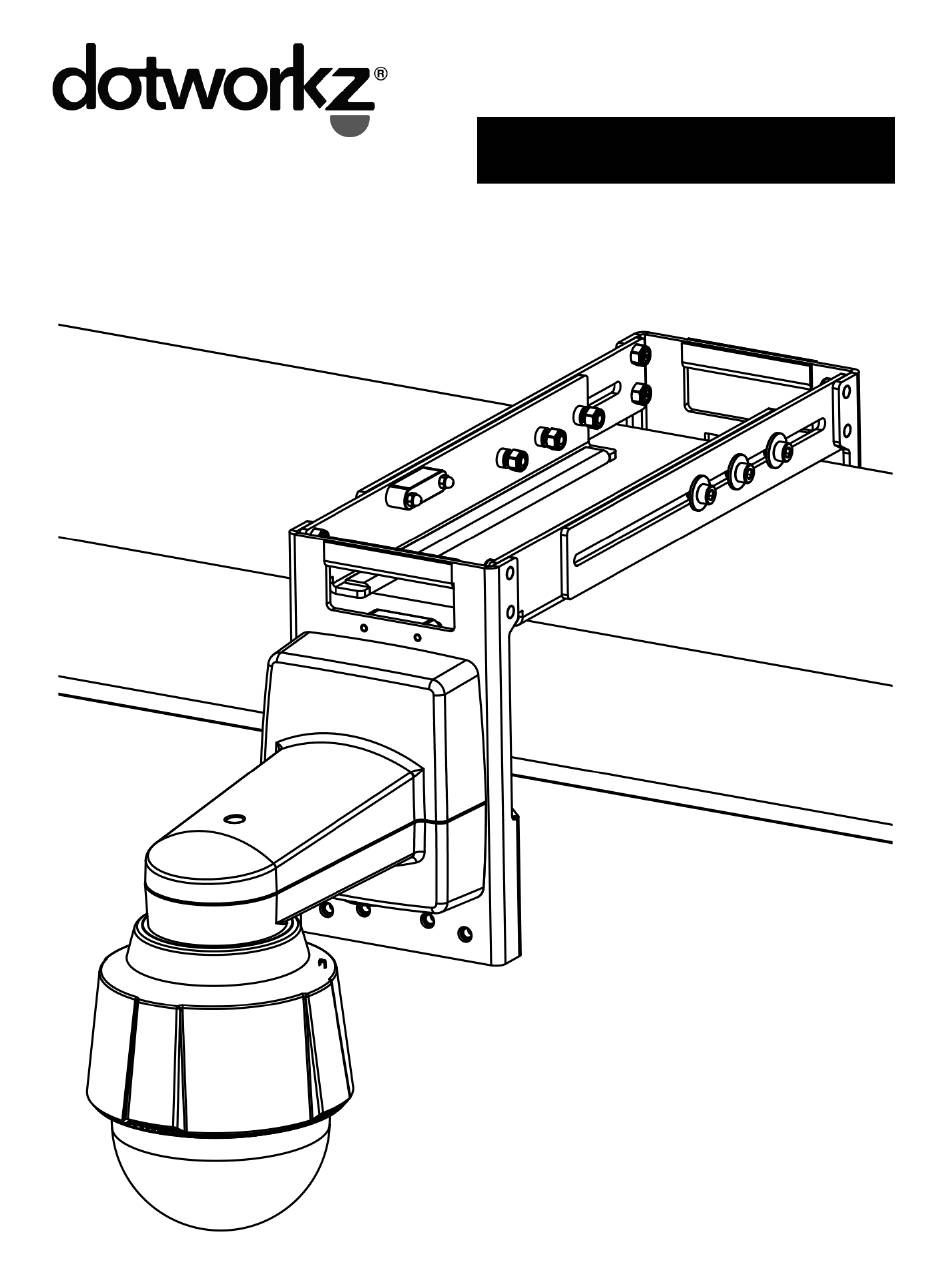

U S E R M A N U A L
Z-Bracket Universal
Roof Mount
Pa r a p e t Wa l l s ,
C o r n e r M o u n t ,
N o n - Pe n e t r a t i n g ,
A n c h o r i n g , a n d
Pe r m a n e n t
I n s t a l l a t i o n s f o r
O u t d o o r H o u s i n g s
a n d C a m e r a s .
Z B 0 8 0 U M ( 5 / 2 5 )

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZB080UM and is the answer not in the manual?

Questions and answers

Summary of Contents for DOTWORKZ ZB080UM

  • Page 1 U S E R M A N U A L Z-Bracket Universal Roof Mount Pa r a p e t Wa l l s , C o r n e r M o u n t , N o n - Pe n e t r a t i n g , A n c h o r i n g , a n d Pe r m a n e n t I n s t a l l a t i o n s f o r...

  • Page 2: Table Of Contents

    Camera and/or housing installation ............... 28 Wall installation ......................30 Uninstalling the Z-Bracket ..................34 Safety and care information ....................36 Extreme weather precautions .................. 36 Fall hazards ........................ 36 Maintenance ......................37 Product specifications ......................38 Dimensions ........................ 38 ZB080UM (5/25)

  • Page 3: List Of Illustrations

    Final fastening sequence for swivel mounts ..........33 Unfastening swivel mount screws in order, keep arms tight ....... 34 Open bracket, remove from the wall, and rest safely ........35 Product dimensions (small assembly) ............38 Product dimensions (large and extra-large assemblies) ......39 ZB080UM (5/25)

  • Page 4: Important Notices

    Product support If you have questions about installation, assembly, or compatibility, all documentation and support material can be found online at dotworkz.com/z-bracket. This webpage is regularly updated with the latest resources and guidance to support safe and effective use of your mount.

  • Page 5: Safety Instructions

    12. Before finalizing the installation, verify that all fasteners are tightened, and the mount is stable and level. 13. Route cables securely to prevent strain, tangling, and/or exposure to damage. 14. Conduct a final inspection after installations, ensuring all components are properly positioned, secured, and free of obstructions. ZB080UM (5/25)

  • Page 6: Warranty Information

    Z-Bracket Universal Roof Mount Warranty information Dotworkz offers a one-year limited warranty from the date of fulfillment for all products unless otherwise stated. o Warranty Details: If the product or any part proves defective in material or workmanship, Dotworkz will repair or replace the defective part at its discretion.

  • Page 7: Liability Statement

    Also include the Sales Order or Purchase Order as proof of purchase. Liability statement The liability of Dotworkz, if any, and the purchaser’s sole and exclusive remedy for any claim, regardless of legal theory—whether in contract, tort, or otherwise—shall be limited to the actual purchase price of the product in question.

  • Page 8: First Steps

    ▪ 6mm Hex L-Key ▪ 13mm Open-end wrench o Additional hardware pack ▪ (4) M8 Screws ▪ (4) Flat washers ▪ (2) M8 Carriage bolts ▪ (6) M8 Locknuts ▪ (2) 5/16” Concrete screws o Printed material ▪ Quick guide ZB080UM (5/25)

  • Page 9: Product Overview

    Back plate 11 Open-end wrench mounting hardware Small arms set Swivel mount screws 12 Hex L-Key Large arms set Swivel mounts 13 Quick guide Arms set locknuts Additional Hardware Figure 1. Package contents – components and tools included ZB080UM (5/25)

  • Page 10: Product Description

    Because the unit is installed from the rooftop side, it improves safety and access during setup, while also enabling easier cable routing into buildings. This makes it particularly well-suited for situations where wall surfaces are high, difficult to reach, or part of rented properties where structural modifications are not allowed. ZB080UM (5/25)
  • Page 11 If a fully permanent installation is preferred, the mount can be securely fastened to the wall using standard concrete anchors—providing a durable, fixed solution without compromising the ease of top-down installation from the roof. ZB080UM (5/25)

  • Page 12: Components Breakdown

    Components breakdown Z-Bracket Universal Roof Mount Front plate #1 Dotworkz pattern Threaded #2 Axis mounts Rubber handle Acorn nuts studs #3 Axis cabinets Tubular level Rubber spacers Figure 3. Front plate – labeled components and mounting patterns The Z-Bracket front plate is the main mounting surface for cameras or housings, providing a secure and adaptable interface for installation.
  • Page 13 M8 PEM nuts to be used with the mounting hardware included. The first, the Dotworkz pattern, is used for securing Dotworkz housings, including the S-Type, STXL, D-Series, and HD12. The second, the Axis mount pattern, is designed for the Axis TQ5001-E and T91D61 mounts, which support a variety of Axis camera series such as P33, P55, P56, Q37, Q60, Q61, M32, and M50, among others.

  • Page 14: Back Plate

    All details previously mentioned about the handle apply here as well, including the possibility of repositioning it if it moves and replacing it with a 4-inch section of rubber trim from an unused arm set, depending on the configuration. ZB080UM (5/25)
  • Page 15 Z-Bracket if needed. These diamond cutouts can also be used to hold concrete screws if the standard bottom mounting holes are obstructed or if additional fasteners are desired for increased stability during permanent installations. ZB080UM (5/25)

  • Page 16: Sliding Arms Set

    The left front arm is distinct in that it also houses the tubular level, which aids in alignment. This arm follows pattern #1, corresponding to the left side of the front plate. ZB080UM (5/25)
  • Page 17 Z-Bracket package. These locknuts fasten to the plates’ threaded studs, aligning with the fastening patterns of the arms. The full process for combining and installing the arm sets will be detailed in the assembly section. ZB080UM (5/25)

  • Page 18: Swivel Mounts

    Note: In some cases, residual powder coating may remain on the PEM nuts for the structural components, making it difficult to start the screw threads for the swivel mounts. Do not force the screw—apply steady, controlled pressure. Once the screw breaks through the coating, threading will become smoother. ZB080UM (5/25)
  • Page 19 Z-Bracket Universal Roof Mount [This page is intentionally left blank] ZB080UM (5/25)

  • Page 20: Assembly Guide

    With both the installation type and wall thickness determined, refer to the configuration table, shown in the next page, to identify the correct assembly setup for your application. This will help ensure that your Z-Bracket has the proper components installed to serve your specific installation environment. ZB080UM (5/25)
  • Page 21 Note: For permanent installations using concrete screws, pre-drill the wall using a 1/4" masonry drill bit to a minimum depth of 3 1/4". A pilot hole is recommended to ensure proper alignment and to prevent damage to the wall surface during drilling. ZB080UM (5/25)

  • Page 22: Sliding Arms Set Installation

    Locknuts Figure 9. Close-up view of first sliding arm installation Note: Colored stickers and arrows have been added to assist with orientation and to help match each arm to its correct position on the front and back plates. ZB080UM (5/25)

  • Page 23: Tilting Technique Sequence For Sliding Arm Installation

    Then, slide the arms open until the second arm aligns with its respective threaded studs. Once positioned, push both arms fully into place and secure them using the M8 locknuts. ZB080UM (5/25)

  • Page 24: Extra-Large Configuration Assembly Instructions

    The large arm should be on the left side, and the small arm should be on the right. The front arm of the small set should be placed on top of the back arm of the large set. ZB080UM (5/25)

  • Page 25: Exploded View Of Extra-Large Configuration Assembly

    5. With both arm sets properly fastened; you can now proceed with the sliding arm set installation as described in the previous section. After all components are in place, check for proper alignment and adjust if necessary. Figure 13. Fully assembled extra-large sliding arms configuration ZB080UM (5/25)

  • Page 26: Installing The Swivel Mounts

    3. With the screws partially installed, position each swivel mount onto its respective screw. Hold the mount in place by hand and continue tightening the screw into the mount. Repeat this process for all required mounts. ZB080UM (5/25)

  • Page 27: Tightening The Screw While Stabilizing The Mount With A Wrench

    5. With the mounts rigidly installed, complete the process by backing out each swivel mount until it contacts the PEM nuts on the back plate. This is the recommended position for the mounts before proceeding to the wall installation. Figure 16. Screws fully backed out for wall mounting ZB080UM (5/25)

  • Page 28: Installation Guide

    If installing a housing, the camera should be placed inside the enclosure and secured before attaching the housing to a Z-Bracket unit, as shown above. *Follow all safety guidelines while installing cameras to the designated mounting equipment. ZB080UM (5/25)

  • Page 29: Proper Hardware Alignment With Matching Hole Patterns

    If desired, this is also a good time to organize and secure cable management, so the unit is prepared for its final deployment configuration. Figure 19. Completed setup with Z-Bracket, housing, and cable routing ZB080UM (5/25)

  • Page 30: Wall Installation

    Pull the mount toward the user to eliminate any gaps between the wall and the front plate. For corner installations, the mount can be slightly tilted to ensure proper alignment of the corner spacers. ZB080UM (5/25)

  • Page 31: Spacer Contact And Pull Direction For Both Installs

    Once positioned correctly, retighten all screws on the sliding arms to rigidly secure the mount. Note: In permanent installations, the mount can be closed fully until the bent section of the back plate contacts the wall. Figure 23. Closing the mount and securing the sliding arms ZB080UM (5/25)

  • Page 32: Correct Swivel Mount Alignment And Initial Fastening

    7. Once leveled, fully fasten the swivel mounts to secure the installation. The screws do not need to be overtightened—they are long enough to accommodate flashings and thin walls, they should only be tightened until the mount feels stable. The correct fastening method is outlined in the next page: ZB080UM (5/25)

  • Page 33: Final Fastening Sequence For Swivel Mounts

    Additional mounting holes are also available on the front arms if extra fasteners are desired to increase stability. 8. To complete the installation, tidy up the setup and perform any final cable management as needed. ZB080UM (5/25)

  • Page 34: Uninstalling The Z-Bracket

    4. With one hand on the front handle, loosen the screws on the sliding arms. Carefully open the mount by pushing the back plate away from the wall until there’s ample clearance. ZB080UM (5/25)

  • Page 35: Open Bracket, Remove From The Wall, And Rest Safely

    Note: Preparing the mount for shipping For safer shipping and to avoid damage to PEM nuts, we recommend removing the swivel mounts entirely. The rest of the Z-Bracket assembly can remain assembled since it's structurally robust and can handle typical transport. ZB080UM (5/25)

  • Page 36: Safety And Care Information

    When performing camera adjustments, maintenance, or cable checks, remove the unit from the wall rather than working on it while mounted. Never unfasten the sliding arm before the swivel mounts are loosened; this may cause the unit to swing open uncontrollably. ZB080UM (5/25)

  • Page 37: Maintenance

    Verifying that the camera or housing remains level using the built-in tubular • levels. Confirming that no cables are pinched or exposed to sharp edges. • If the system has been exposed to vibration (e.g., from wind or machinery), periodic retightening may be needed. ZB080UM (5/25)

  • Page 38: Product Specifications

    Product specifications Z-Bracket Universal Roof Mount Dimensions Figure 29. Product dimensions (small assembly) ZB080UM (5/25)

  • Page 39: Product Dimensions (Large And Extra-Large Assemblies)

    Z-Bracket Universal Roof Mount Figure 30. Product dimensions (large and extra-large assemblies) ZB080UM (5/25)
  • Page 40 Z-Bracket Universal Roof Mount SCAN Dotworkz, Inc. 9340 Stevens Rd, For more Santee, CA 92071 United States Z-Bracket USA Tel (866) 575-4689 Information sales@dotworkz.com Or visit www.dotworkz.com/z-bracket ZB080UM (5/25) dotworkz.com...
