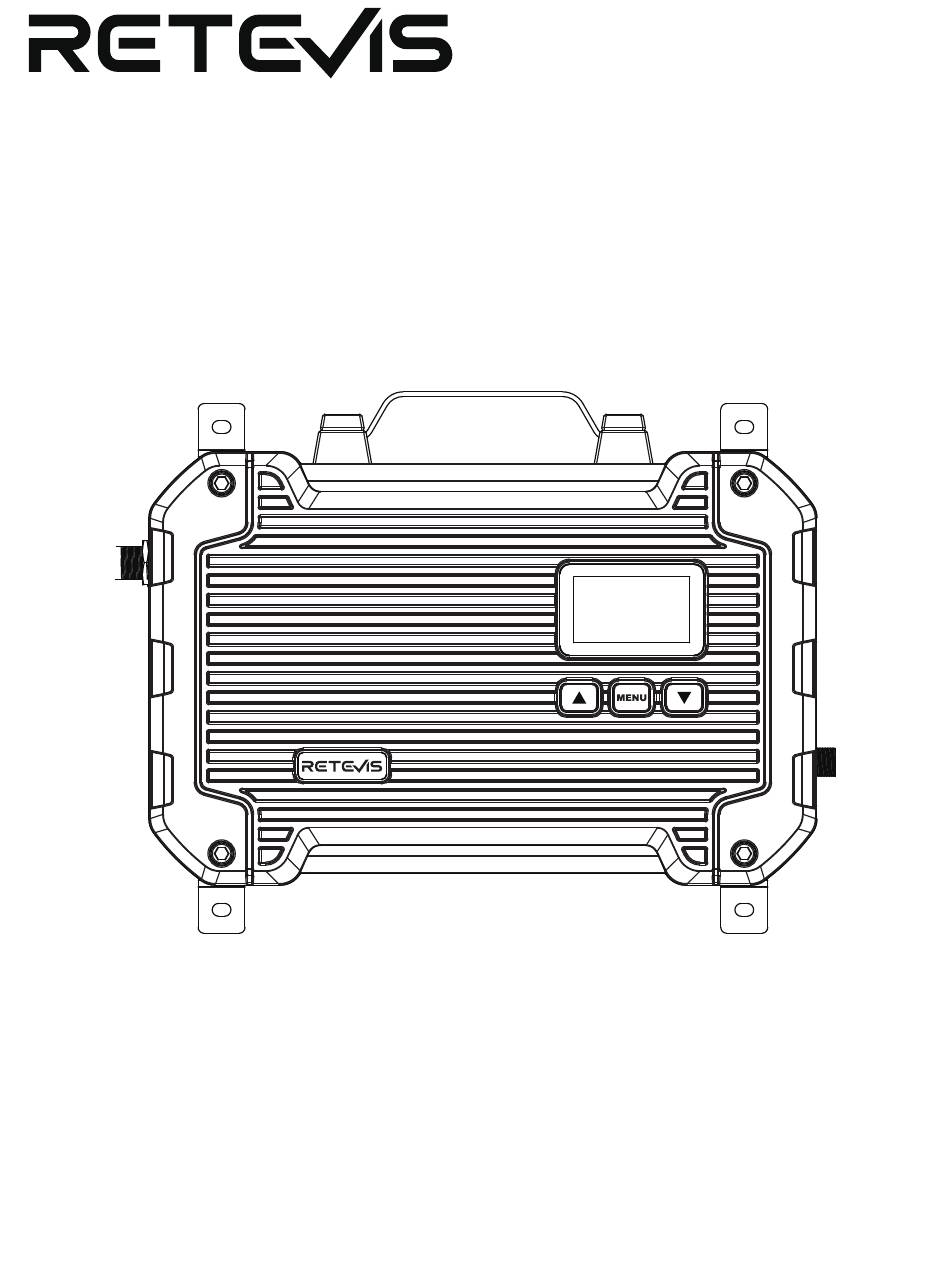

- Page 1 RT97L GMRS Repeater USER’S MANUAL...
-
Page 2: Table Of Contents
Contents To users -------------------------------------------------------01 Installing/Removing the Power Adapter -------------------------02 Get Familiar with the Repeater ---------------------------------03 Key Functions -------------------------------------------------04 Radio Settings ------------------------------------------------05 Basic Operation -----------------------------------------------05 Frequency List ------------------------------------------------07 CTCSS/DCS List -----------------------------------------------08 Features ------------------------------------------------------10 Technical Parameters ------------------------------------------10 Troubleshooting Guide -----------------------------------------11 Warnings -----------------------------------------------------12 Guarantee ----------------------------------------------------16... -
Page 3: To Users
To users: Welcome to choose our company repeater. We will provide you with the reliable,clearly, efficient communication service. In order to let you learn more functions, usage and maintenance method about this repeater, please read this manual carefully before you use the product. -
Page 4: Installing/Removing The Power Adapter
Installing/Removing the Power Adapter Hold the power adapter connector and rotate it clockwise into the power port on the side of the repeater until it is securely tightened. To remove the power adapter, rotate it counter- clockwise and detach the connector. Installing/Removing the Antenna or Feedline ... -
Page 5: Get Familiar With The Repeater

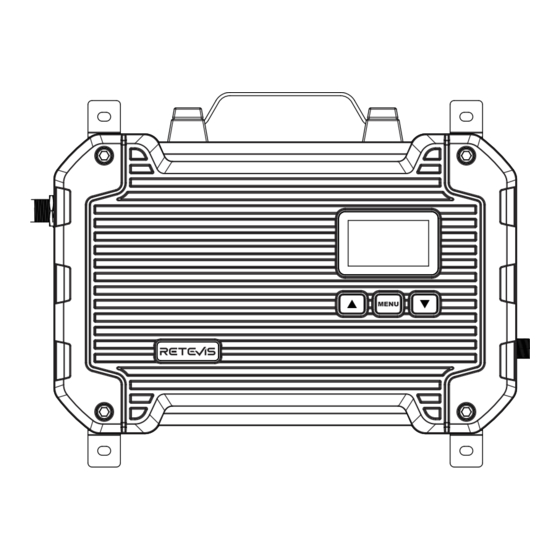

Get Familiar with the Repeater Handgrip Display Volume- / Channel- Menu Volume+ / Channel+ Bracke Data COM Port Power / program frequency... -
Page 6: Key Functions
Key Functions 1.“MENU”Menu Button Short Press：Acts as the menu button on the standby interface; serves as the confirm button within menus. Long press：Locks or unlocks the channel on the standby interface. 2.“▲”Upward Button Short Press: Incrementally cycles through channels on the standby interface. Long Press: Cycles upward through options within menus. -
Page 7: Radio Settings
Radio Settings Seq. Function Options Menu Description Channel Lock Manual / Auto Channel Lock Setting On / Off Channel Scanning Scan Channel Backled On / Auto / Off Display Screen Brightness Setting Low Temperature Mode On / Off Low Temperature Operation Setting Volume Set 0-9 Levels External Speaker Volume Adjustment... - Page 8 6.Modem Set Adjustable from -3 to +3. Adjusting this setting changes the volume of the audio relayed by the repeater, and consequently, the sound received by the radio will also vary accordingly. -3: Minimum Volume Level 0: Medium Volume Level +3: Maximum Volume Level 7.Init Option Resets menu settings to default;...
-
Page 9: Frequency List
14.High/Low Power Select high or low power for each channel through programming software 15.Wide/Narrow Band Select wide or narrow bandwidth for each channel through programming software 16.Increase/Decrease Volume Press the▲button briefly to increase volume press the▼button briefly to decrease volume 17.CTCSS/DCS Set CTCSS/DCS signaling on channels through programming software. -
Page 10: Ctcss/Dcs List
CTCSS/DCS List CTCSS CHART（Hz） Number Frequency Number Frequency Number Frequency Number Frequency Number Frequency 67.0 69.3 71.9 74.4 77.0 79.7 82.5 85.4 88.5 91.5 94.8 97.4 100.0 103.5 107.2 110.9 114.8 118.8 123.0 127.3 131.8 136.5 141.3 146.2 151.4 156.7 159.8 162.2 165.5... - Page 11 D445N D446N D452N D454N D455N D462N D464N D465N D466N D503N D506N D516N D523N D526N D532N D546N D565N D606N D612N D624N D627N D631N D632N D645N D654N D662N D664N D703N D712N D723N D731N D732N D734N D743N D754N Number DCS-I Number DCS-I Number DCS-I Number DCS-I...
-
Page 12: Features
Features • Small and compact, solid and dust-proof. • Simple and convenient installation, flexible operation, can be operated as fixed or mobile. • Multi working power selection, working with the matching power adapter, and also can work under DC15V~24V power or car power. •... -
Page 13: Troubleshooting Guide
1.Check if the antenna is properly seated. 2.Check for potential interference from nearby signals. Noise during transmission 3. V erify if the antenna is compatible with the RT97L frequency band. 4.Try adjusting the squelch level to its mid-range value. -
Page 14: Warnings
EN:User’ instructions should accompany the device when transferred to other users. When transferring the equipment to another user, CN shall include the user instructions. Unauthorized modification and adjustment Changes or modifications not expressly approved by the party responsible for compliance may void the user’s authority granted by the local government radio management departments to operate this radio and should not be made. -
Page 15: Electromagnetic Interference/Compatibility
RF Safety This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. RF energy, which when used improperly, can cause biological damage. Please refer to the following websites for more information on what RF energy exposure is and how to control your exposure to assure compliance with established RF exposure limits: http://www.who.int/en/ Transmit no more than the rated duty factor 50% of the time. - Page 16 not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna.
- Page 17 The plug of the adapter is considered a disconnect device. The socket-outlet shall be installed near the equipment and shall be easily accessible. Authorized Accessories List Antennas：C9082B •Contact Retevis for assistance regarding repairs and service. •For a list of Retevis-approved accessories for your radio model, visit the website: http://www.Retevis.com...
-
Page 18: Guarantee
1.This guarantee card should be kept by the user, no replacement if lost. 2.Most new products carry a two-year manufacturer’s warranty from the date of purchase. Further details, pls read http://www.retevis.com/after-sale/ 3.The user can get warranty and after-sales service as below: ・Contact the seller where you buy. - Page 19 SEPARER ET A et cordons se DEPOSER DANS recyclent LE BAC DE PRI Shenzhen Retevis Technology Co.,Ltd. 7/F, 13-C, Zhonghaixin Science&Technology Park, No.12 Ganli 6th Road, Jihua Street, Longgang District, Shenzhen, China Web:www.retevis.com E-mail:info@retevis.com Made in China Facebook:@retevis.fans...
