- Page 1 B r o a d c a s t A/V D i v i s i o n RCP-PLUS Camera Controller User Manual...
-
Page 2: Table Of Contents

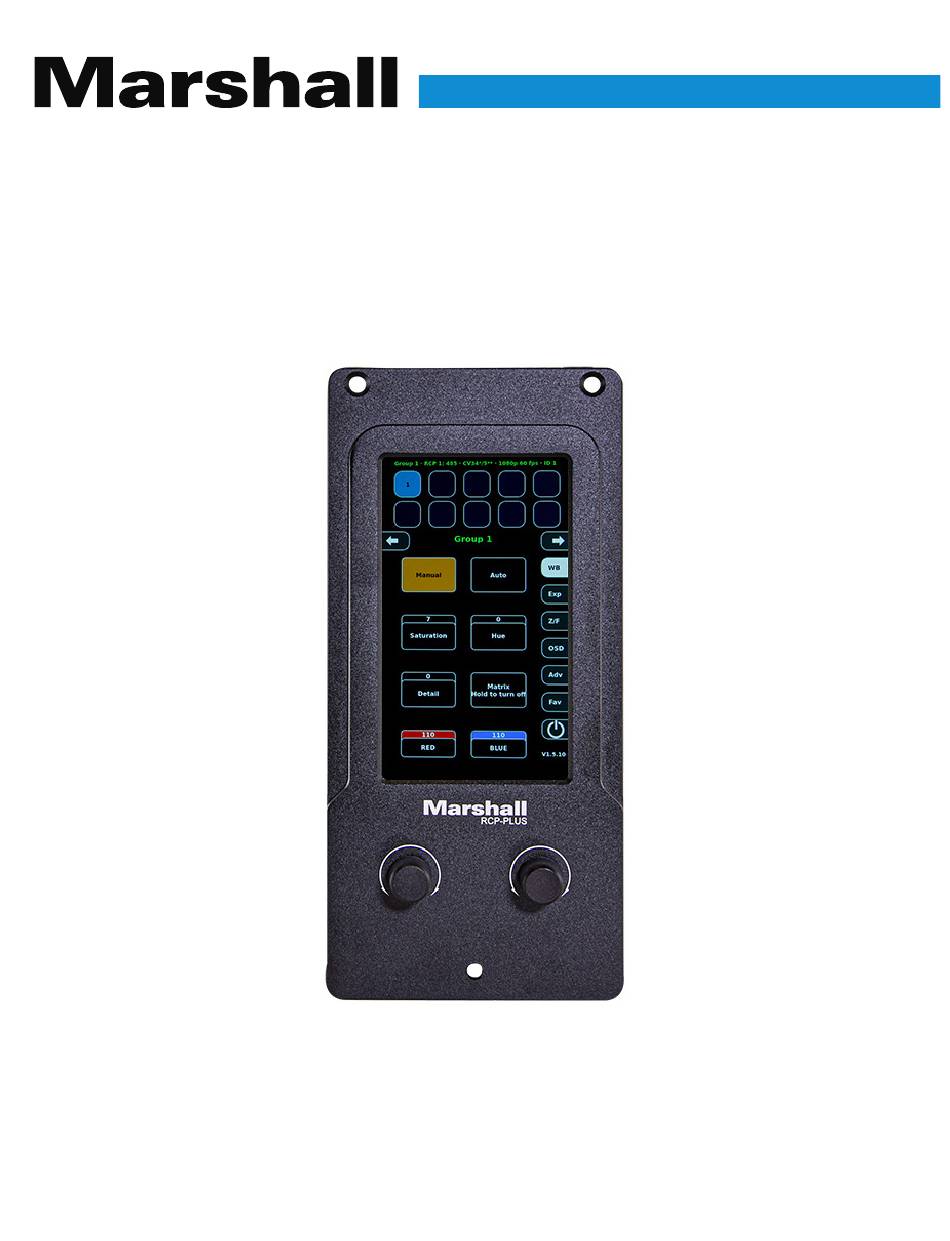

1.1: Overview The Marshall RCP-PLUS is a professional camera controller designed for use in live video productions. DC 12V Power 5.5mm x 2.1mm coaxial locking connector – Center + Its features are optimized for use with Marshall’s popular miniature and compact cameras. A large 5”... -
Page 3: Specifications
RCP-PLUS User Manual 2.2: Specifications 2.3: Dimensions www.marshall-usa.com... -
Page 4: Wiring
Assigning a Camera to a button. in the middle of the screen so that it says DHCP ON, then Tap Net again. The upper left button will be highlighted. If not, press and hold a blank button for 3 seconds and release. Static Address If it is desired to assign a Static IP address to the RCP-PLUS controller, this can be accomplished in either of two ways: Step 1. Press VISCA over RS485. The camera add page appears. -
Page 5: Chapter 6: Web Browser Operation
Chapter 6: Web Browser Operation Logging in Now that the RCP-PLUS is connected to the local IP network (section 4.1 above), cameras can be assigned to control buttons and labeled. To access the RCP-PLUS via a web browser, simply enter the RCP IP address into a browser window (Firefox Press and release an available square button (2 seconds). The camera add page will appear. -
Page 6: Chapter 7: Screen Descriptions
FrameRate: Select the desired video output frame rate Step 6. Click the Save button Confirmation. Check that the RCP-PLUS shows the camera label in the assigned button. Continue these steps until all cameras have been assigned. When finished, click the Logout button in the upper right corner of the page... -
Page 7: Z/F
RCP-PLUS User Manual 7.3 Z/F 7.4 OSD Zoom and Focus On-Screen Display 7.5 Adv Advanced 7.6 Fav Favorites Simple controls are provided here for use Selecting OSD then the On button will with cameras that have internal motorized bring up the camera’s live video output... -
Page 8: Chapter 8: Tips And Best Practices For Rs485 Connections
7.8 Adv Advanced Functions Page Flip – Press to flip or mirror, press again to cancel Infrared – On most cameras this is simply black & white mode RCP-PLUS is designed to work under adverse conditions and to be simple to implement. Save Current Camera – Save current camera setting to a named profile Key features: Step 1. Press Yes Simple, two-wire balanced connections (like balanced audio). Ground wire is not required.
