dadco BG Series Quick Start Manual

Nitrogen Gas Spring
Accessories

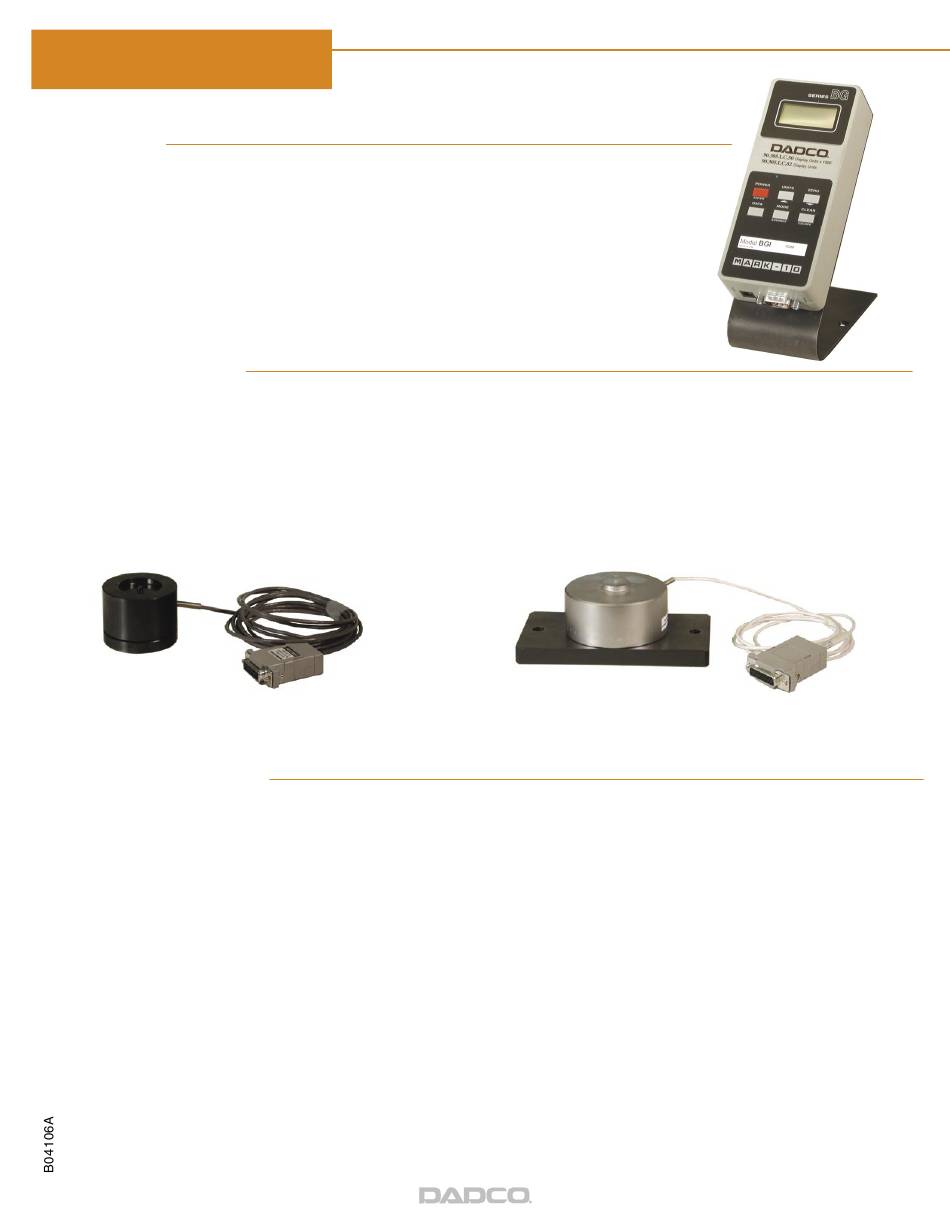

Digital Load Cell Meter
90.305.BG
The Digital Load Cell Meter displays the force value of the load cell
attached to it. DADCO offers two load cells for use with this meter.
This bulletin provides instruction on how to use the load cells and meter.
For more detailed information on the other capabilities of this meter
please consult the user's guide for "Model BGI."
Digital Load Cells
90.305.LC.05 for use with Micro/Ultra Force™/Mini Nitrogen Gas Springs
90.305.LC.50
for use with Compact/Large Nitrogen Gas Springs
When used with DADCO's Portable Test Stand or a standard arbor press, the Digital Load Cell gives pre-
cise measurement of gas spring charging pressure. Available in two sizes, the Digital Load Cell can be used
with DADCO's Micro/Ultra Force™/Mini Series Nitrogen Gas Springs or Compact/Large Series Nitrogen Gas
Springs. The Digital Load Cell displays force in the following units:
90.305.LC.05
Digital Load Cell
General Information
• The Digital Load Cell Meter operates with a rechargeable battery. An AC Adapter is also included.
• Four digit display.
• Size Specific Information:
• 90.305.LC.05 - 5,000 lb. (22.2 kN) capacity - do not exceed
• 90.305.LC.50 - 50,000 lb. (222 kN) capacity - do not exceed
• Do not exceed the capacity of the Digital Load Cell.
• Portable Test Stand capacity = 17,000 lb. (75 kN) - do not exceed.
• Do not drop or impact the Digital Load Cell.
• Consult the manual for more detailed explanations on the features of the Digital Load Cell Meter.
• Return the Digital Load Cell to DADCO for calibration or verification.
Digital Load Cell
Units read: 1:1
Units read: 1:10 (ex. display = 10.00 lb. / actual = 100 lb.)
734.207.1100 • 800.DADCO.USA • fax 734.207.2222 • www.dadco.net
Newtons, kg, or lb.
90.305.LC.50
Digital Load Cell
®
