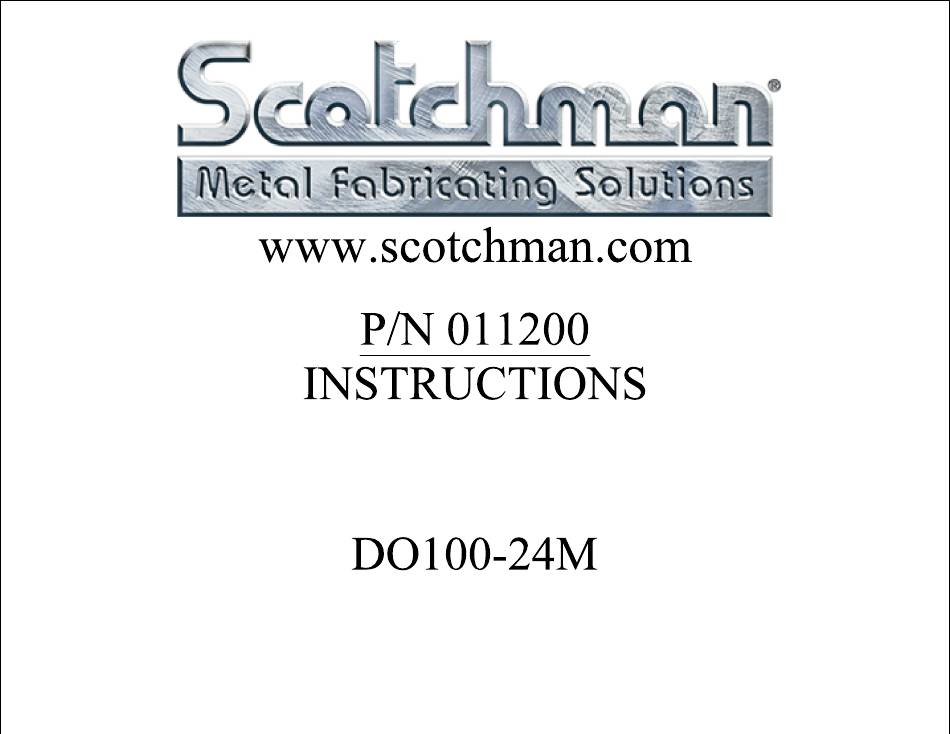

- Page 1 COLOR PRINTING IS RECOMMENDED FEBRUARY 2023 SCOTCHMAN INDS. - 180 E US HWY 14 - PO BOX 850 - PHILIP, SD 57567 Call: 1-800-843-8844...
- Page 2 The following instructions describe how to replace a Klockner Moeller cam switch (left) with a Kraus & Neimer cam switch (right) on the machine(s) listed below. DISCONNECT POWER TO THE MACHINE BEFORE MODIFICATION. Klockner Moeller Kraus & Neimer Applies to Serial Numbers: DO100-24M: 1140M0401 &...
- Page 3 The key difference between the Klockner Moeller switches (013580/013585) and the Kraus & Neimer switches (011200) are the contact numbers and internal jumpers. The charts below show the difference in contact closures and jumpers. KLOCKNER MOELLER KRAUS & NEIMER CONTACT CLOSURE...
- Page 4 Remove power to machine. Turn the main power disconnect in the lower panel to the OFF position. Open the remote control panel lid by loosening the (2) retaining screws (A). Carefully open the panel lid to gain access to the internal controls Loosen the screw (B) retaining the knob of the cam switch to be replaced.
- Page 5 INCOMING SUPPLY (BY COSTUMER) PROVIDE MAXIMUM UPSTREAM PROTECTION PER NEC CODE 430-52 AND TABLE 430-152 E-STOP 1MTR 2MTR 120 VAC CONTROL SEE MOTOR SEE MOTOR NAMEPLATE FOR TO PAGE NO. 2 NAMEPLATE FOR HP AND AMPS. HP AND AMPS. Page 4...
- Page 6 120 VAC CONTROL 120 VAC CONTROL FROM PAGE NO. 1 FROM PAGE NO. 1 1FAN E-STOP E-STOP START START START START PUNCH TOOL SHEAR NOTCH OFF - ON OFF - ON RUN JOG LS/TOOL LS/NOTCH LS/SHEAR LS/PUNCH JOYSTICK Page 5...
- Page 7 Press the red release handle (A) on the new switch to separate the knob/legend holder from the switch. Install the legend holder (B) into the panel and fasten with nut (C) from backside. Remove the screw (D) retaining the knob. Remove knob (E). Install the legend plate(s) (F) sold separately (P/N 011212 &...
- Page 8 120 VAC CONTROL 120 VAC CONTROL FROM PAGE NO. 1 FROM PAGE NO. 1 1FAN E-STOP E-STOP START START START START PUNCH TOOL SHEAR NOTCH OFF - ON OFF - ON RUN JOG LS/TOOL LS/NOTCH LS/SHEAR LS/PUNCH JOYSTICK Page 7...
- Page 9 120 VAC CONTROL 120 VAC CONTROL FROM PAGE NO. 1 FROM PAGE NO. 1 1FAN E-STOP E-STOP START START START START PUNCH TOOL SHEAR NOTCH OFF - ON OFF - ON RUN JOG LS/TOOL LS/NOTCH LS/SHEAR LS/PUNCH JOYSTICK Page 8...
- Page 10 120 VAC CONTROL 120 VAC CONTROL FROM PAGE NO. 1 FROM PAGE NO. 1 1FAN E-STOP E-STOP START START START START PUNCH TOOL SHEAR NOTCH OFF - ON OFF - ON RUN JOG LS/TOOL LS/NOTCH LS/SHEAR LS/PUNCH JOYSTICK Page 9...
- Page 11 If the machine features an electric backgauge (probe), the remote control panel will contain multiple other selector switches as shown below left. Follow the instructions on Page 3 for removal of the old switch to be replaced. See the schematic on the following page for original wire locations. If replacing the PUNCH/START/TOOL switch (A) or the SHEAR/START/NOTCH switch (B), follow the instructions on Page 5 for replacement and follow the schematic on Pages 12-13 specific to the switch being replaced for wiring locations.
- Page 12 Original Diagram w/ Probe 120 VAC CONTROL 120 VAC CONTROL FROM PAGE NO. 1 FROM PAGE NO. 1 1FAN E-STOP E-STOP START START START START PUNCH TOOL SHEAR NOTCH OFF - ON OFF-ON PROBE RUN PROBE LS/TOOL LS/NOTCH LS/SHEAR LS/PUNCH SHEAR/NOTCH PROBE JOYSTICK...
- Page 13 Punch/Start/Tool Retrofit Diagram w/ Probe 120 VAC CONTROL 120 VAC CONTROL FROM PAGE NO. 1 FROM PAGE NO. 1 1FAN E-STOP E-STOP START START START START PUNCH TOOL SHEAR NOTCH OFF - ON OFF-ON PROBE RUN PROBE LS/TOOL LS/NOTCH LS/SHEAR LS/PUNCH SHEAR/NOTCH PROBE...
- Page 14 Shear/Start/Notch Retrofit Diagram w/ Probe 120 VAC CONTROL 120 VAC CONTROL FROM PAGE NO. 1 FROM PAGE NO. 1 1FAN E-STOP E-STOP START START START START PUNCH TOOL SHEAR NOTCH OFF - ON OFF-ON PROBE RUN PROBE LS/TOOL LS/NOTCH LS/SHEAR LS/PUNCH SHEAR/NOTCH PROBE...
- Page 15 Jog/Run/Probe Retrofit Diagram 120 VAC CONTROL 120 VAC CONTROL FROM PAGE NO. 1 FROM PAGE NO. 1 1FAN E-STOP E-STOP START START START START PUNCH TOOL SHEAR NOTCH OFF - ON OFF-ON PROBE RUN PROBE LS/TOOL LS/NOTCH LS/SHEAR LS/PUNCH SHEAR/NOTCH PROBE JOYSTICK PUNCH/TOOL...
