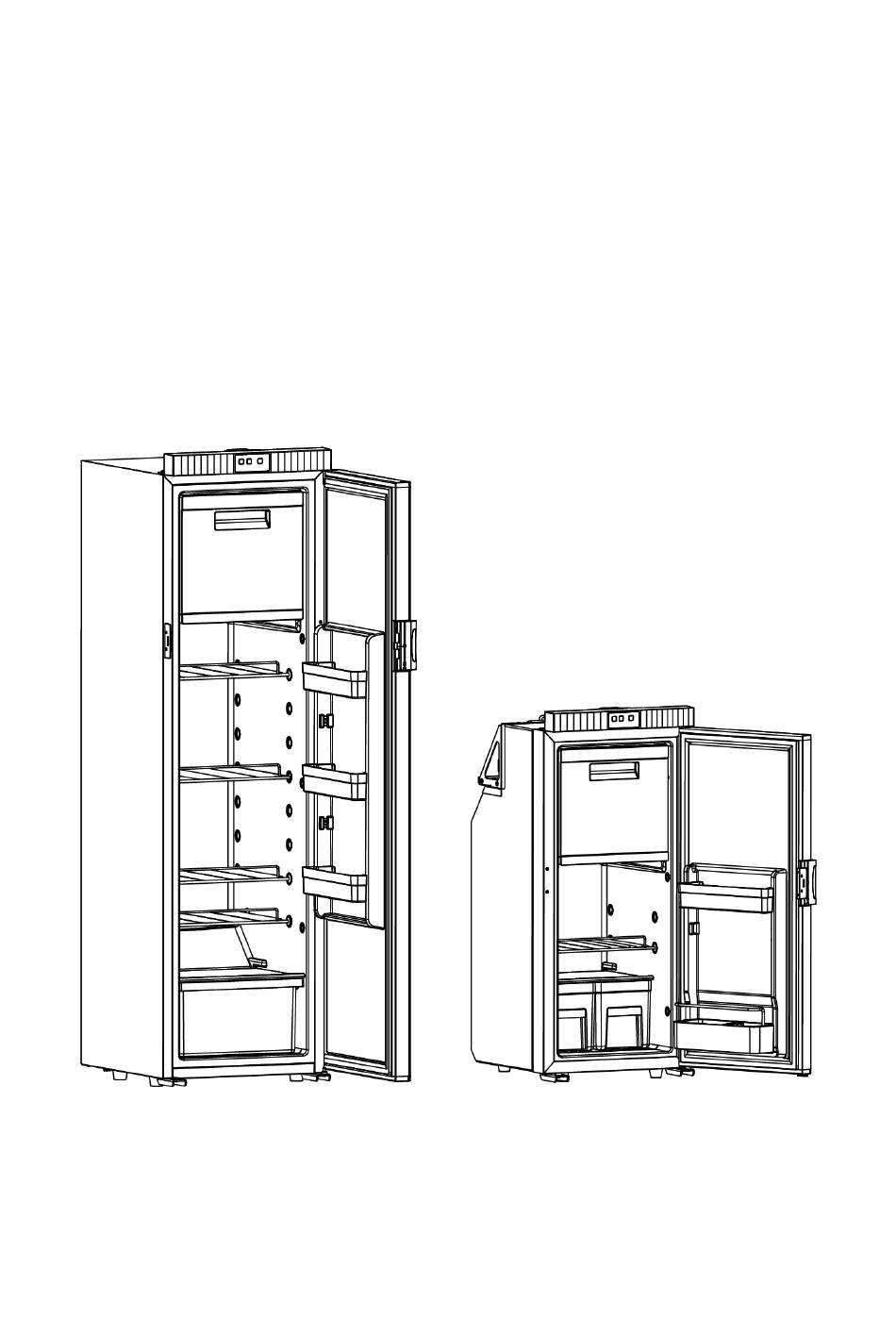

RCN Series Compressor Refrigerator
Installation and Operating Manual
More information https://www.caravansplus.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCN Series and is the answer not in the manual?

Questions and answers

Related Manuals for FREUCAMP RCN Series

Summary of Contents for FREUCAMP RCN Series

  • Page 1 RCN Series Compressor Refrigerator Installation and Operating Manual More information https://www.caravansplus.com.au...
  • Page 2 More information https://www.caravansplus.com.au...
  • Page 3 More information https://www.caravansplus.com.au...
  • Page 4 More information https://www.caravansplus.com.au...
  • Page 5 More information https://www.caravansplus.com.au...
  • Page 6 More information https://www.caravansplus.com.au...
  • Page 7 More information https://www.caravansplus.com.au...
  • Page 8 More information https://www.caravansplus.com.au...
  • Page 9 More information https://www.caravansplus.com.au...
  • Page 10 More information https://www.caravansplus.com.au...

  • Page 11: Table Of Contents

    Respected Users： Thank you for choosing this refrigerator! Please read this instruction manual carefully before installation and first use, and store it in a safe place. If you pass on the product to another person, hand over this instruction manual along with it. Table of contents 1.
  • Page 12 8. Using the refrigerator................... 22 8.1 Energy saving tips ................23 8.2 Switching on the refrigerator ............... 24 8.3 Setting the temperature ...............24 8.4 Conserving foodstuffs ................. 25 8.5 Defrosting the freezer ................26 8.6 Switching off and storing the refrigerator ..........26 9.

  • Page 13: Explanation Of Symbols

    1. Explanation of symbols DANGER! Safety instruction: Failure to observe this instruction will cause death or serious injury. WARNING! Safety instruction: Failure to observe this instruction can cause death or serious injury. CAUTION! Safety instruction: Failure to observe this instruction can lead to injury.

  • Page 14: General Safety

    Alterations to the product without express permission from the  manufacturer. Use for purposes other than those described in the operating manual.  2.1 General safety DANGER! Failure to obey these warnings will result in death or serious injury. DANGER OF ELECTROCUTION If the device is powered by the mains, ensure that the ...
  • Page 15 mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

  • Page 16: Operating The Device Safely

    Disconnect the refrigerator or switch it off when you turn off the engine. Otherwise you may discharge the battery. The refrigerator is not suitable for storing substances  which are caustic or contain solvents. Keep the drainage outlet clean at all times. ...
  • Page 17 CAUTION! Failure to obey these cautions could result in minor or moderate injury. DANGER OF ELECTROCUTION Before starting the cooling device, ensure that the power  supply line and the plug are dry. HEALTH HAZARD If you connect the device to a battery, make sure that no ...

  • Page 18: Scope Of Delivery

    3. Scope of delivery Quantity Description Refrigerator with shelves Installation and operating manual 4. Accessories Available as accessories (not included in the scope of delivery): Description Explanation Ref. no. It is suitable for RCN90L, RCN150L, and can convert the input voltage AC/DC Adapter from AC100-240V to DC12/24V, so as to connect the refrigerator to AC...

  • Page 19: Technical Description

    6. Technical description This product can cool the product and keep it cool. And the product can be deeply frozen in the freezing chamber. All the materials used in the refrigerator reach food grade. The refrigerant circuit is maintenance-free. The refrigerator can also work normally when the maximum inclination angle of the ship is 30°.

  • Page 20: Control Panels

    6.2 Control Panels No. In fig. 2，page2 Explanation On/Off button Sleep mode Temperature selection button LED：Temperature levels LED Service display 7. Installing and connecting the refrigerator 7.1 Safety instructions for installation Please note the following instructions for installation DANGER! DANGER OF ELECTROCUTION If the appliance is powered by the mains, ensure that the ...

  • Page 21: Notes On Installing The Refrigerator

    7.2 Notes on installing the refrigerator Observe the following when installing the refrigerator: Install the refrigerator so that the warm air produced can easily flow away (either upwards, fig.4, Page 3). Explanation Cold intake air Hot waste air Condenser Product size： Dimensions Dimensions Model...

  • Page 22: Installing The Refrigerator

    7.3 Installing the refrigerator Proceed as follows to install the refrigerator: Open the refrigerator door.  Push the refrigerator into the recess.  Fix the refrigerator in place using suitable screws (fig.3, Page 2).  7.4 Positioning the shelves WARNING! Children beware! All shelves are fixed in place to prevent children from climbing inside the refrigerator.

  • Page 23: Connecting The Refrigerator To Dc Voltage

    7.6 Connecting the refrigerator to DC voltage NOTICE! DANGER OF DAMAGE To avoid voltage drops and loss of performance, keep the  connection cable as short as possible and not be interrupted.Therefore avoid additional switches, plugs, power strips or Power bar. Disconnect the cooling device and other electric ...

  • Page 24: Connecting The Refrigerator To Ac Voltage

    NOTICE! DANGER OF DAMAGE Make sure the polarity is correct. Before starting up the device for the first time, check whether the  operating voltage and the battery voltage match (see type plate). Connect your refrigerator to a plug socket which is fuse protected at ...

  • Page 25: Energy Saving Tips

    NOTICE! DANGER OF DAMAGE Do not place any electrical devices inside the cooler. The only  exceptions are devices approved for the purpose by the manufacturer. Ensure that food or liquids in glass containers are not  excessively refrigerated. Liquids expand when they freeze and can therefore destroy glass containers.

  • Page 26: Switching On The Refrigerator

    Do not leave the door open for longer than necessary.  Defrost your refrigerator as soon as a layer of ice forms.  Avoid unnecessarily low temperature settings.  Clean dust and dirt from the condenser at regular intervals.  8.2 Switching on the refrigerator Switch the refrigerator on by pressing the button.

  • Page 27: Conserving Foodstuffs

    8.4 Conserving foodstuffs NOTICE! DANGER OF DAMAGE Do not conserve warm foodstuffs in the refrigerator.  Do not place glass containers containing liquid in the  freezer compartment. NOTE！ Food which can easily absorb tastes and odours, as well as liquids and products with a high alcohol content, should be conserved in airtight containers.

  • Page 28: Defrosting The Freezer

    8.5 Defrosting the freezer NOTICE! DANGER OF DAMAGE Never use mechanical tools to remove ice or to loosen objects stuck to the device. The only exceptions are devices approved for the purpose by the manufacturer. This is how to defrost the refrigerator: Empty the contents.

  • Page 29: Disposal

    Always disconnect the device from the power supply before you clean  and service it. Clean the refrigerator regularly and as soon as it becomes dirty with a  damp cloth. Make sure that no water drips into the seals. This can damage the ...
  • Page 30 RCN90L, RCN150L Number of Fault Possible cause flashes The supply voltage is outside of the Low Voltage set range. Excessive fan The fan load on the electronics unit current is more than 1 A. The rotor is jammed. The motor The pressure difference in the doesn't start cooling system is too high (>...
  • Page 31 Compressor does not run (battery connection) Problem Possible cause Remedy There is an interruption in Establish a the battery electronics connection connection Main switch faulty (if Replace the main = 0 V installed) switch Additional supply line fuse Replace the supply has blown (if installed) line fuse Battery voltage is too...
  • Page 32 Compressor is not running (connected to AC supply) Problem Possible cause Remedy Connection supply line Establish a interrupted connection Main switch faulty (if Replace the main No voltage installed) switch Additional supply line fuse Replace the supply has blown line fuse (if installed) Ambient temperature too –...
  • Page 33 Poor cooling, increase in interior temperature Problem Possible cause Remedy Ambient temperature too – high Move the refrigerator Compressor runs Check the ventilation to another location for a long time/ continuously Condenser is dirty Clean the condenser Faulty fan Replace the fan Compressor Battery capacity does not run...

  • Page 34: Technical Data

    12. Technical data RCN90L RCN150L AC/DC Model RCN90LACDC RCN150LACDC DC Model RCN90L RCN150L Refrigerator compartment 122L storage volume (2.12cu.ft) (4.31cu.ft) Freezer compartment storage volume (0.53cu.ft) (0.92cu.ft) 148L Total storage volume (2.65cu.ft) (5.23cu.ft) Voltage DC12/24V Rated current 6.93A 9.2A 4.06A 5.0A Cooling temperature range Refrigerator 0°C(32℉)~+10°C(50℉)
  • Page 35 More information https://www.caravansplus.com.au...
  • Page 36 JoniqGmbH Address：HeerdterLandstraße189F,Düsseldorf, eutschland P. C：40549 Q. TEL：4008398111 More information https://www.caravansplus.com.au...

This manual is also suitable for:

Rcn90lRcn150l
