Vimpex IDENTIFIRE 10-1010 Installation Instructions

INSTALLATION INSTRUCTIONS
Tritone Sounder (Part No. 10-1010 (All variants))
General
The Tritone Sounder is a high output low current internal (Type A-IP21C)
fire alarm sounder, that provides the user with three user selectable
tones (J1) and a volume selection (J2).
Specification
Maximum Conductor Size
Tone 1 - J1 (Position 1) Slow Sweep
Tone 800Hz to 970Hz swept at 1Hz)
Tone 2 - J1 (Position 2) Medium Sweep
Tone 800Hz to 970Hz swept at 3Hz)
Tone 3 - J1 (Not Fitted) Fast Sweep
Tone 800Hz to 970Hz swept at 9Hz)
Operating current (typical)
Operating voltage (typical)
Approval
Operating Temperature
Operating humidity
Material
Knockouts
Installation
If installing a surface backbox, fit the back box with the twin 20mm
knockouts in the vertical plane either at the top or bottom as appropriate
to the installation. Remove the required knockouts and fit the box to the
building substrate (Note: Mounting screws not supplied). Once installed
use appropriate glands if required by the local installation code of prac-
tice prior to installing the cables.

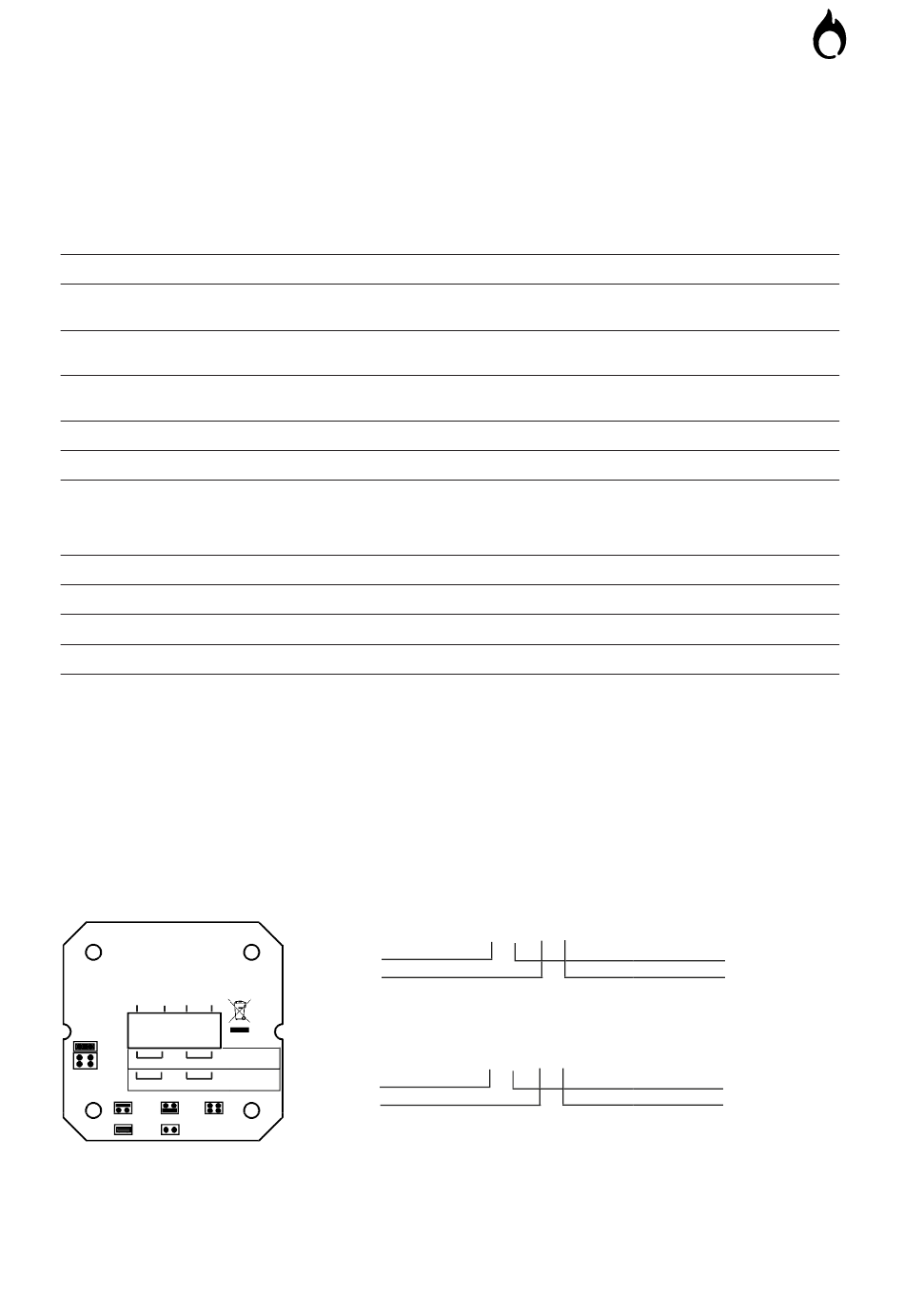

Wiring
Made e in UK
Iss. 5.2 I
Type A Pr oduc t t
TB11 TB12 TB13 TB14
K
Su upply V
J2 20 20 0V 0V to 28Vdc
Co onventional
JI
W Wiring
+VE -VE
Tw wo-Wire
-VE +VE
Wiring W
J1 T To o ne Select
Medium Fa st
Slow
sweep p sweep p
sw sweep weep
J2 V V olume Select
High Low
Output Output
Once the cables have been wired to the front-plate then the front-plate
should be screwed to the surface backbox or recessed backbox
depending upon the installation using the supplied screws (fitted to
frontplate)
Conventional Wiring
+VE
-VE
Sounder IN
(Previous Device or Panel)
A
Two-Wire Wiring
pp y oltage g
28 8V d
-VE
+VE
Sounder IN
(Previous Device or Panel)
2
2.5 mm per terminal
92-96 dB(A)
J2 Fitted
92-96 dB(A)
J2 Fitted
92-96 dB(A)
J2 Fitted
6 mA (J2 Fitted) / 3.5mA (J2 Not Fitted)
24 V dc (20 - 28 V dc)
EN 54-3 :2001+A1:2002+A2:2006
CE DoP:2821-CPR-0227
UKCA DoP:0843-CPR-1142
o o
-5 to +50 Celsius
95% non-condensing
Fire rated ABS
4 off 20 mm round, 1 off rectangular
TB11 TB12 TB13 TB14
TB11 TB12 TB13 TB14
IDENTIFIRE
, 86-90 dB(A)
J2 Not Fitted
, 86-90 dB(A)
J2 Not Fitted
, 86-90 dB(A)
J2 Not Fitted
+VE
-VE
Sounder OUT
(Next Device or EOL)
-VE
+VE
Sounder OUT
(Next Device or EOL)
