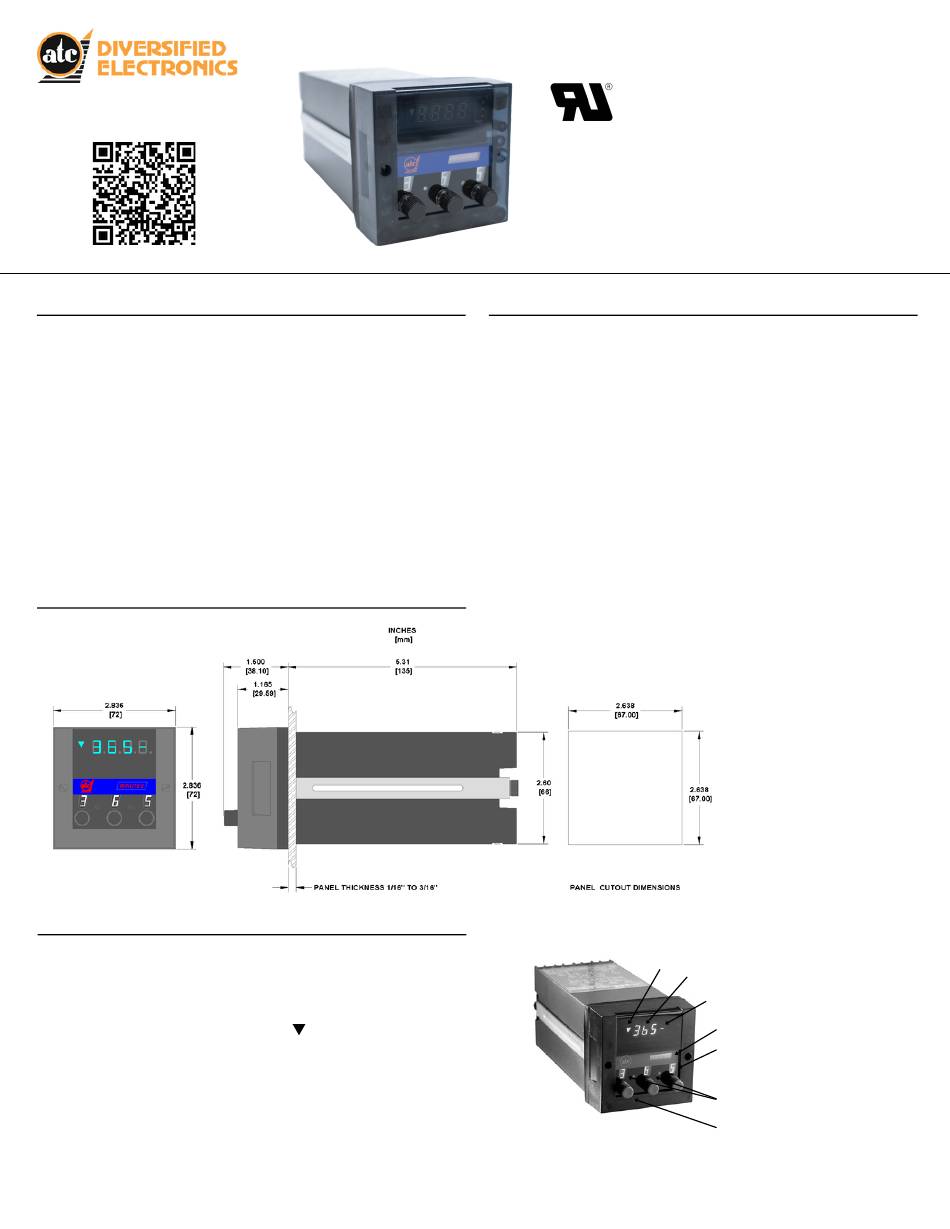

365C Series
https://rebrand.ly/365C_Series
Description
The 365C Timer is a microprocessor based digital timer with three rotary switches for
setting and adjustment of the Preset. The Preset can be any three-digit value from
.01 Sec to 999 Hrs. The Decimal and Range are switch selectable. The high-intensity
blue vacuum fluorescent display is DIP switch selectable to Timeup or Timedown.
Two heavy duty 7A DPDT relays provide instantaneous, interval or delayed output
control. Plug-in panel mounting allows easy replacement without the removal of field
wiring.
Dimensions
The Display
A high intensity blue vacuum fluorescent display consists of three digits and a
decimal point. There is a horizontal timing bar "-" which appears to the right of the
display and blinks once per second during timing. This is useful in showing that the
timer is timing especially when the digits do not change rapidly as in the hours
ranges. There is also a triangular timed out symbol
relay is energized at time-out. The timing bar blinks rapidly at time-out as well.
which lights when the delayed
365C Series
Long Ranger Timer
Mounting
1.
Cut out a 2 5/8" square mounting hole.
2.
Mount timer to housing before mounting in the panel. Make sure the rubber
gasket is flush with timer bezel before tightening the screws.
3.
Slide housing with timer (as pictured above) through cut out until the gasket is
against panel. Be sure there are no ripples in gasket and it is flat and flush to
panel.
4.
Holding the timer in place install the aluminum mounting bracket around the
timer housing and slide it forward until the ends contact the rear of the panel.
5.
Install the black insulator over rear of bracket using the two screws provided
and hand tighten the two screws until the Timer housing is fastened securely to
the panel.
6.
The two (2) front screws securing the timer in the housing should be torqued to
4 inch pounds.
TIME-OUT SYMBOL
ATC & DIVERSIFIED ELECTRONICS
8019 Ohio River Blvd.
Newell, WV 26050
Tel: 304-387-1200
www.atcdiversified.com
365-095-06-00
REV. A February 2025
THREE DIGIT DISPLAY
TIMING BAR
TIME UNITS WINDOW
THREE DIGIT PRESET
DECIMAL POINT WINDOWS
DIGIT SET KNOBS
(REMOVABLE)
