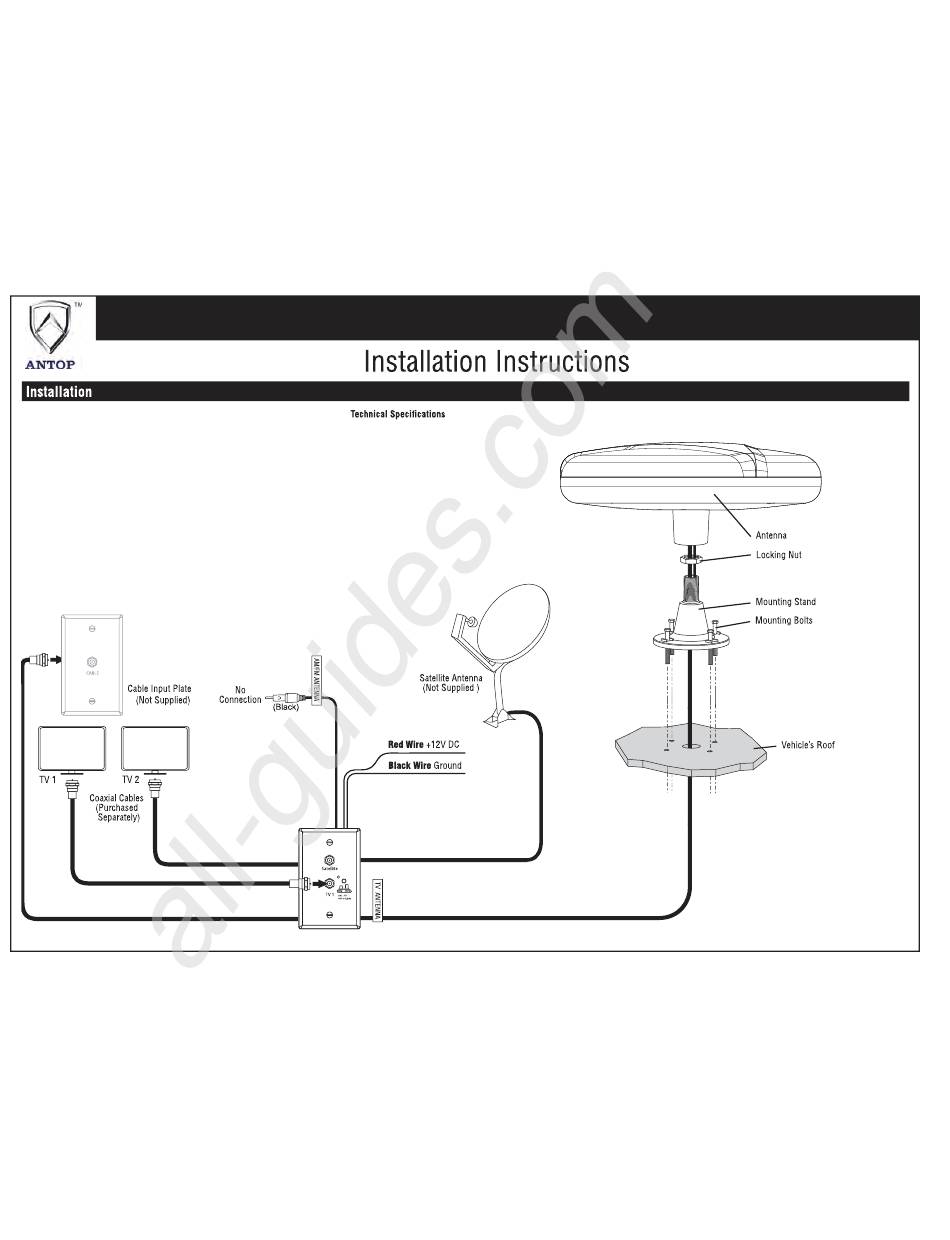

Lava OmniPro Series Installation Instructions

Step 1: Decide location of power supply before mounting your antenna. Antenna
and power supply location will determine where and how you run the cables. DO
NOT install the antenna before you read this instruction.
Step 2: Drill a hole thru the roof to run cable from the antenna into your vehicle. Or
if your vehicle have a cable hole already, run the cable thru hole to the antenna.
Step 3: Using 4 self-tapping screw to securely fasten antenna mount to the roof. Do
not over tighten the mounting bolts, damage to the mounting stand or roof may
occur.
Step 4: Use cable tool to drive the cable into the mounting bracket on the
underside of the antenna, aligning the end of the connector with the F connector
on the antenna. Turn cable tool until the connector is tight and remove the cable
tool.
Step 5: After cable connector is made, slide antenna onto the mount. Gently pull
back any extra cable inside vehicle.
Step 6: Fasten antenna to mount using self-tapping screw and hex nuts. Tighten
firmly to prevent antenna from turning on mount or mast.
Step 7: Connect power supply MP-002 kits (not included in this package)
LAVA Electronics Inc. E-mail:support@lavasat.com
Tech Support: 909-235-6611 www.lavasat.com
All manuals and user guides at all-guides.com
AM :520-1719KHz FM:47-230MHz
UHF: 470-862MHz
Gain: 30dB
Power Supply: DC 12V==50mA
RVHD-2015
OMNIPRO series
