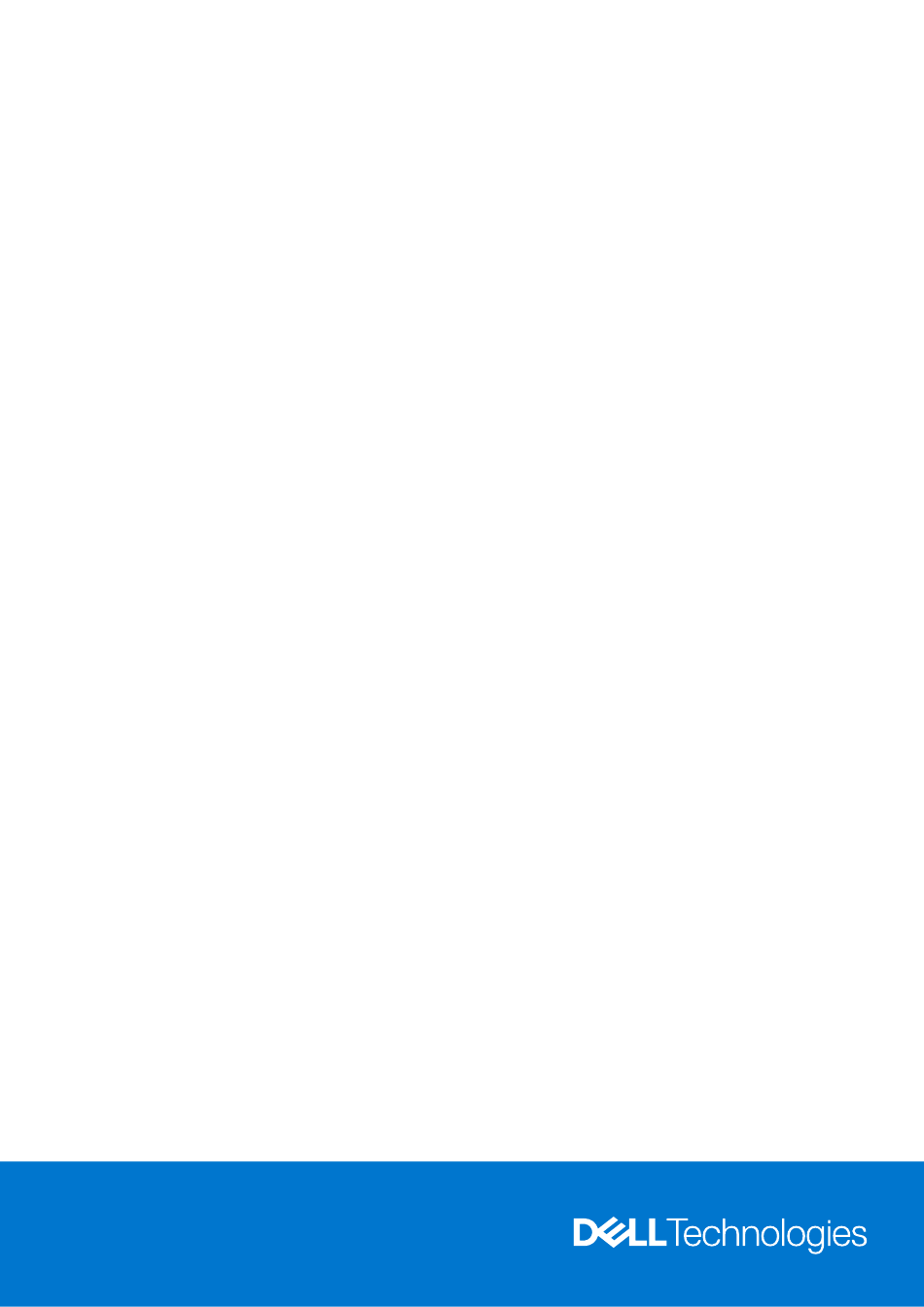

- Page 1 Latitude 3440 Technical Guidebook Regulatory Model: P169G Regulatory Type: P169G001 November 2023 Rev. A02...
- Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2023 Dell Inc. or its subsidiaries. All rights reserved. Dell Technologies, Dell, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
-
Page 3: Table Of Contents
Contents Chapter 1: Views of Latitude 3440....................5 Right....................................... 5 Left......................................5 Top......................................6 Display.....................................7 Bottom....................................8 Service Tag................................... 8 Battery charge and status light ............................9 Chapter 2: Specifications of Latitude 3440.................. 10 Dimensions and weight..............................10 Processor..................................... 10 Chipset....................................11 Operating system................................11... - Page 4 Fingerprint reader................................33 Thermal specifications ..............................34 System management features............................34 Dell Client Command Suite for In-Band systems management ..............34 Out of Band Systems Management........................35 Chapter 4: Color, material, and finish ..................36 Chapter 5: Keyboard shortcuts of Latitude 3440................. 38 Chapter 6: Getting help and contacting Dell................
-
Page 5: Chapter 1: Views Of Latitude 3440
Views of Latitude 3440 Right 1. microSIM card slot (optional) 2. USB 3.2 Gen 1 port 3. RJ-45 Ethernet port 4. Ethernet status LED 5. Wedge-shaped lock slot Left 1. DC-in port 2. Battery-status light/Diagnostic-status light 3. HDMI 1.4 port 4. -
Page 6: Top
1. Power button with optional fingerprint reader 2. Keyboard 3. Touchpad Views of Latitude 3440... -
Page 7: Display
Display 1. Digital-array microphone 2. IR camera and emitter (optional) 3. Camera shutter 4. RGB camera (HD/FHD) 5. Camera status LED 6. Digital-array microphone 7. LCD panel Views of Latitude 3440... -
Page 8: Bottom
2. Air vents 3. Service Tag and regulatory labels Service Tag The service tag is a unique alphanumeric identifier that allows Dell service technicians to identify the hardware components in your computer and access warranty information. Views of Latitude 3440... -
Page 9: Battery Charge And Status Light
Battery charge and status light The following table lists the battery charge and status light behavior of your Latitude 3440. Table 1. Battery charge and status light behavior Power Source LED Behavior System Power State Battery Charge Level AC Adapter... -
Page 10: Chapter 2: Specifications Of Latitude 3440
The weight of your computer lbs) depends on the configuration ordered and manufacturing variability. Processor The following table lists the details of the processors that are supported by your Latitude 3440. Table 3. Processor Descriptio Option one Option Option Option... -
Page 11: Chipset
Graphics Graphics Graphics Graphics Graphics Graphics Graphics Chipset The following table lists the details of the chipset supported by your Latitude 3440 Table 4. Chipset Description Option one Option two Processors Generation Intel Celeron processor Generation Intel Core i3/i5/i7 7305 and 12... -
Page 12: External Ports
To learn more about the features of different types of M.2 cards, search in the Knowledge Base Resource at www.dell.com/support. Ethernet The following table lists the wired Ethernet Local Area Network (LAN) specifications of your Latitude 3440. Table 8. Ethernet specifications Description Values... -
Page 13: Wireless Module
Table 8. Ethernet specifications (continued) Description Values Transfer rate 10/100/1000 Mbps Wireless module The following table lists the Wireless Local Area Network (WLAN) modules that are supported on your Latitude 3440. Table 9. Wireless module specifications Description Option one Option two Model number... -
Page 14: Audio
For instructions on how to find your computer's IMEI (International Mobile Station Equipment Identity) number, search in the Knowledge Base Resource at www.dell.com/support. Audio The following table lists the audio specifications of your Latitude 3440. Table 11. Audio specifications Description... -
Page 15: Storage
Up to 1 TB M.2 2280 Class 40 SSD PCIe NVMe Gen4 x4 Up to 1 TB Keyboard The following table lists the keyboard specifications of your Latitude 3440. Table 13. Keyboard specifications Description Values Keyboard type ● Standard backlit keyboard without fingerprint reader ●... -
Page 16: Camera
Camera The following table lists the camera specifications of your Latitude 3440. Table 14. Camera specifications Description Values Number of cameras Camera type ● HD RGB ● FHD RGB ● FHD RGB + IR Camera location Front camera Camera sensor type... -
Page 17: Power Adapter
Power adapter The following table lists the power adapter specifications of your Latitude 3440. Table 16. Power adapter specifications Description Option one Option two Option three Type 60 W AC adapter, USB-C 65 W AC adapter, 4.5 mm 65 W adapter USB-C... -
Page 18: Battery
CAUTION: Dell recommends that you charge the battery regularly for optimal power consumption. If your battery charge is completely depleted, connect the power adapter, turn on your computer, and then restart your computer to reduce the power consumption. -
Page 19: Display
Display The following table lists the display specifications of your Latitude 3440. Table 18. Display specifications Description Option one Option two Option three Display type 14-inch, High Definition (HD) 14-inch, Full High Definition 14-inch, Full High Definition (FHD) (FHD) Touch options... -
Page 20: Fingerprint Reader
The following table lists the sensor of your Latitude 3440. Table 20. Sensor Sensor support Adaptive Thermal Performance-Applicable only for discrete graphics GPU—Integrated The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Latitude 3440. Table 21. GPU—Integrated Controller Memory size Processor... -
Page 21: Multiple Display Support Matrix
Multiple display support matrix The following table lists the multiple display support matrix for your Latitude 3440. Table 23. Multiple display support matrix Graphics Card Direct Graphics Controller Supported external displays Supported external Direct Output Mode with computer internal display... - Page 22 Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. * Measured using a random vibration spectrum that simulates user environment. † Measured using a 2 ms half-sine pulse. Specifications of Latitude 3440...
-
Page 23: Chapter 3: Engineering Specifications
Engineering specifications Ethernet Wireless module Realtek RTL8852BE, 2x2 MIMO, Wi-Fi 6 (WiFi 802.11ax), Bluetooth The following table lists the Realtek RTL8852BE, specifications. Table 26. Realtek RTL8852BE specifications Host interface ● Wi-Fi - PCIe ● Bluetooth - USB Network standard IEEE 802.11a/b/g/n/ac/ax, MIMO Wi-Fi Alliance certifications ●... -
Page 24: Intel Ax211, 2X2 Mimo, 2400 Mbps, 2.4/5/6 Ghz, Wi-Fi 6E (Wifi 802.11Ax), Bluetooth 5.3
Table 26. Realtek RTL8852BE specifications (continued) Bluetooth data rates Up to 3 Mbps Bluetooth operating frequency bands 2.4 GHz Bluetooth profiles supported Support for Microsoft Inbox Bluetooth profiles in Windows Bluetooth data encryption 128-bit encryption Operating temperature -10°C to + 70°C Storage temperature -40°C to +85°C Intel AX211, 2x2 MIMO, 2400 Mbps, 2.4/5/6 GHz, Wi-Fi 6E (WiFi... -
Page 25: Wwan Module
Table 27. Intel AX211 specifications (continued) ● FISMA Client utility Intel PRO/Set wireless software v22 and later Antenna diversity Supported Radio On/Off Supported Roaming Support seamless roaming between access points Wake on wireless Supported Wireless display Native Miracast support by Windows Wireless PAN standard ●... -
Page 26: Gpu-Integrated
Table 28. Intel XMM 7560R+ Global LTE-Advanced specifications (continued) ● LTE TDD (B34, B38, B39, B40, B41, B42, B43, B46 (receiver only), B48) ● WCDMA (B1, B2, B4, B5, B8) Power supply DC 3.135 V to 4.4 V, Typical 3.3 V SIM card Supported through external SIM slot eSIM with Dual SIM (DSSA) -
Page 27: Gpu-Discrete
Table 30. Intel Iris X Graphics specifications (continued) Memory type Unified Memory Architecture (UMA) NOTE: Requires 128-bit dual-channel memory Memory interface Not applicable Processor graphics i5/i7 Estimated maximum power consumption (TDP) 15 W, included in the CPU power Maximum vertical refresh rate ●... -
Page 28: Video Port And Resolution Matrix
Video port and resolution matrix The following table lists the Video port and resolution matrix of your Latitude 3440. Table 32. Video port and resolution matrix Port type DP++ 1.4/HDCP 2.3 port (UMA and Discrete HDMI-OUT port— HDMI-OUT port— Graphics) HDMI 1.4b (UMA... -
Page 29: M.2 2230, 512 Gb, Pcie Nvme Gen4 X4, Class 35 Ssd
M.2 2230, 512 GB, PCIe NVMe Gen4 x4, Class 35 SSD The following table lists the M.2 2230, 512 GB SSD specifications. Table 34. 512 GB SSD specifications Capacity 512 GB Height (approximate) 3.5 mm (0.17 in.) Width (approximate) 22.00 mm (0.87 in.) Depth (approximate) 30.00 mm (1.18 in.) Interface type... -
Page 30: M.2 2280, 512 Gb, Pcie Nvme Gen4 X4, Class 40 Ssd
Table 35. 1 TB SSD specifications (continued) Relative humidity range 10% to 90% Op shock 1500G Environmental non-operating conditions (non-condensing) Temperature range -40°C to 70°C Relative humidity range 5% to 95% M.2 2280, 512 GB, PCIe NVMe Gen4 x4, Class 40 SSD The following table lists the M.2 2280, 512 GB SSD specifications. -
Page 31: Power Adapter
Environmental non-operating conditions (non-condensing) Temperature range -40°C to 70°C Relative humidity range 5% to 95% Power adapter The following table lists the power adapter specifications of your Latitude 3440. Table 38. Power adapter specifications Description Values Type 60 W AC adapter, USB-C 65 W AC adapter, 4.5 mm... -
Page 32: Accessories
GS mark compliant NCTC Anti Power Surge certification NCTC Anti Lightning Strike certification Accessories The following table lists the supported accessories on your Latitude 3440. Table 39. Accessories Accessories Audio: Dell Pro Stereo Headset Adapters: Dell 7-in-1 USB-C Multiport Adapter Carrying case: ●... -
Page 33: Security
Security Software security The following table lists the software security details of your Latitude 3440. Table 40. Software security Security options McAfee Generic Build 30-day Commercial (optional) McAfee Generic Build 30-day Commercial Japan (optional) McAfee Generic Build 12-month Commercial... -
Page 34: Thermal Specifications
Dell Client Command Suite. In-Band management meaning that the Operating System is functional and the device is connected to a network so that it can be managed. The Dell Client Command Suite of tools can be leveraged individually or with a systems management console like SCCM, LANDESK, KACE, etc. -
Page 35: Out Of Band Systems Management
Dell Command | vPro Out of Band console extends hardware management to systems that are offline or have an un- reachable OS (Dell exclusive features). Dell Command | Integration Suite for System Center - This suite integrates all the key components of the Client Command Suite into Microsoft System Center Configuration Manager 2012 and Current Branch versions. -
Page 36: Chapter 4: Color, Material, And Finish
Color, material, and finish This section details the color, material, and finish (CMF) specifications of your Latitude 3440. Table 43. CMF specifications A Cover (Top) ● Plastic ● Molded ● Soft charcoal, resin ● Logo, PET, Soft charcoal, Die Cut B Cover ●... - Page 37 Table 43. CMF specifications (continued) ● Molded ● Soft charcoal, Resin ● Resin Bottom - Poly Shift Texture 23um ● Resin Side - Fine Texture 17um Color, material, and finish...
-
Page 38: Chapter 5: Keyboard Shortcuts Of Latitude 3440
Keyboard shortcuts of Latitude 3440 NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations. Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. - Page 39 Fn + Shift + B Calls unobtrusive mode NOTE: The key sequence will call unobtrusive mode. The hotkey sequence will be disabled by default to prevent accidental actuation. You may enable through BIOS setup option. Keyboard shortcuts of Latitude 3440...
-
Page 40: Chapter 6: Getting Help And Contacting Dell
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 46. Self-help resources Self-help resources Resource location Information about Dell products and services www.dell.com Tips Contact Support In Windows search, type Contact Support, and press Enter.
